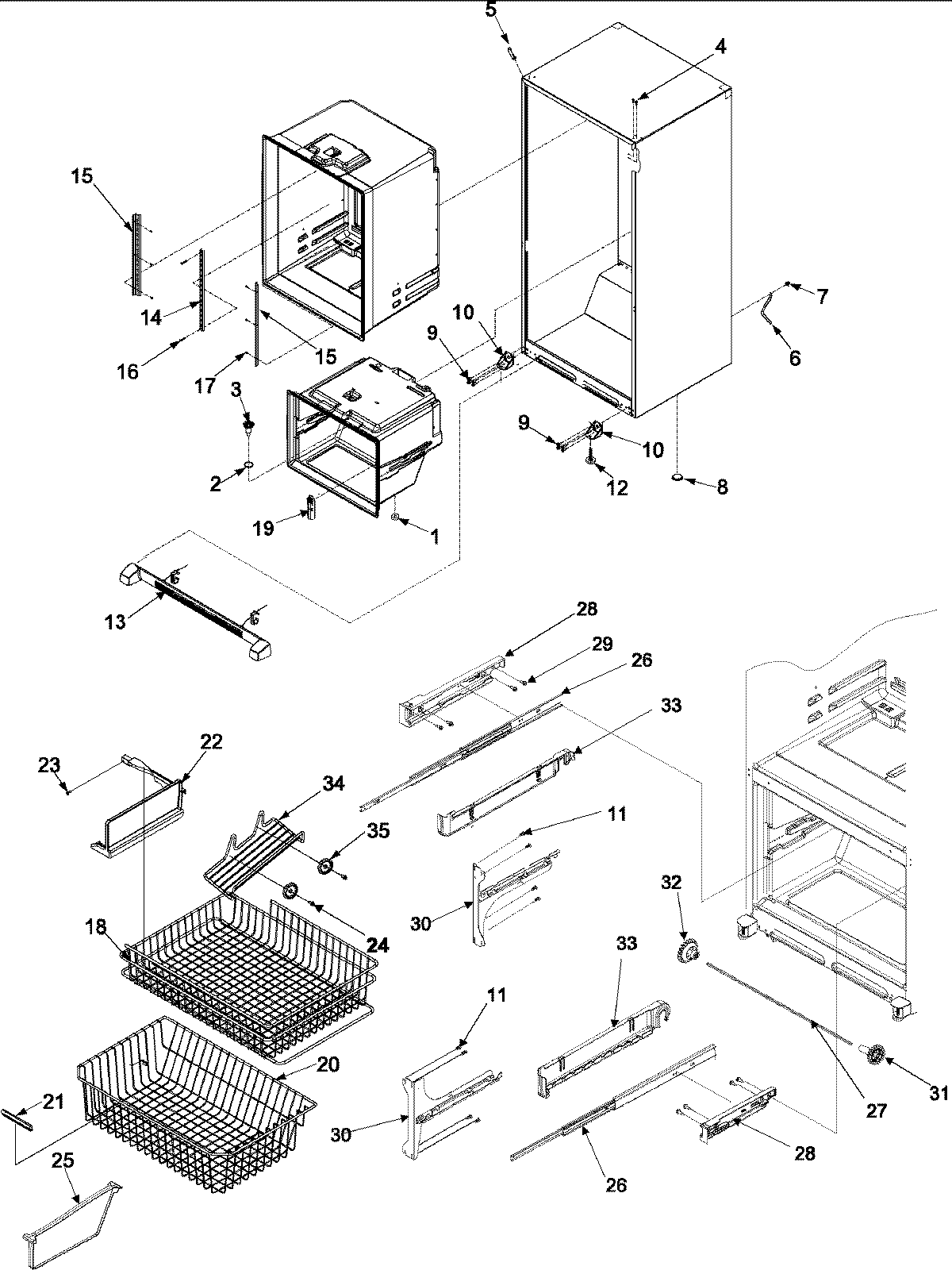

ABB2522FES 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67006491
1012906303WD Whirlpool Refrigerator Bracket
11Screw (8)
12W11177593 Whirlpool Leveling Feet
13Clip, Grille
13WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
1867004987 Whirlpool Refrigerator Upper Basket
19WP67003924 Whirlpool Refrigerator Cover
20WPW10503184 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24WPW10280613 Whirlpool Refrigerator Bracket
24WPW10280608 Whirlpool Refrigerator Bracket
25Divider, Lower Basket
26W11658402 Whirlpool Drawer Slide Rail
27W11028221 Whirlpool Refrigerator Shaft
28MAY 12002500
29Screw (6)
30BRACKET, DRAWER SLIDE (LT)
30BRACKET, DRAWER SLIDE (RT)
31GEAR (LT)
32GEAR (RT)
33MAY M0230919
34WP10972101 Whirlpool Refrigerator Spacer
35Rack, Ice
