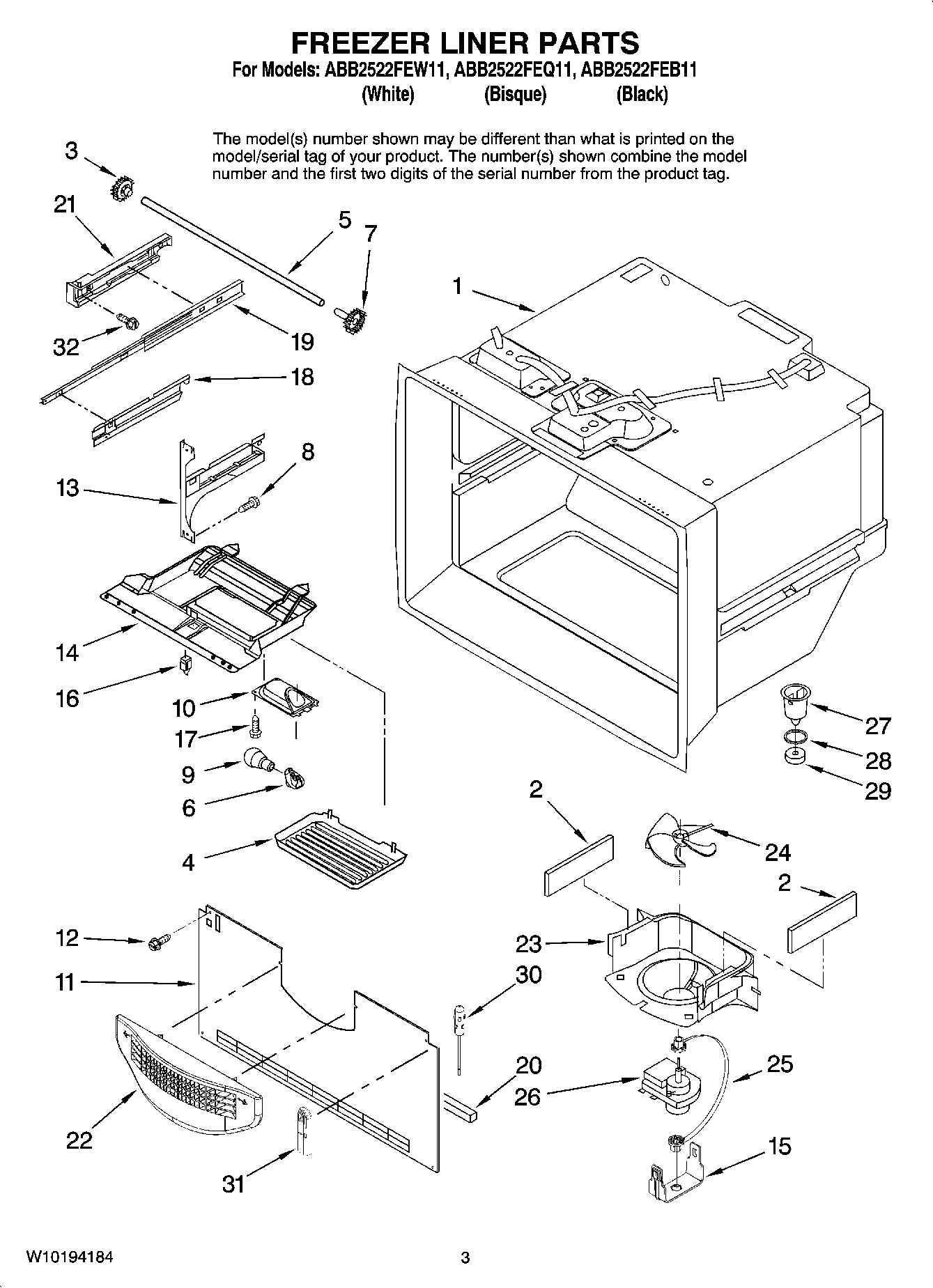

ABB2522FEW11 02 – FREEZER LINER PARTS

Products

Position	Product
	MAY 67006095
2	W10856123 Whirlpool Refrigerator Gasket
4	MAY 67003905
5	W11028221 Whirlpool Refrigerator Shaft
6	Socket, Light (2)
7	12002497 Whirlpool Refrigerator Drawer Gear Kit
8	Screw (8)
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY 67005873
12	Screw (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	67003906 Whirlpool Refrigerator Control Module
15	Clip, Motor
16	MAY 67005653
17	MAY 67006530
18	Bracket, Basket (Left)
18	Bracket, Basket (Right)
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10128119
21	MAY W10128118
22	MAY W10175909
23	SHROUD, EVAP FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	WPW10128551 Whirlpool Evaporator Fan Motor
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	WP67003924 Whirlpool Refrigerator Cover
32	Screw (6)
