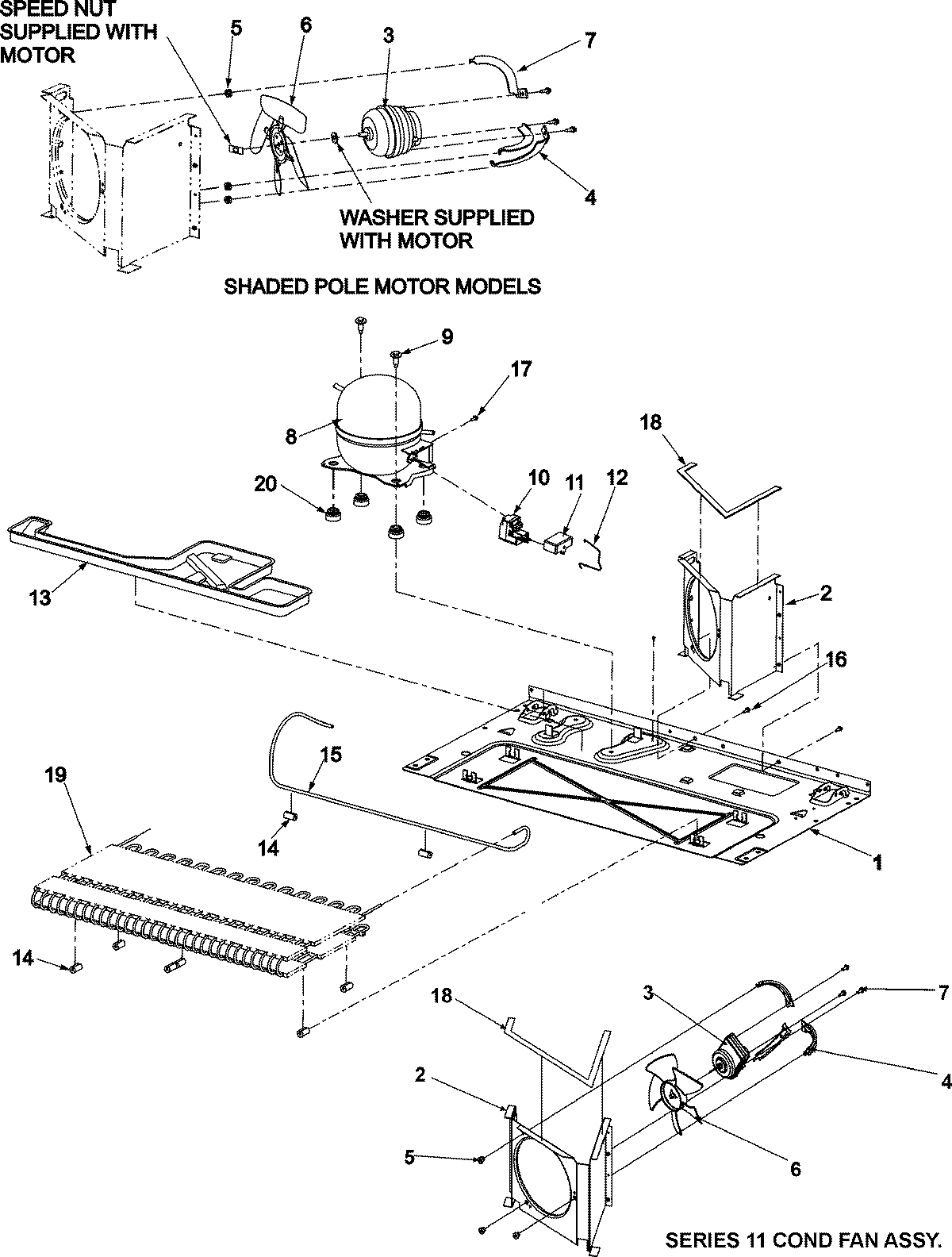

ABB2524DEB 02 – COMPRESSOR

Products

PositionProduct
NIMAY 67003823
1MAY 67001089
2SHROUD, CONDENSER FAN
3MAY 67004432
3833697 Whirlpool Condenser Fan Motor
4Bracket, Motor (3)
4MAY 67004953
5GROMMET, BRACKET
6W10156818 Whirlpool Refrigerator Fan Blade
6WP12587601 Whirlpool Refrigerator Condenser Blade
7Screw (3)
8W10160407 Whirlpool Refrigerator Compressor
9MAY 67003790
10W10613606 Whirlpool Refrigerator Start Device Relay Overload
11CAPACITOR
12MAY 12576801
13WP12579803 Whirlpool Refrigerator Drain Pan
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67002494
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
19MAY 67003195
2067003493 Whirlpool Refrigerator Compressor Grommet
