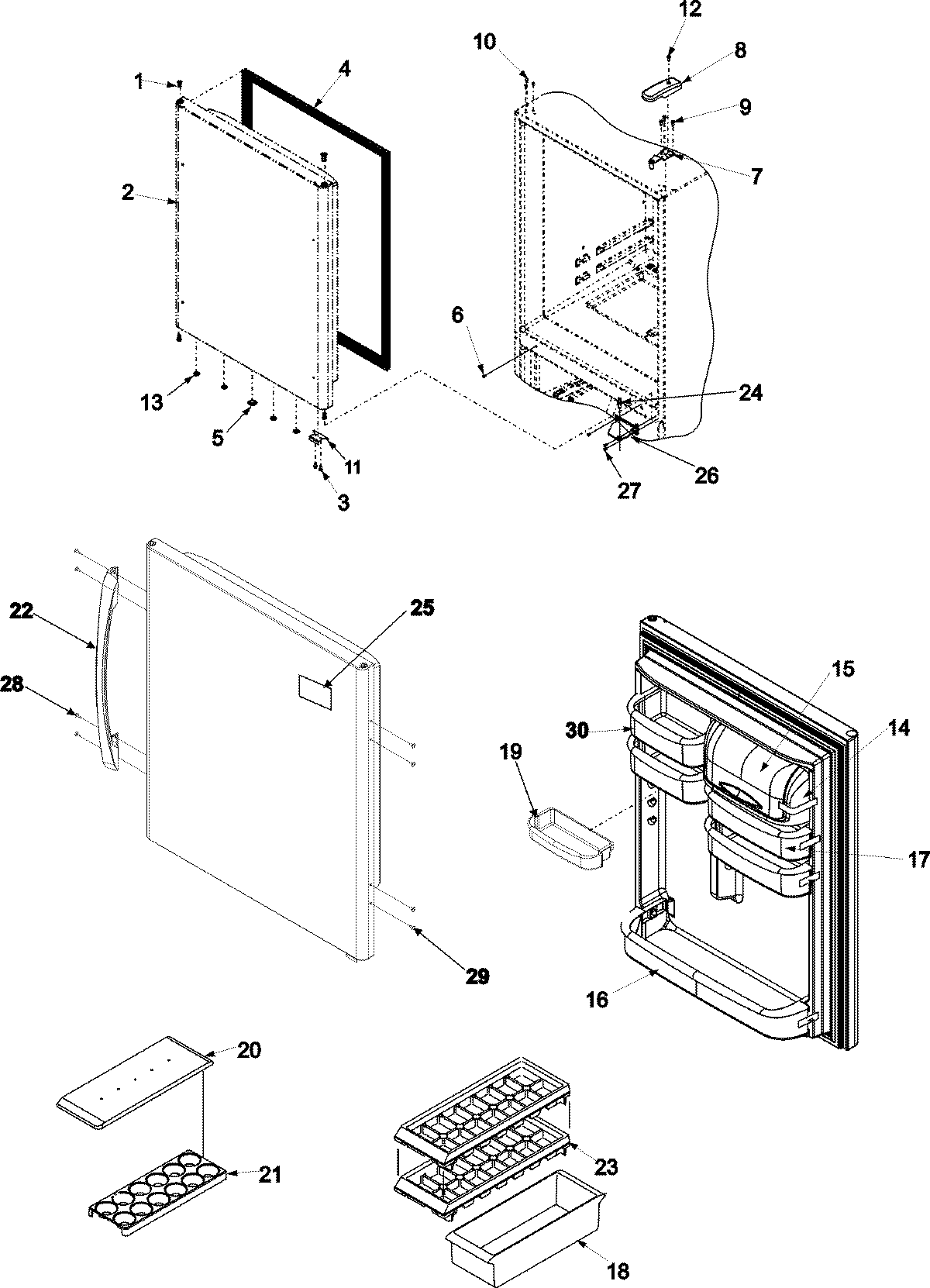

ABB2524DES 08 – REFRIGERATOR DOOR

ABB2524DES 08 – REFRIGERATOR DOOR

Written by

in

ABB2524DES 08 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2MAY 67004506
3MAY M0211533
4W10849442 Whirlpool Refrigerator FIP Gasket
5MAY A3080001
6WP489349 Whirlpool Refrigerator Screw
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9MAY M0238731
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP8281196 Whirlpool Screw
1367004838 Whirlpool Refrigerator Button Vent Plug
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16Retainer, Ref Door
17WPW10324005 Whirlpool Refrigerator Cantilever Bin
18MAY 10423131
19MAY 67004634
20MAY 10436404
21MAY 10436506
22MAY 67004450
23MAY 67001205
24WP67006642 Whirlpool Refrigerator Pin
25Y12528501 Whirlpool Refrigerator Nameplate
26WP12607103WD Whirlpool Refrigerator Center Hinge
26WP12607104ED Whirlpool Refrigerator Door Hinge
27MAY M0226233
29WP12246610 Whirlpool Refrigerator Handle Plug
30BUCKET, LRG REF DOOR
