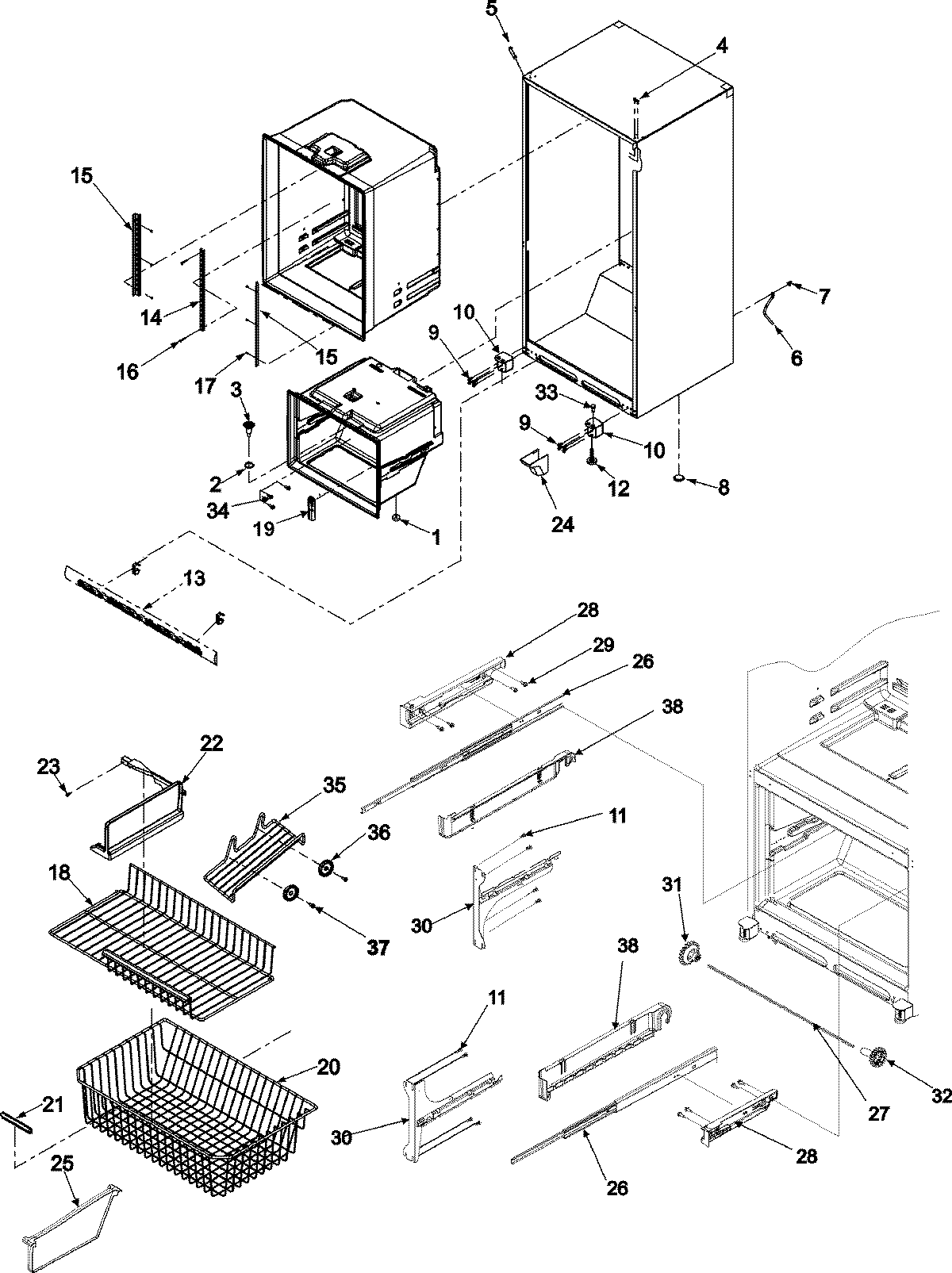

ABB2524DEW 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10HINGE, BOTTOM E-CT (WHT)
11MAY M0211018
12MAY 10354001
13TOE GRILLE ASSY (WHT)
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16MAY M0231425
17SCREW, SM
18MAY 67002765
19WP67003924 Whirlpool Refrigerator Cover
20WPW10503184 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24MAY 12561901W
25MAY 67004064
26MAY 67004065
27W11028221 Whirlpool Refrigerator Shaft
28AMAY 67004217
28MAY 67004218
29SCREW 1“
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31MAY 67004215
32GEAR (RT)
33PLUG, BUTTON
34WP489069 Whirlpool Compactor Screw
35Rack, Ice
36WP10972101 Whirlpool Refrigerator Spacer
37MAY M0230919
38WPW10280613 Whirlpool Refrigerator Bracket
38AWPW10280608 Whirlpool Refrigerator Bracket
