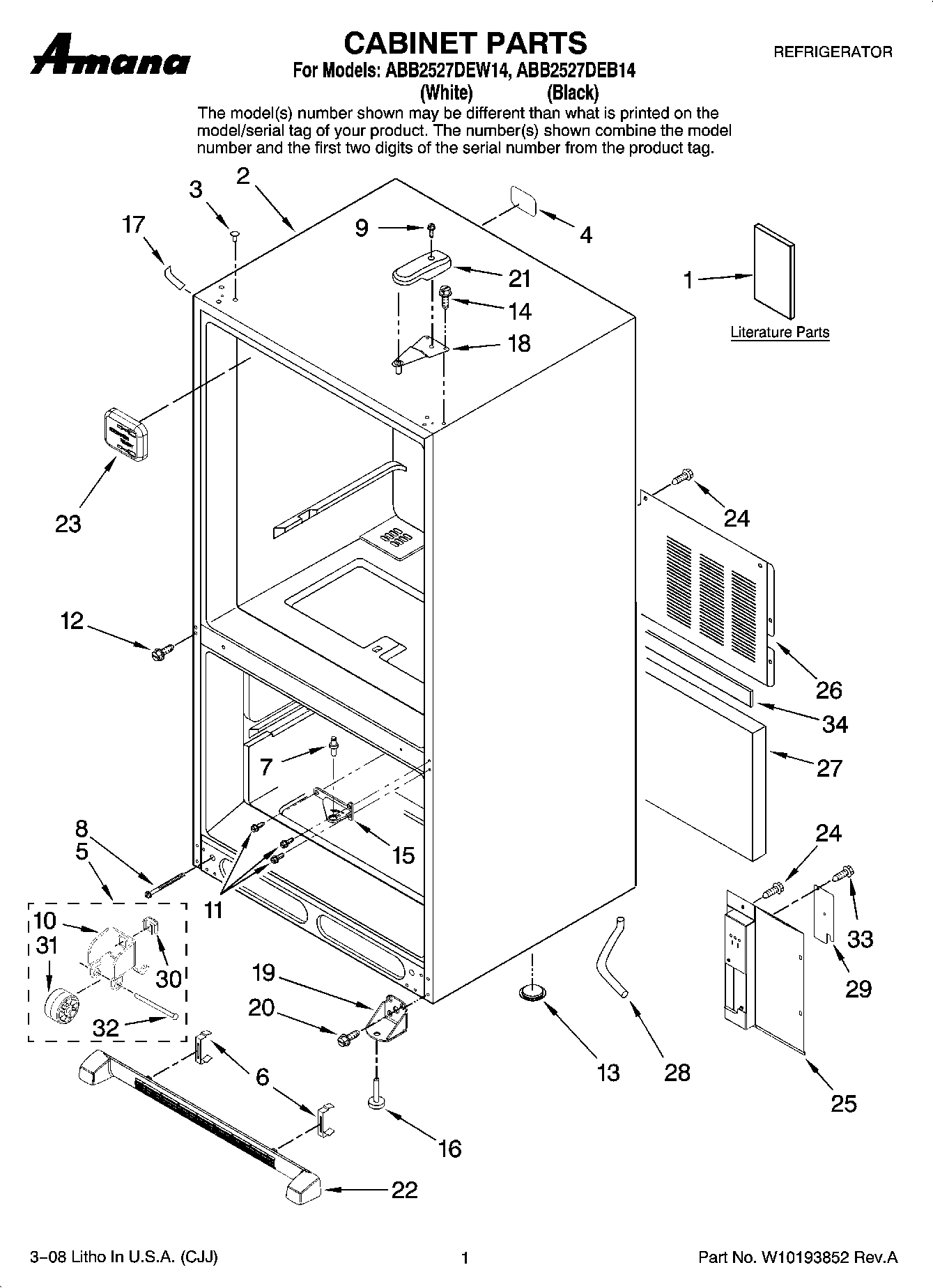

ABB2527DEB14 01 – CABINET PARTS

ABB2527DEB14 01 – CABINET PARTS

Written by

in

ABB2527DEB14 01 – CABINET PARTS

Products

PositionProduct
1MAY W10123894
1MAY W10137539
1SHEET, TECH DATA
3WP12246608 Whirlpool Refrigerator Button
3WP67001130 Whirlpool Refrigerator White Button Plug
4MAY 67005064
5Roller Assy.(Rear)
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607103WD Whirlpool Refrigerator Center Hinge
15WP12607104ED Whirlpool Refrigerator Door Hinge
16W11177593 Whirlpool Leveling Feet
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
18Hinge, Top
1912906303WD Whirlpool Refrigerator Bracket
20MAY 67006564
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
22WPW10534154 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
24Screw (10)
25MAY 12479803
26MAY 67006101
2767003796 Whirlpool Refrigerator Fiber Acoustic
28MAY W10164397
29MAY 12479901
30MAY M0286708
31WP10450603 Whirlpool Refrigerator Roller
32MAY M1205302
33SCREW
34Gasket
