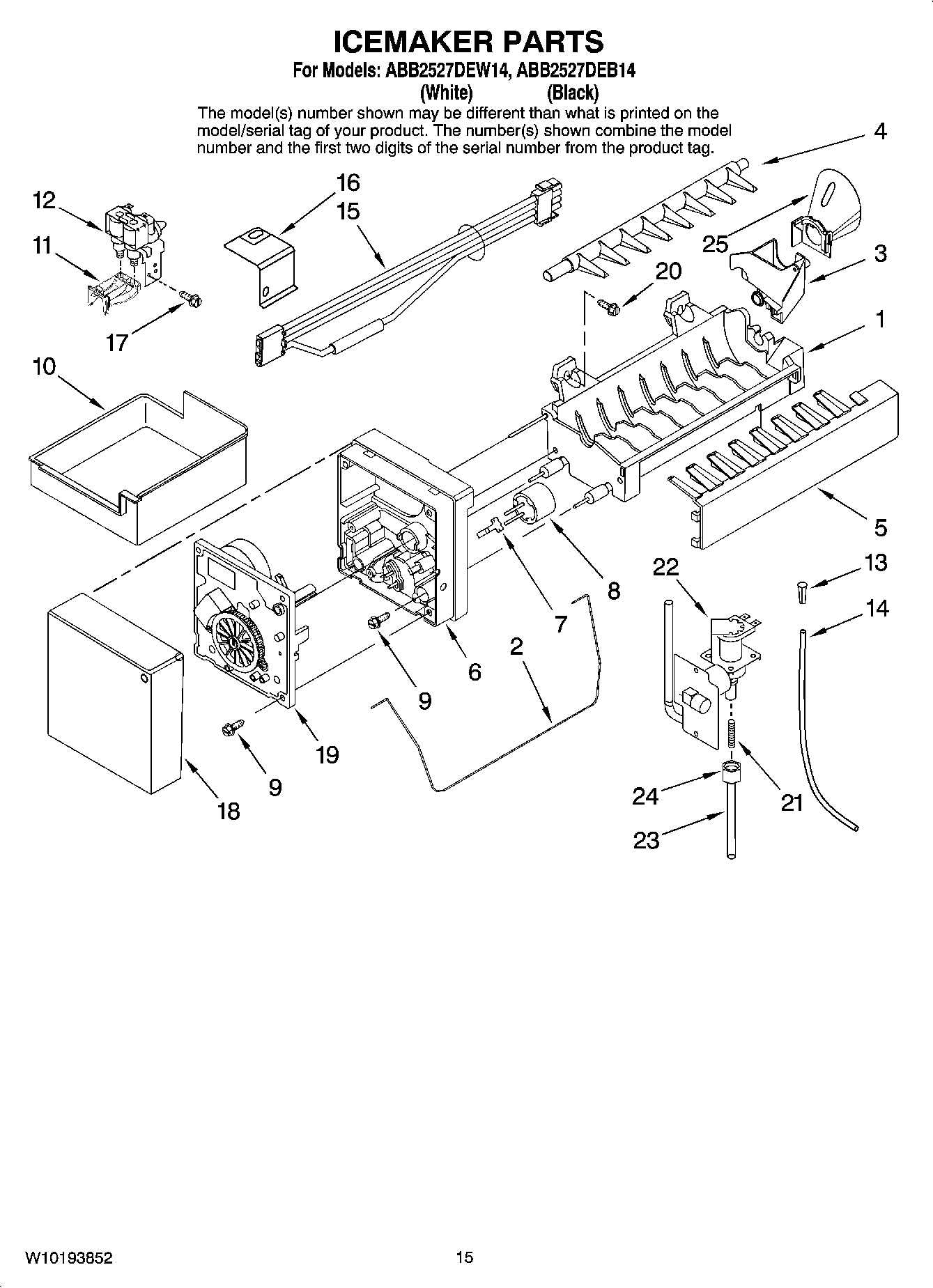

ABB2527DEB14 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	MAY 503695
	MAY 479502
	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
	MAY 542638
	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
	PAINT, SPRAY (WHITE PRIMER)
	STAINLESS STEEL CLEANER & POLISH
	MAY 505587
	MAY 542639
	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	Complete Ice Maker
	MAY 833938
	Kit, Evaporator Repair (Aluminum Epoxy)
	SEALER, GUM (4 FEET)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	PAINT, BULK (1 QT. WHITE (UNCUT))
	MAY 1117510
2	ARM-SHUT
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
9	SCREW
10	WP67001255 Whirlpool Ice Bucket
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67006531 Whirlpool Water Inlet Valve
13	MAY A3223101
14	Tubing, Plastic
15	HARNESS, ICEMAKER
16	BRACKET, MODULE & HEATER
17	MAY 67006662
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP98165 Whirlpool Screw
21	SPRING, ANTI KINK
22	WP67003753 Whirlpool Refrigerator Inlet Valve
23	MAY B5705323
24	NUT, SLEEVE
25	MAY 67005603
