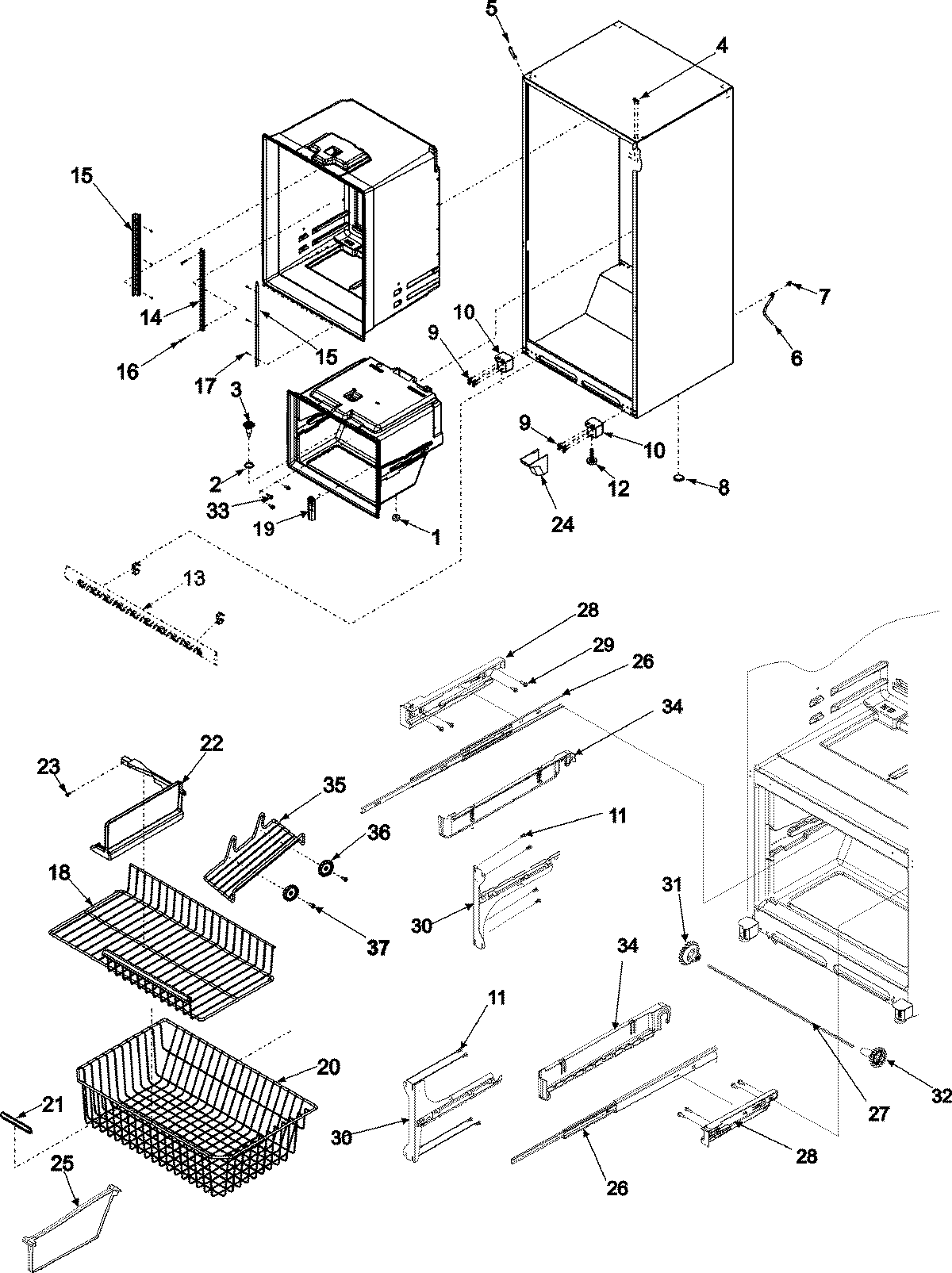

ABB2527DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

ABB2527DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABB2527DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
5MAY 67003486
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
10HINGE, BOTTOM E-CT (WHT)
11MAY M0211018
12MAY 10354001
13MAY 67002390
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16MAY M0231425
17SCREW, SM
18MAY 67002765
19WP67003924 Whirlpool Refrigerator Cover
20WPW10503184 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24MAY 12561901C
25MAY 67004064
26MAY 67004065
27W11028221 Whirlpool Refrigerator Shaft
28AMAY 67004218
28MAY 67004217
29SCREW 1“
30BRACKET, DRAWER SLIDE (LT)
30BRACKET, DRAWER SLIDE (RT)
31MAY 67004215
32GEAR (RT)
33WP489069 Whirlpool Compactor Screw
34AWPW10280613 Whirlpool Refrigerator Bracket
34WPW10280608 Whirlpool Refrigerator Bracket
35Rack, Ice
36WP10972101 Whirlpool Refrigerator Spacer
37MAY M0230919
