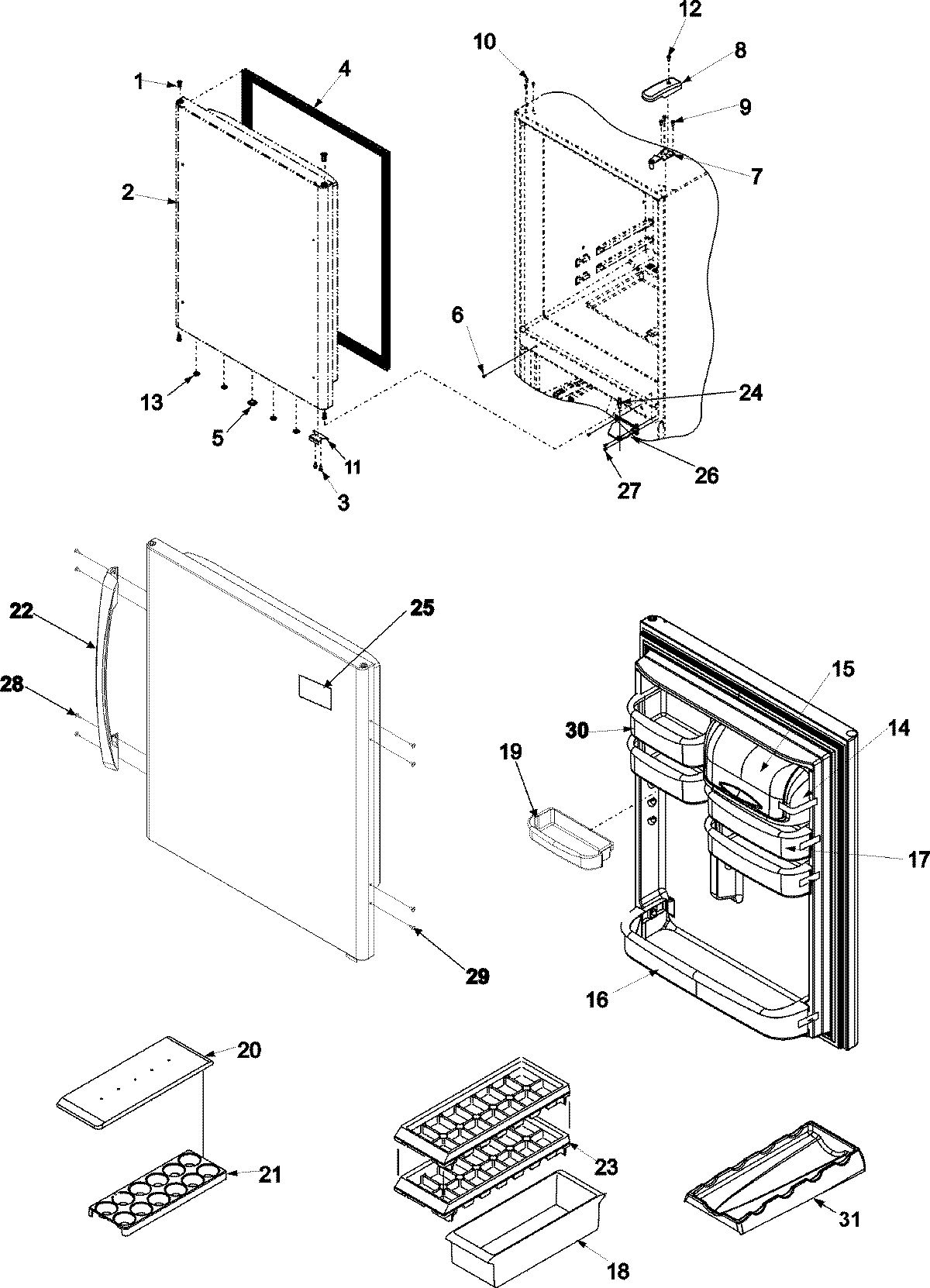

ABB2527DEQ 08 – REFRIGERATOR DOOR

ABB2527DEQ 08 – REFRIGERATOR DOOR

Written by

in

ABB2527DEQ 08 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
212658531CQ Whirlpool Refrigerator DOR-FIP Board
3MAY M0211533
4W10443317 Whirlpool Refrigerator FIP Gasket
5MAY A3080002
6WP489349 Whirlpool Refrigerator Screw
7WP12566606ED Whirlpool Refrigerator Door Hinge
8MAY 67001013
9MAY M0238731
10MAY M0310738
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16Retainer, Ref Door
17WPW10371193 Whirlpool Refrigerator Door Bin
17GRIPPER, BUCKET
18MAY 10423131
19MAY 67004634
20MAY 10436404
21MAY 10436506
22MAY 67003962
23MAY 67001205
24WP67006642 Whirlpool Refrigerator Pin
25Y12528501 Whirlpool Refrigerator Nameplate
26WP12607103WD Whirlpool Refrigerator Center Hinge
27MAY M0226233
2867004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
29MAY 12246604
30MAY 67003213
30MAY 67003769
3167001656 Whirlpool Refrigerator Bottle Trivet
