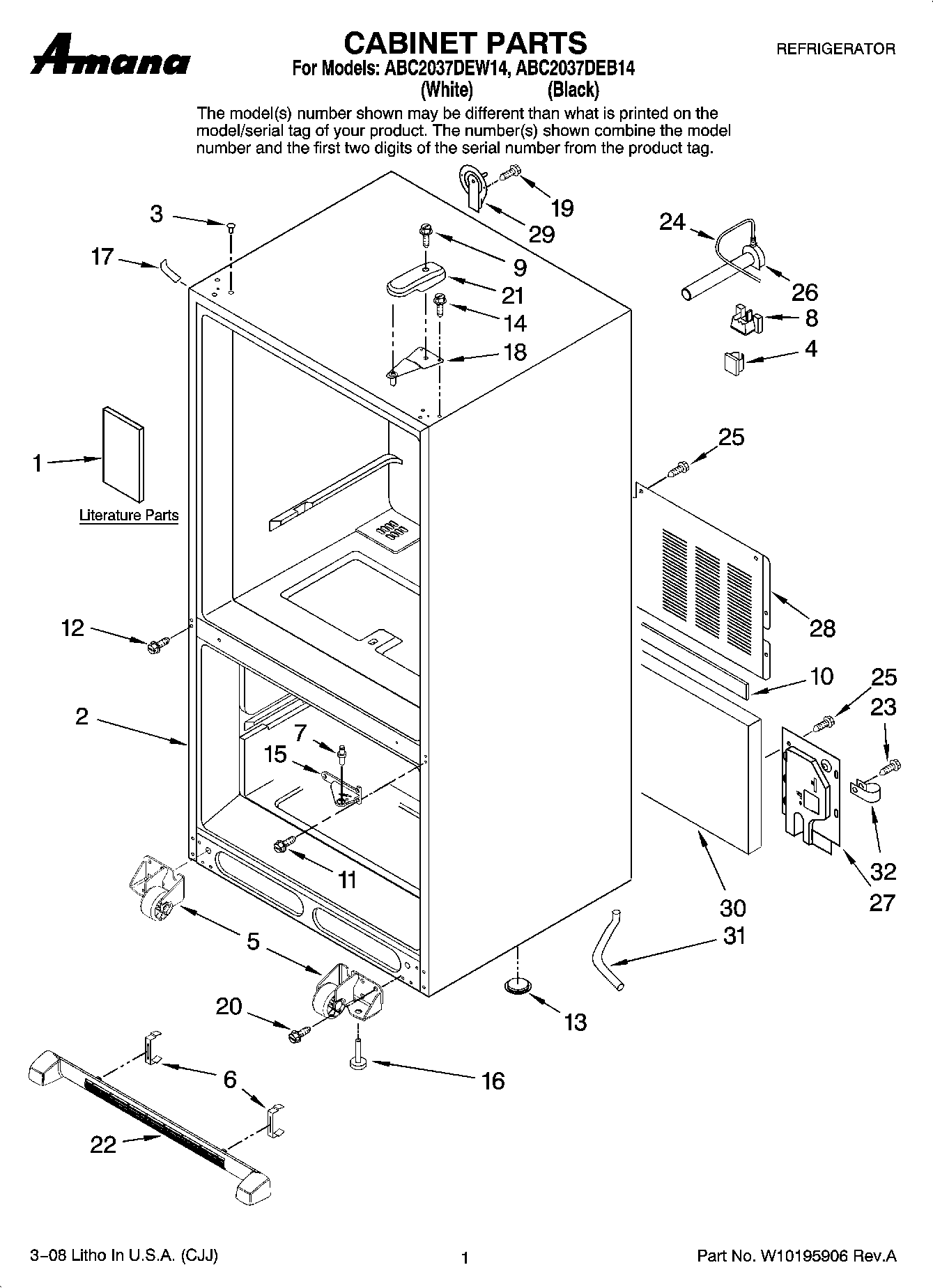

ABC2037DEB14 01 – CABINET PARTS

Products

Position	Product
1	MAY W10137539
1	SHEET, TECH DATA
1	TAG, ENERGY
3	WP12246608 Whirlpool Refrigerator Button
3	WP67001130 Whirlpool Refrigerator White Button Plug
4	67002816 Whirlpool Refrigerator Waterline Clip
5	ROLLER ASSY.(FRONT) (RIGHT)
5	ROLLER ASSY.(FRONT) (LEFT)
6	Clip, Grille
7	WP67006642 Whirlpool Refrigerator Pin
8	WP12777701 Whirlpool Refrigerator Filler Block
9	WP8281196 Whirlpool Screw
10	Gasket
11	WP67006380 Whirlpool Screw
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
15	WP12607103WD Whirlpool Refrigerator Center Hinge
16	Brake, Foot
17	67003484 Whirlpool Refrigerator White Corner Cover
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	Hinge, Top
19	WP98165 Whirlpool Screw
20	MAY 67006564
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	Grille Assembly (Includes Clips) (Black)
22	MAY W10131133
23	SCREW
24	Tubing, Plastic
25	Screw (10)
26	MAY W10137519
27	MAY 67004098
28	MAY 67006101
29	COVER, WATER LINE
30	67003796 Whirlpool Refrigerator Fiber Acoustic
31	MAY W10164397
32	MAY W10157973
