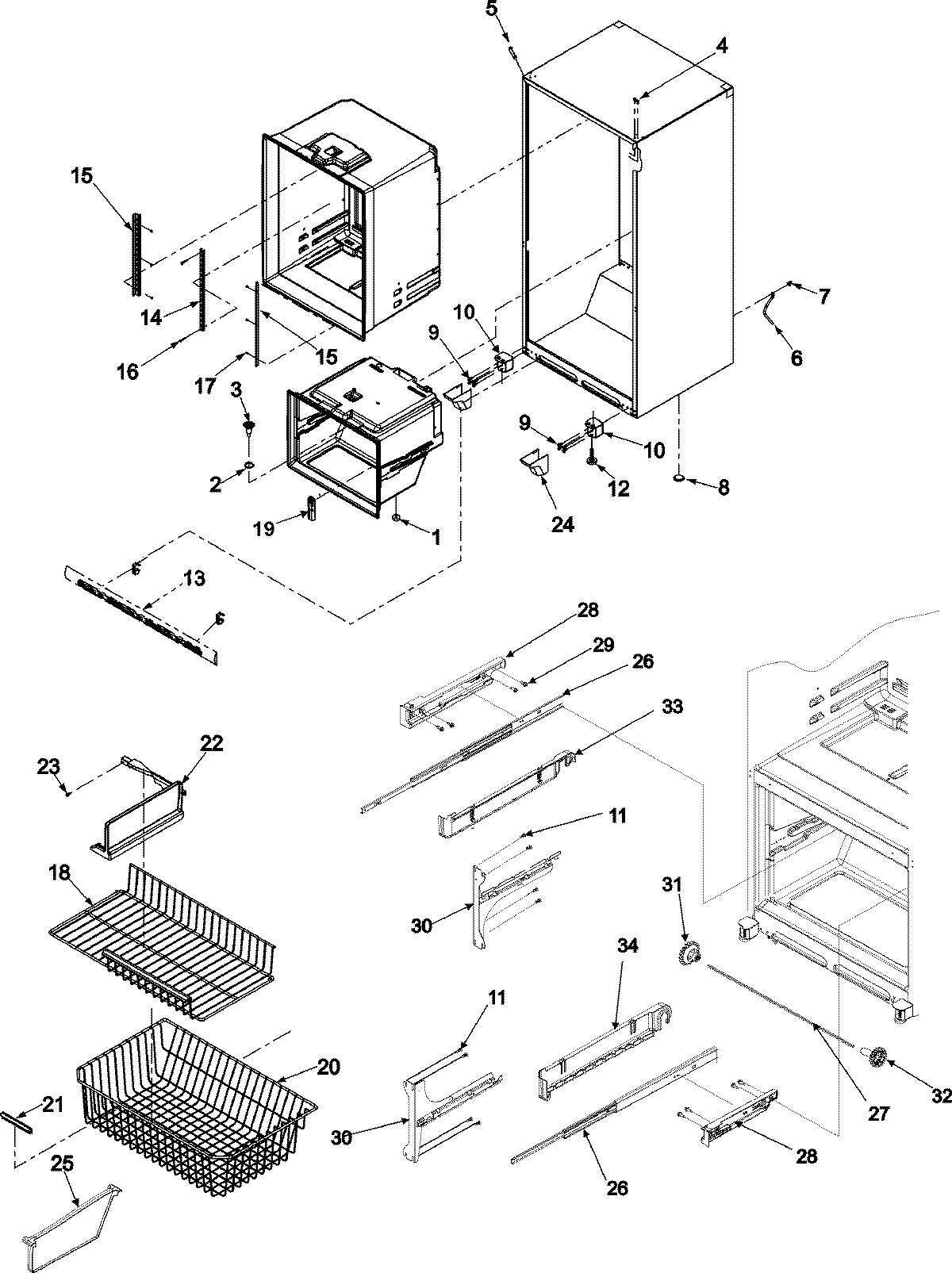

ABC2037DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

ABC2037DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABC2037DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
5MAY 67003486
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
9MAY 67006564
1012906303WD Whirlpool Refrigerator Bracket
10HINGE, BOTTOM E-CT (WHT)
11MAY M0211018
12MAY 10354001
13MAY 67002390
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16W10709795 Whirlpool Refrigerator Screw
16MAY M0231425
17SCREW, SM
17MAY 67006400
18MAY 67002975
19MAY 67004610
20W10503185 Whirlpool Dishwasher Cutlery Basket
21MAY 67004814
22Divider, Upper Basket
23MAY 67006608
23MAY 67001310
24MAY 12561901C
25DIVIDER, BASKET (LWR)
26MAY 67004758
26MAY 67006913
28AMAY 67004730
28MAY 67004731
29SCREW 1“
29Screw (6)
30WPW10330991 Whirlpool Refrigerator Bracket
30WPW10330993 Whirlpool Refrigerator Bracket
31MAY 67004216
32MAY 67004215
33MAY 67004728
34W10251557 Whirlpool Refrigerator Bracket
