ABC2037DEQ 08 – REFRIGERATOR DOOR

ABC2037DEQ 08 – REFRIGERATOR DOOR

Written by

in

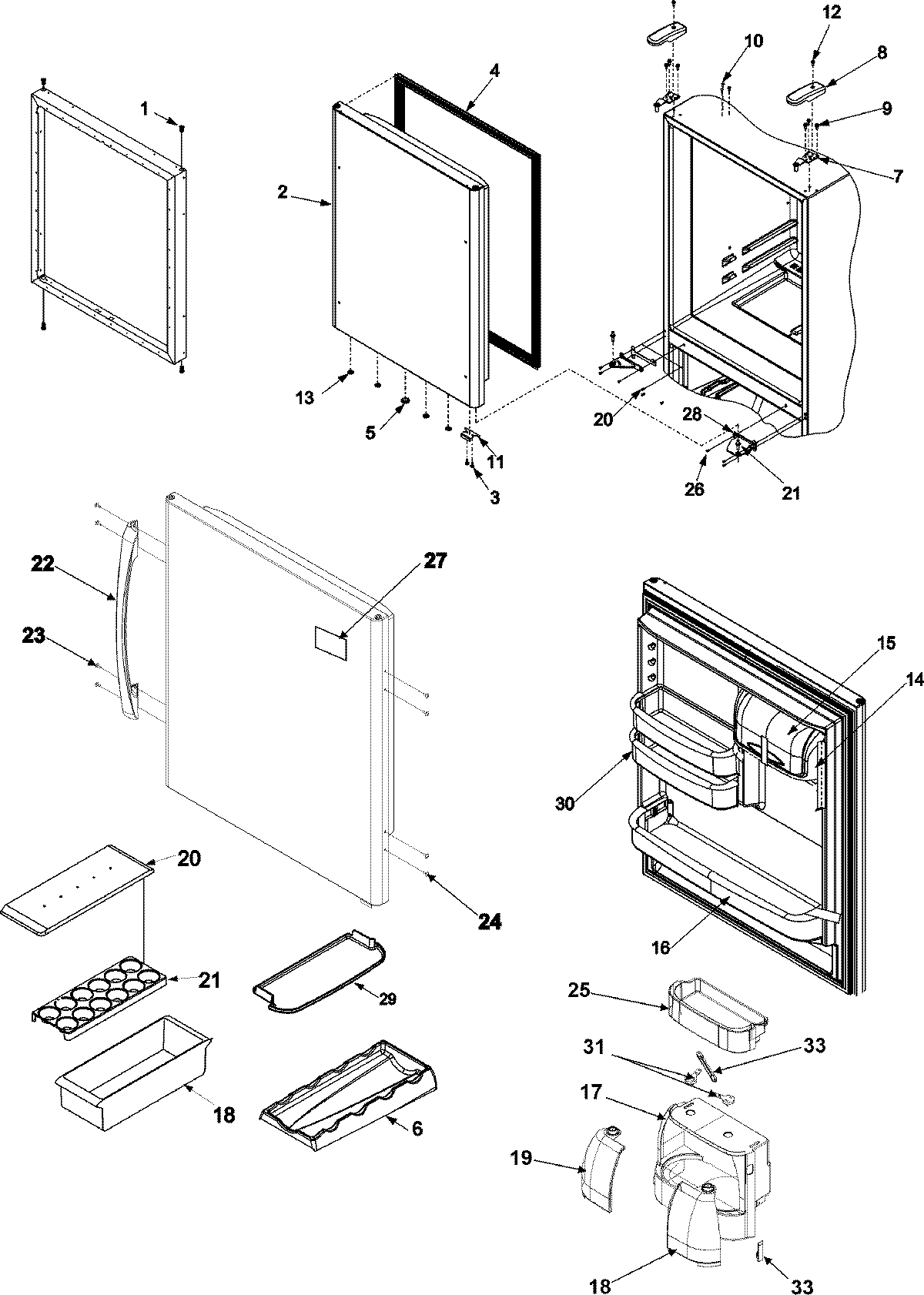

ABC2037DEQ 08 – REFRIGERATOR DOOR

Products

PositionProduct
NIMAY 67004601
NIMAY 10423131
NIMAY 10436404
NIMAY 10436506
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2MAY 67005261
3WP98165 Whirlpool Screw
3MAY M0211533
4W10443317 Whirlpool Refrigerator FIP Gasket
5MAY A3080002
667001656 Whirlpool Refrigerator Bottle Trivet
7WP12566606ED Whirlpool Refrigerator Door Hinge
8MAY 67001013
9MAY M0238731
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310729
1167003781 Whirlpool Refrigerator Door Stop (BSQ)
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16MAY 67004717
17MAY 67004720
18MAY 67004598
19MAY 67004599
21WP67006642 Whirlpool Refrigerator Pin
22MAY 67003962
22WP67007126 Whirlpool Refrigerator Handle Clip
2367004707 Whirlpool Refrigerator Hi Torque Screw (BSQ)
23WP12992902 Whirlpool Refrigerator Screw
24MAY 12246604
26MAY M0226233
27Y12528501 Whirlpool Refrigerator Nameplate
28WP12607103WD Whirlpool Refrigerator Center Hinge
29MAY 67003213
30BUCKET, LRG REF DOOR
31Linkage, Chiller (4)
33MAY 67004602
