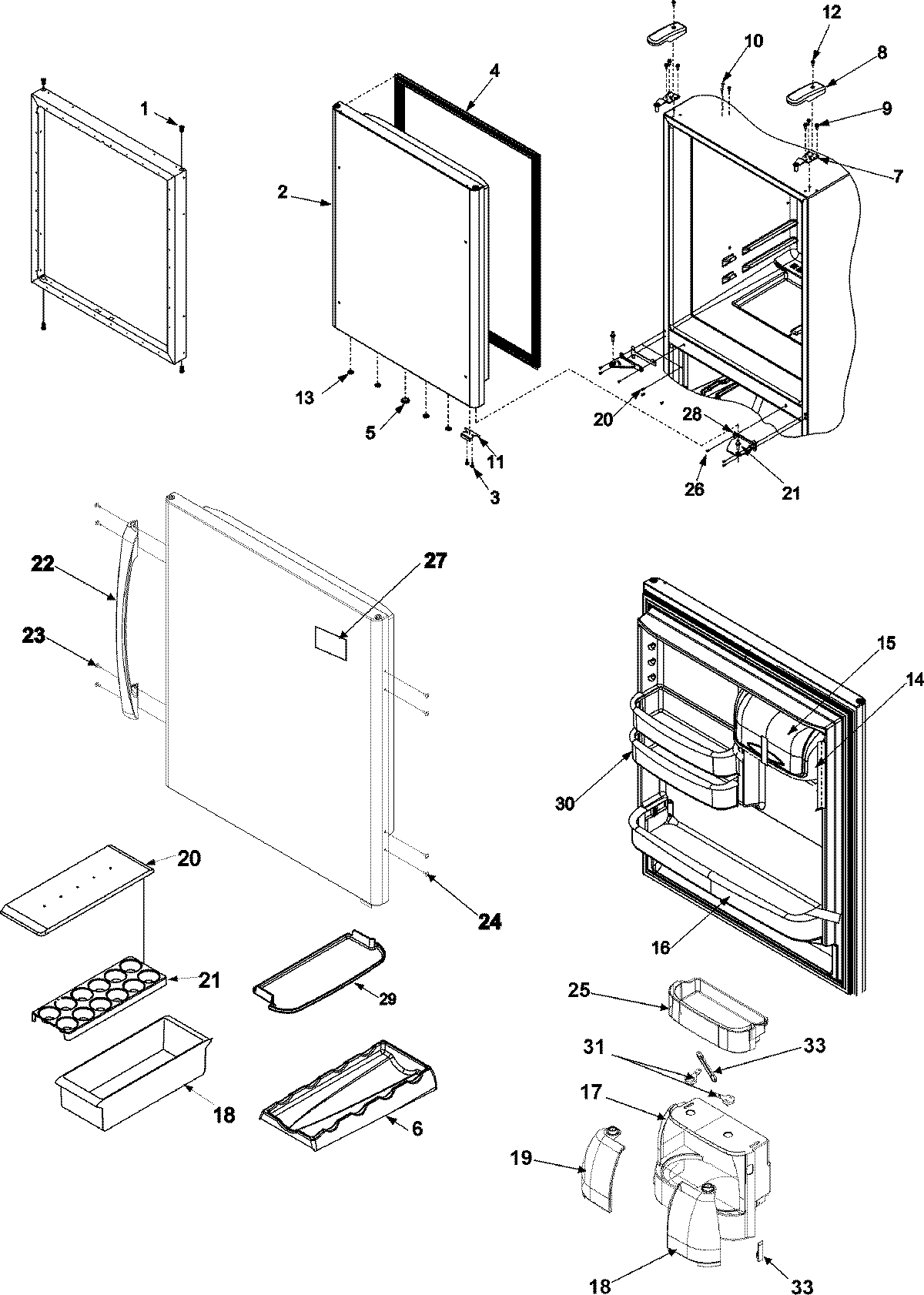

ABC2037DES 08 – REFRIGERATOR DOOR

Products

Position	Product
NI	MAY 10423131
NI	MAY 10436404
NI	MAY 10436506
1	67004978 Whirlpool Refrigerator Black Door Bushing
2	MAY 67004712
3	MAY M0211533
3	WP98165 Whirlpool Screw
4	W10849442 Whirlpool Refrigerator FIP Gasket
5	MAY A3080001
6	67001656 Whirlpool Refrigerator Bottle Trivet
7	WP12566606ED Whirlpool Refrigerator Door Hinge
8	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9	MAY M0238731
9	WP489349 Whirlpool Refrigerator Screw
10	MAY M0310731
11	W11708403 Whirlpool Door Stop
12	WP8281196 Whirlpool Screw
13	67004838 Whirlpool Refrigerator Button Vent Plug
14	WP67001279 Whirlpool Refrigerator Dairy Tray
15	WP12744905 Whirlpool Refrigerator Compressor Door
16	MAY 67004717
17	MAY 67004720
18	MAY 67004598
19	MAY 67004599
21	WP67006642 Whirlpool Refrigerator Pin
22	WP67007126 Whirlpool Refrigerator Handle Clip
22	MAY 67004450
23	67006806 Whirlpool Refrigerator Screw HI Torque Black
23	WP12992902 Whirlpool Refrigerator Screw
23	MAY 67004706
24	WP12246610 Whirlpool Refrigerator Handle Plug
24	WP12246608 Whirlpool Refrigerator Button
26	MAY M0226233
27	Y12528501 Whirlpool Refrigerator Nameplate
28	WP12607104ED Whirlpool Refrigerator Door Hinge
29	MAY 67003213
30	BUCKET, LRG REF DOOR
31	Linkage, Chiller (4)
32	MAY 67004601
33	MAY 67004602
