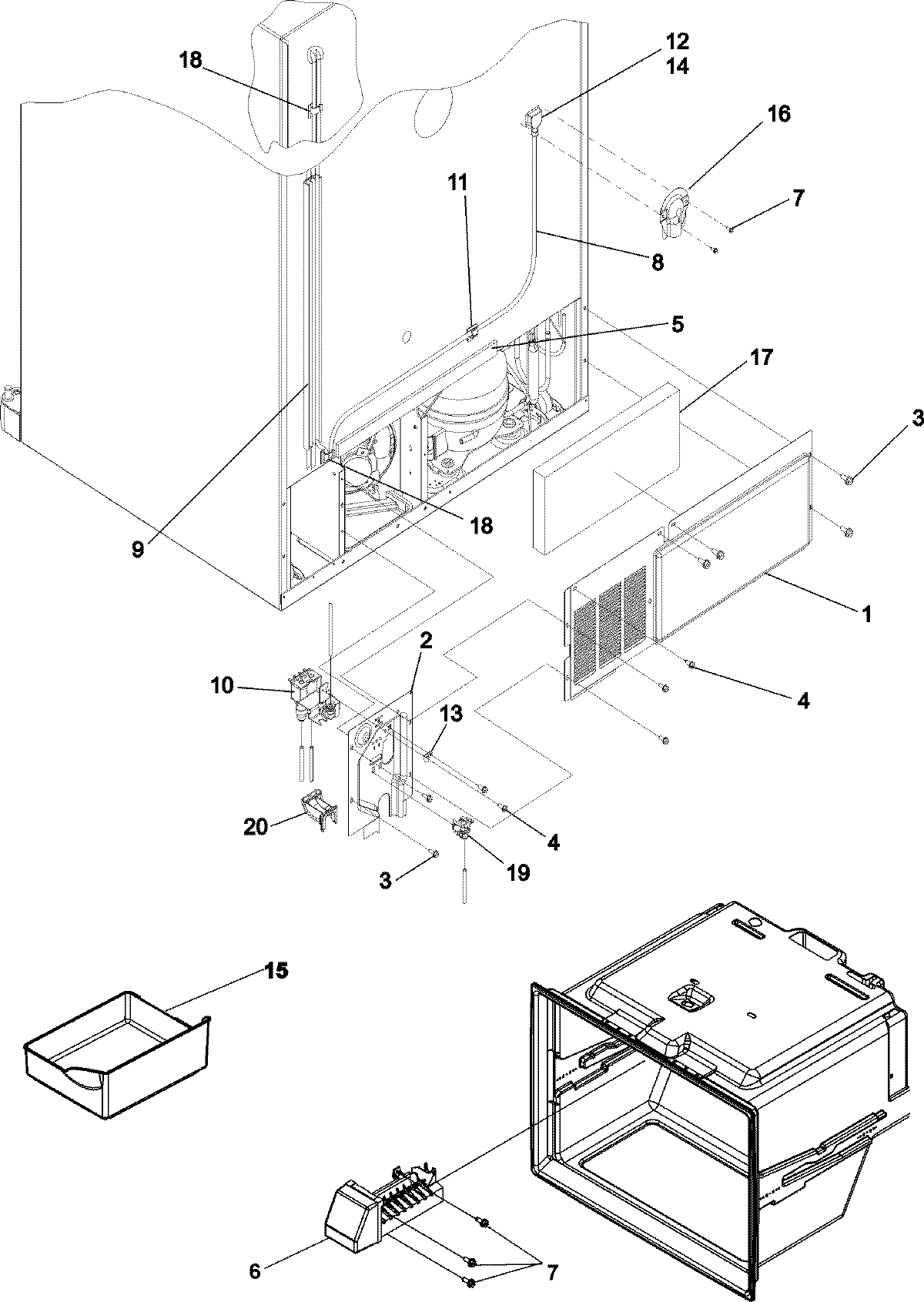

ABC2037DEW 01 – CABINET BACK

Products

PositionProduct
NIWP67006506 Whirlpool Refrigerator Power Cord
1MAY 67006101
1BACK, MACH COMP
2MAY 67004735
2MAY 67004098
3Screw (10)
3MAY M0238616
4WP98165 Whirlpool Screw
4681390 Whirlpool Refrigerator Screw
5Gasket
6D7824706Q Whirlpool Refrigerator Ice Maker Assembly
6WPD7813010 Whirlpool Refrigerator Wire Harness
6WPW10289690 Whirlpool Ice Maker Cover
6ARM-SHUT
7WP90767 Whirlpool Screw
7MAY 67004822
8MAY A3223101
8Tubing, Plastic
9TRACK, WATERLINE
10WP67006531 Whirlpool Water Inlet Valve
10WP67005154 Whirlpool Water Valve
11WPM0104106 Whirlpool Refrigerator Clip
12Clip
13W10833902 Whirlpool Refrigerator Clamp
14W11181718 Whirlpool Refrigerator Water Tube
15WP67001255 Whirlpool Ice Bucket
16COVER, WATER LINE
1767003796 Whirlpool Refrigerator Fiber Acoustic
18MAY M0104102
19MAY 67004100
1967002816 Whirlpool Refrigerator Waterline Clip
2012831101 Whirlpool Refrigerator Tube Clamp
