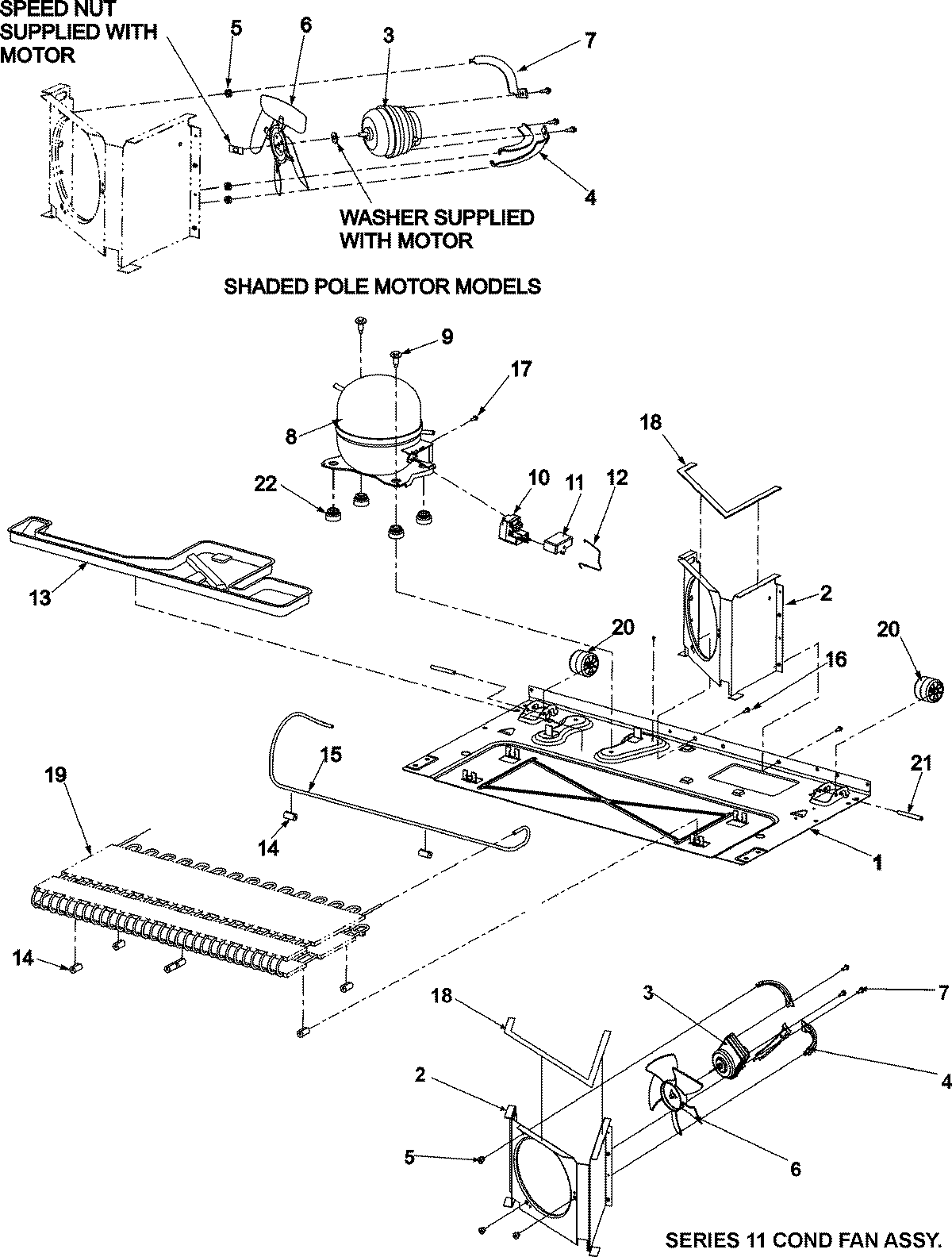

ABC2037DEW 02 – COMPRESSOR

Products

Position	Product
NI	MAY 67004734
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY 67001512
2	MAY 12687101
2	SHROUD, CONDENSER FAN
3	MAY 12628701
3	MAY 67004432
4	MAY 67003644
4	MAY 67004953
5	WP486692 Whirlpool Refrigerator Nut
6	W10156818 Whirlpool Refrigerator Fan Blade
6	WP12587601 Whirlpool Refrigerator Condenser Blade
7	Screw (3)
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY 67006432
9	MAY M0221523
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	Capacitor
11	CAPACITOR
12	MAY 67007052
12	MAY 12576801
13	WP12579803 Whirlpool Refrigerator Drain Pan
13	MAY 67004744
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
16	MAY M0238616
16	Screw (10)
17	MAY M0231604
17	MAY 67006433
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
20	MAY 10450602
21	67006434 Whirlpool Axle Pin
22	67003493 Whirlpool Refrigerator Compressor Grommet
