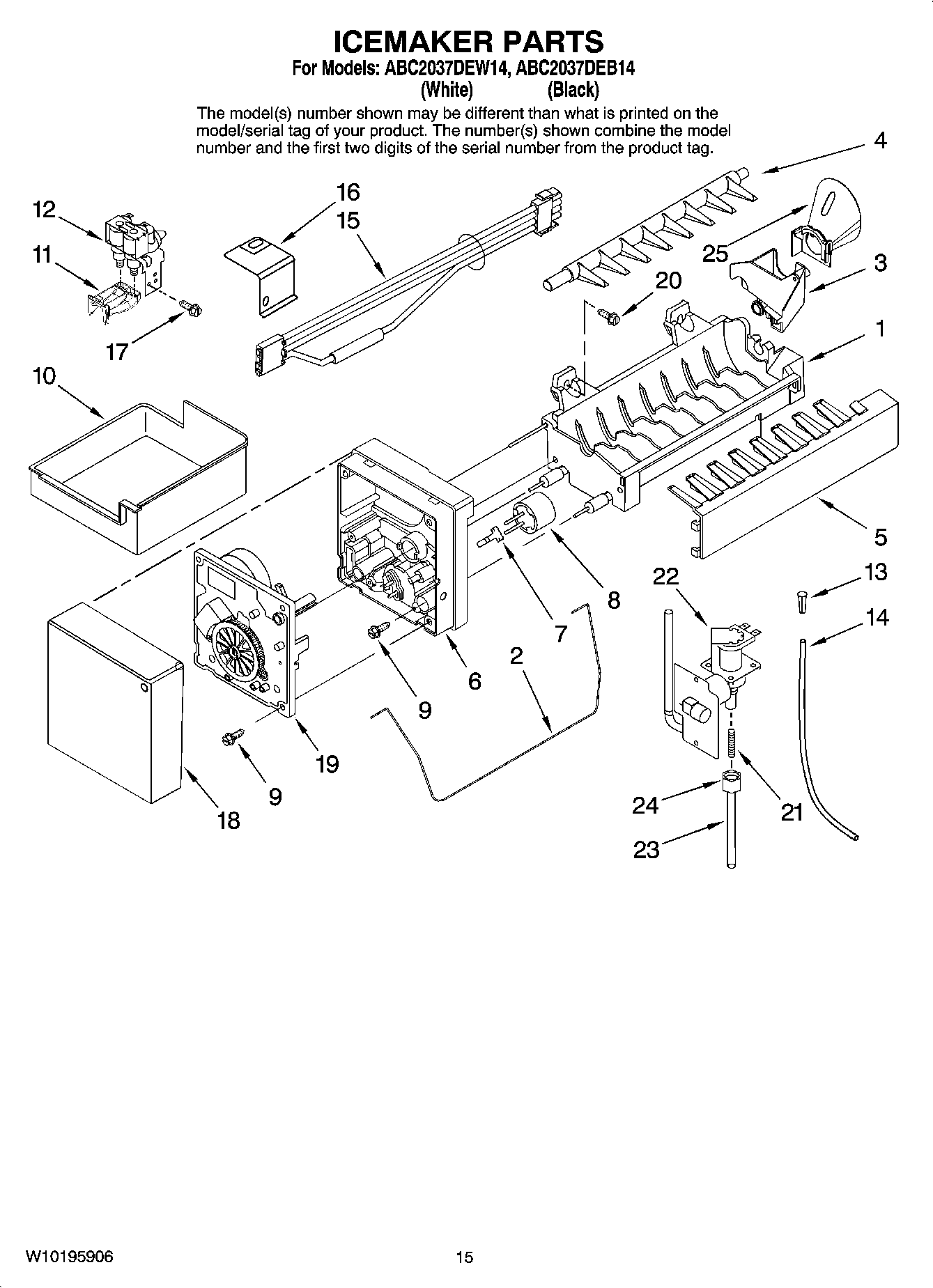

ABC2037DEW14 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ABC2037DEW14 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ABC2037DEW14 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
STAINLESS STEEL CLEANER & POLISH
PAINT, SPRAY (WHITE PRIMER)
MAY 542638
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
MAY 479502
MAY 503695
MAY 505587
PAINT, BULK (1 QT. WHITE (UNCUT))
Refinishing Material (Enamel, Black (1 Qt. Uncut))
MAY 833938
Kit, Evaporator Repair (Aluminum Epoxy)
MAY 542639
SEALER, GUM (4 FEET)
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. BLACK)
MAY 1117510
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
9SCREW
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13MAY A3223101
14Tubing, Plastic
15HARNESS, ICEMAKER
16BRACKET, MODULE & HEATER
17MAY 67006662
18WPW10289690 Whirlpool Ice Maker Cover
20WP98165 Whirlpool Screw
21SPRING, ANTI KINK
22WP67003753 Whirlpool Refrigerator Inlet Valve
23MAY B5705323
24NUT, SLEEVE
25MAY 67005603
100Complete Ice Maker
