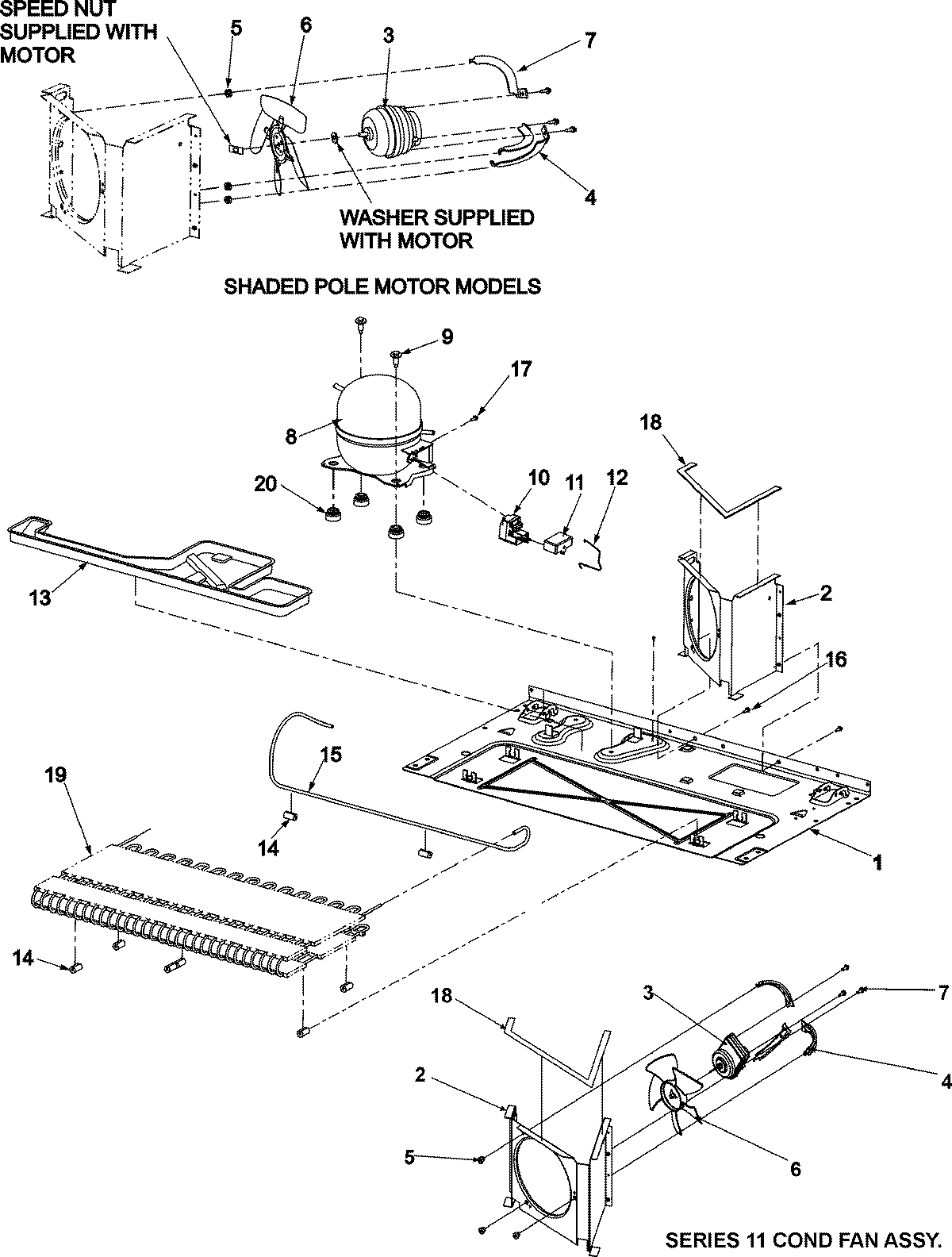

ABC2037DPS 02 – COMPRESSOR

Products

Position	Product
NI	MAY 67004734
NI	67004955 Whirlpool Refrigerator MC Harness
1	MAY 67001512
1	MAY 67005889
2	SHROUD, CONDENSER FAN
2	MAY 12687101
3	MAY 12628701
3	MAY 67004432
4	MAY 67004953
4	MAY 67003644
5	WP486692 Whirlpool Refrigerator Nut
6	WP12587601 Whirlpool Refrigerator Condenser Blade
6	W10156818 Whirlpool Refrigerator Fan Blade
8	W10160407 Whirlpool Refrigerator Compressor
9	MAY M0221523
9	MAY 67006432
10	W10613606 Whirlpool Refrigerator Start Device Relay Overload
11	CAPACITOR
11	Capacitor
12	MAY 67007052
12	MAY 12576801
13	MAY 67004744
13	WP12579803 Whirlpool Refrigerator Drain Pan
14	67005680 Whirlpool Refrigerator Condenser Grommet
15	MAY 67004700
16	Screw (10)
16	MAY M0238616
17	MAY 67006433
17	MAY M0231604
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP67006131 Whirlpool Refrigerator Condenser
20	67003493 Whirlpool Refrigerator Compressor Grommet
20	Screw (3)
