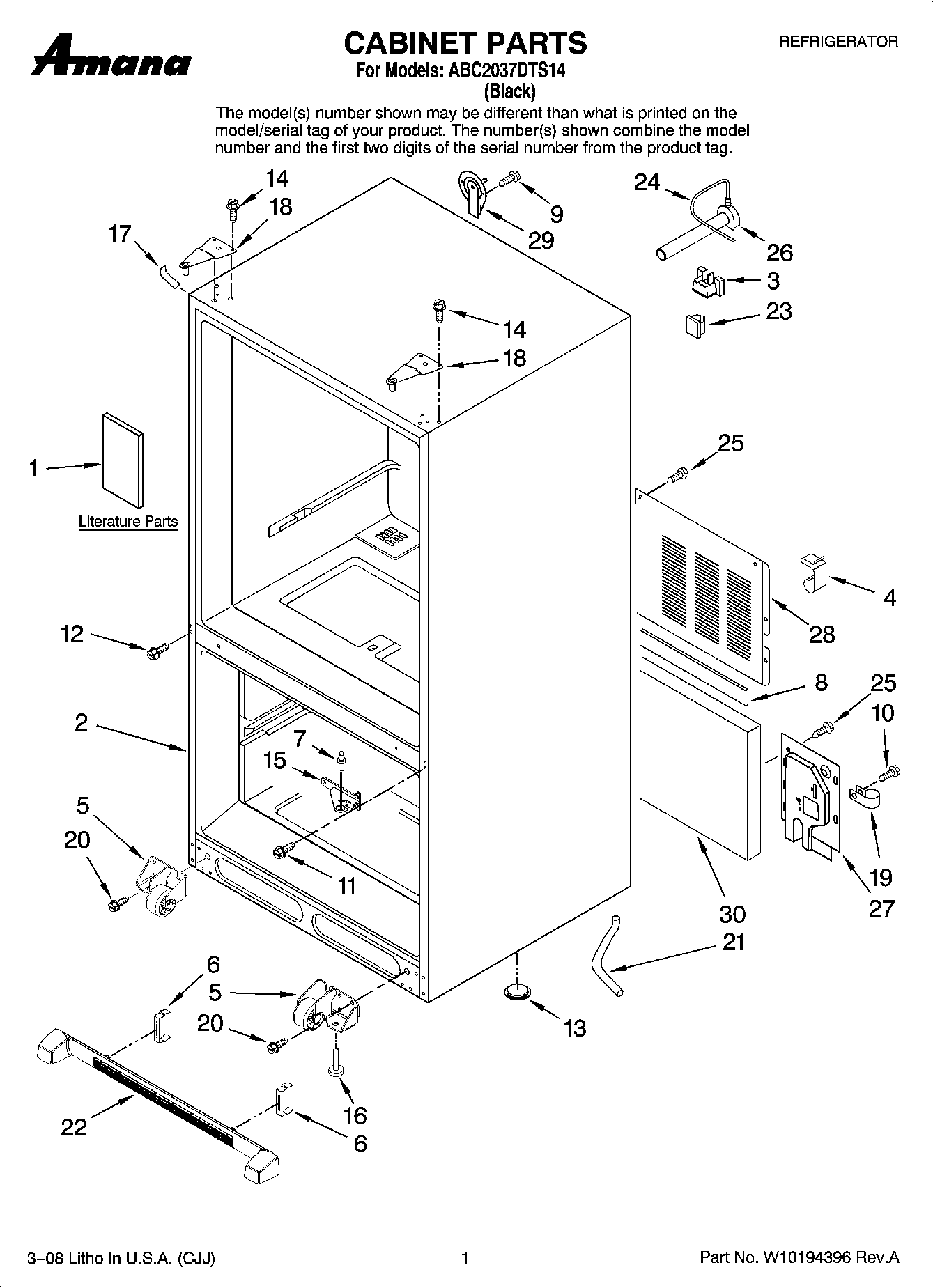

ABC2037DTS14 01 – CABINET PARTS

ABC2037DTS14 01 – CABINET PARTS

Written by

in

ABC2037DTS14 01 – CABINET PARTS

Products

PositionProduct
1MAY 67004854
1MAY W10137539
1SHEET, TECH DATA
3WP12777701 Whirlpool Refrigerator Filler Block
5ROLLER ASSY.(FRONT) (RIGHT)
5ROLLER ASSY.(FRONT) (LEFT)
6Clip, Grille
7WP67006642 Whirlpool Refrigerator Pin
8Gasket
9WP98165 Whirlpool Screw
10SCREW
11WP67006380 Whirlpool Screw
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15HINGE, CENTER (BLK)
16Brake, Foot
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18MAY 12626909ED
18Hinge, Top Right
1967001067 Whirlpool Refrigerator Drain Tube Clip
20MAY 67006564
21MAY W10164397
22Grille Assembly (Includes Clips) (Black)
2367002816 Whirlpool Refrigerator Waterline Clip
24Tubing, Plastic
25Screw (10)
26MAY W10137519
27MAY 67004098
28MAY 67006101
29COVER, WATER LINE
3067003796 Whirlpool Refrigerator Fiber Acoustic
