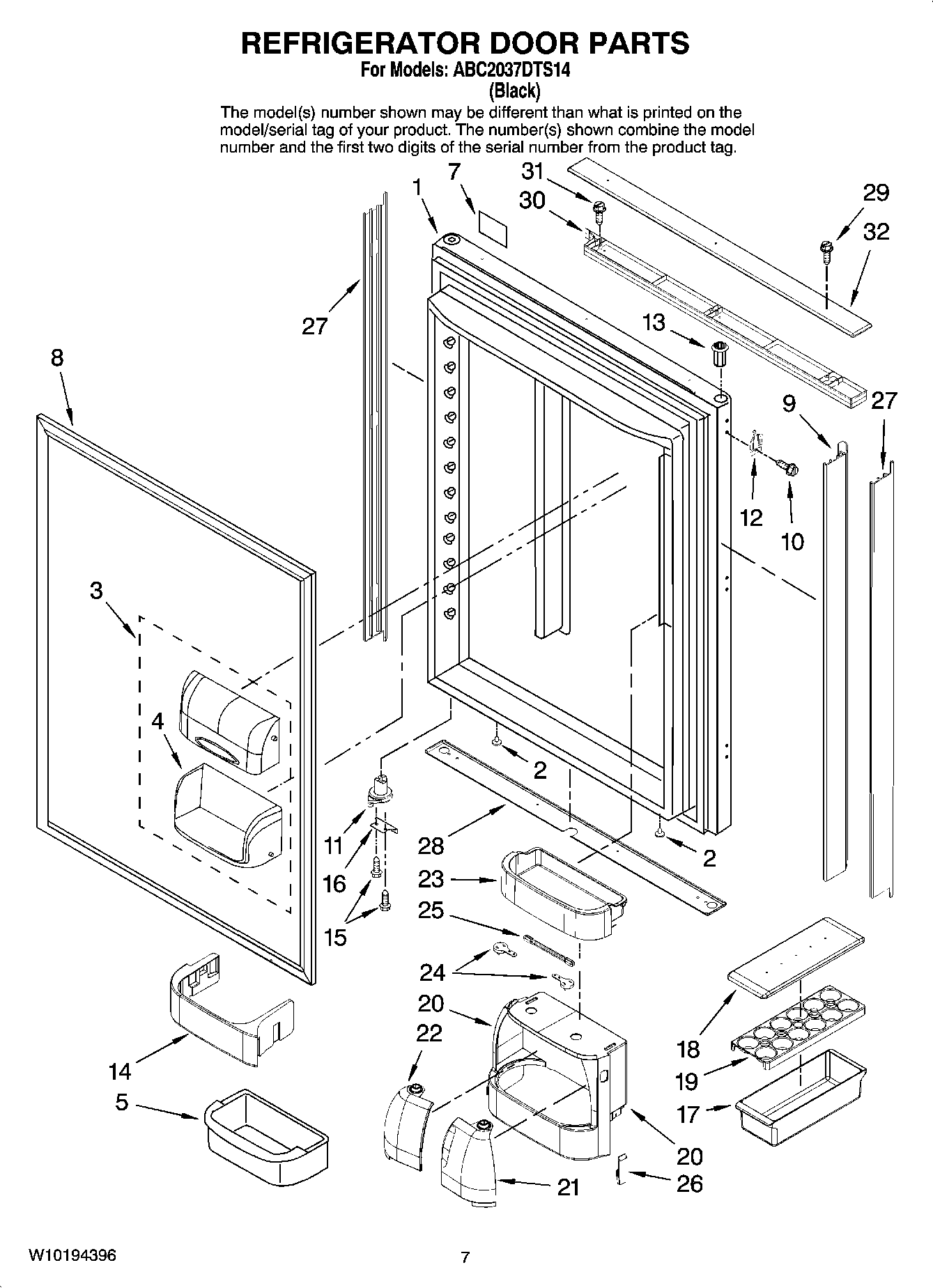

ABC2037DTS14 04 – REFRIGERATOR DOOR PARTS

ABC2037DTS14 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABC2037DTS14 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR ASSY., REF. FOAM (BLK)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5MAY 67003769
7STAINLESS
8Door Gasket, Magnetic (Black)
9HANDLE, REF DR (STNLS)
10MAY 67006767
11WP67003639 Whirlpool Refrigerator Closer
1267002451 Whirlpool Refrigerator Handle Clip Assembly
1367004978 Whirlpool Refrigerator Black Door Bushing
14MAY 67004717
15WP98165 Whirlpool Screw
16W11708403 Whirlpool Door Stop
17MAY 10423131
18MAY 10436404
19MAY 10436506
20MAY 67004720
21MAY 67004598
22MAY 67004599
23MAY 67004721
24Linkage, Chiller (4)
25MAY 67004601
26MAY 67004602
27TRIM, DOOR (LT-STNLS)
27TRIM, DOOR (RT-STNLS)
28TRIM-HORIZONTAL BTM (STNLS)
29SCREW
30EXTENSION, REF DR (BLK)
31MAY W10164192
32TRIM-HORIZONTAL TOP (STNLS)
