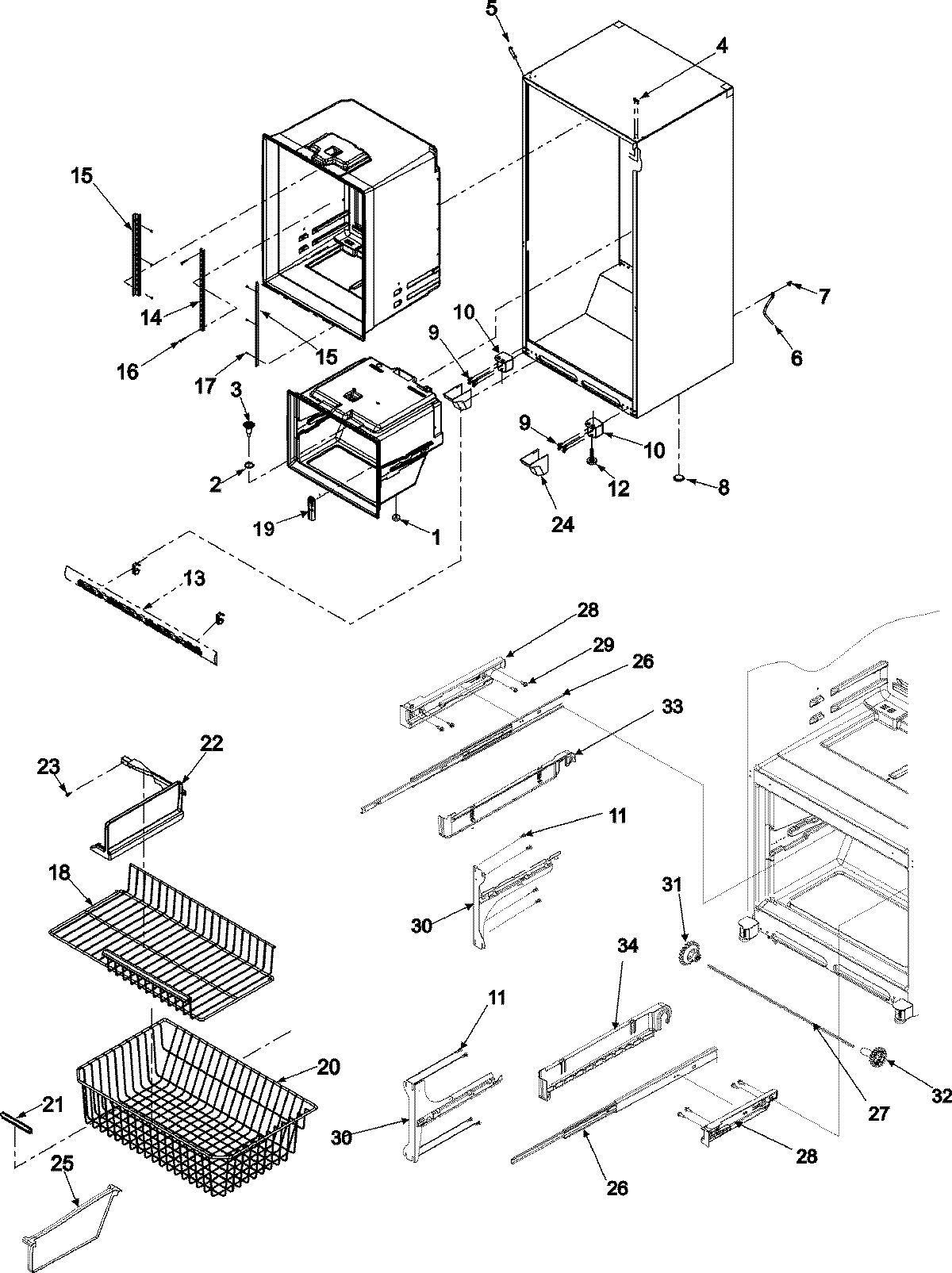

ABC2037DTW 06 – INTERIOR CABINET & FREEZER SHELVING

ABC2037DTW 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABC2037DTW 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
9MAY 67006564
10HINGE, BOTTOM E-CT (WHT)
1012906303WD Whirlpool Refrigerator Bracket
11Screw (8)
11MAY M0211018
12MAY 10354001
12W11177593 Whirlpool Leveling Feet
13TOE GRILLE ASSY (WHT)
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16MAY M0231425
16W10709795 Whirlpool Refrigerator Screw
17SCREW, SM
17MAY 67006400
18MAY 67002975
18MAY 67004988
19MAY 67004610
19COVER, CHILLER VENT
20W10503185 Whirlpool Dishwasher Cutlery Basket
20MAY 67006026
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
23MAY 67006608
24MAY 12561901W
25WPW10330993 Whirlpool Refrigerator Bracket
25WPW10330991 Whirlpool Refrigerator Bracket
26MAY 67006913
26MAY 67004758
27MAY 67004730
27MAY 67004972
27W10284690 Whirlpool Refrigerator Bracket
27MAY 67004731
28SCREW 1“
28Screw (6)
29DIVIDER, BASKET (LWR)
30GEAR (RT)
3012002497 Whirlpool Refrigerator Drawer Gear Kit
31GEAR (LT)
33W10251557 Whirlpool Refrigerator Bracket
34MAY 67004728
