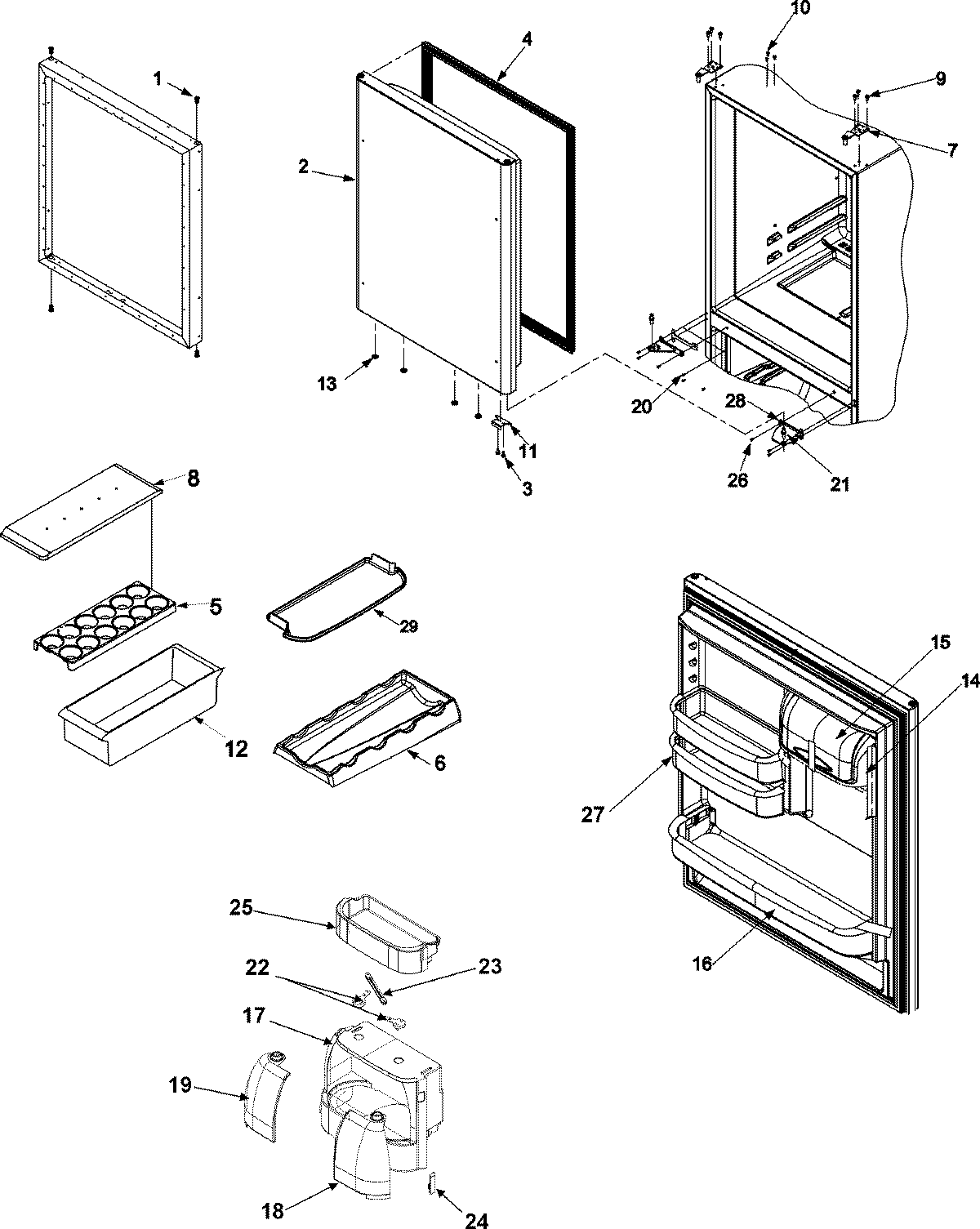

ABC2037DTW 08 – REFRIGERATOR DOOR

ABC2037DTW 08 – REFRIGERATOR DOOR

Written by

in

ABC2037DTW 08 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2MAY 67002423
3WP98165 Whirlpool Screw
3MAY M0211533
4W10443317 Whirlpool Refrigerator FIP Gasket
5MAY 10436506
667001656 Whirlpool Refrigerator Bottle Trivet
7MAY 67002520
7MAY 67002519
712626910ED Whirlpool Refrigerator Door Hinge
7HINGE, TOP (LT-BLK)
8MAY 10436404
9MAY M0238731
9WP489349 Whirlpool Refrigerator Screw
10WP12246608 Whirlpool Refrigerator Button
10MAY M0310729
1112968202W Whirlpool Refrigerator Door Stop
12MAY 10423131
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16MAY 67004717
17MAY 67004720
18MAY 67004598
19MAY 67004599
21WP67006642 Whirlpool Refrigerator Pin
22Linkage, Chiller (4)
23MAY 67004601
24MAY 67004602
25MAY 67004721
26MAY M0226233
26WP67006380 Whirlpool Screw
27BUCKET, LRG REF DOOR
28MAY 67002959
29MAY 67003213
