ABC2037DTW 12 – WATER DISPENSER/FILTER

ABC2037DTW 12 – WATER DISPENSER/FILTER

Written by

in

ABC2037DTW 12 – WATER DISPENSER/FILTER

Products

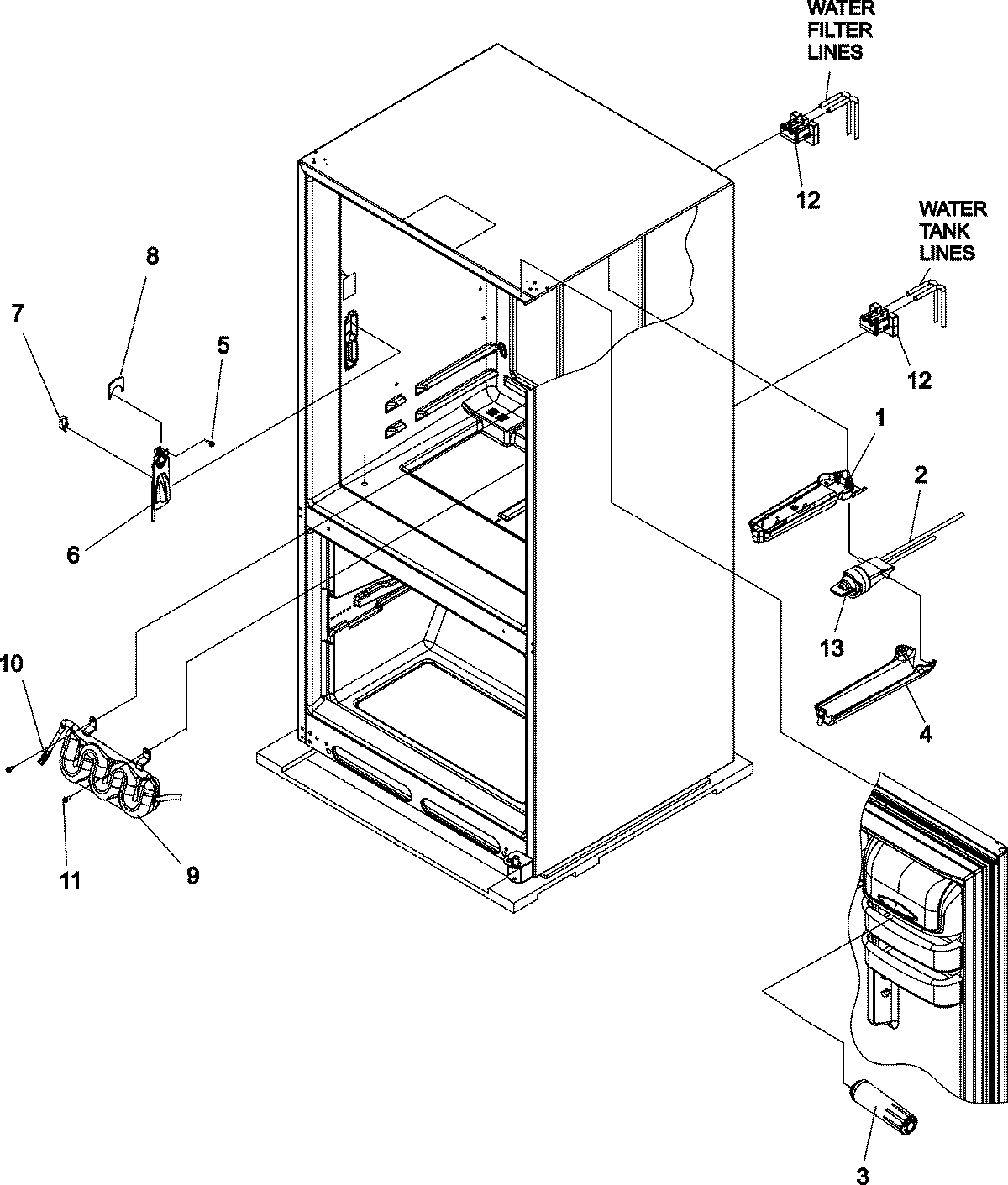

PositionProduct
1PLATE-FIL
2WP67006524 Whirlpool Refrigerator Housing
2WP67004106 Whirlpool Water Filter Housing
3everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
3FILTER, WATER SINGLE
4WP12568001 Whirlpool Filter Cover
5SCREW, SM
6FACADE, DISPENSER
7WP12575501 Whirlpool Refrigerator Micro Switch
8W11519867 Whirlpool Refrigerator Cover
9W11361728 Whirlpool Reservoir Assembly
10WP2300868 Whirlpool Refrigerator Fitting
11MAY 67004822
11WP98165 Whirlpool Screw
12WP12777701 Whirlpool Refrigerator Filler Block
13MAY 12664501
