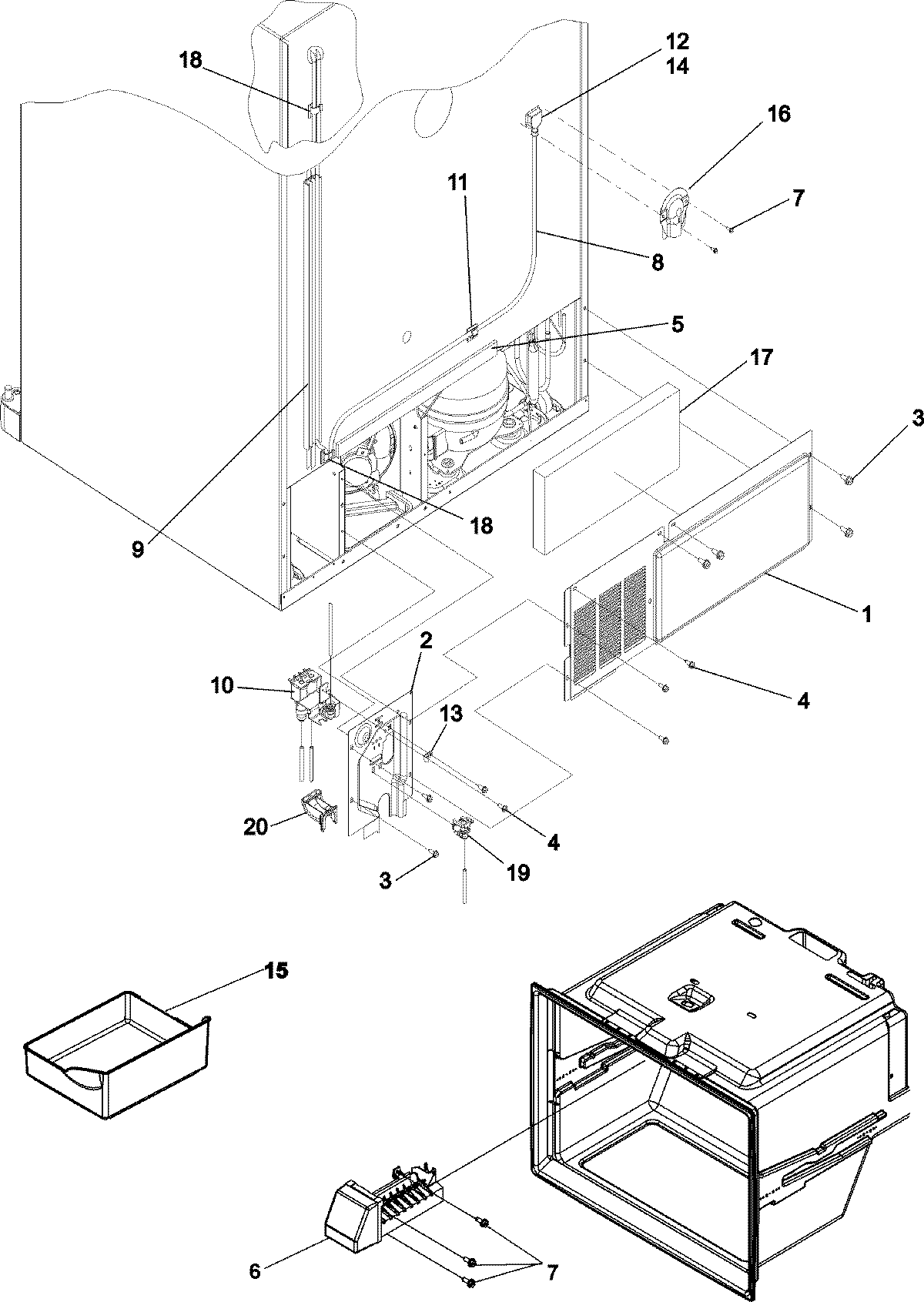

ABD2233DEQ 01 – CABINET BACK

ABD2233DEQ 01 – CABINET BACK

Written by

in

ABD2233DEQ 01 – CABINET BACK

Products

PositionProduct
1MAY 67006101
1BACK, MACH COMP
2MAY 67004611
3MAY M0238616
3Screw (10)
4WP98165 Whirlpool Screw
4681390 Whirlpool Refrigerator Screw
5Gasket
6D7824706Q Whirlpool Refrigerator Ice Maker Assembly
7MAY M0211018
8MAY A3223101
9Tubing, Plastic
9Tubing, Plastic
10WP67005154 Whirlpool Water Valve
10WP67006531 Whirlpool Water Inlet Valve
11WPM0104106 Whirlpool Refrigerator Clip
12W11181718 Whirlpool Refrigerator Water Tube
14W10833902 Whirlpool Refrigerator Clamp
15WP67001255 Whirlpool Ice Bucket
16WP67006506 Whirlpool Refrigerator Power Cord
17COVER, WATER LINE
1767003796 Whirlpool Refrigerator Fiber Acoustic
18MAY M0104102
1967002816 Whirlpool Refrigerator Waterline Clip
19MAY 67004100
2012831101 Whirlpool Refrigerator Tube Clamp
