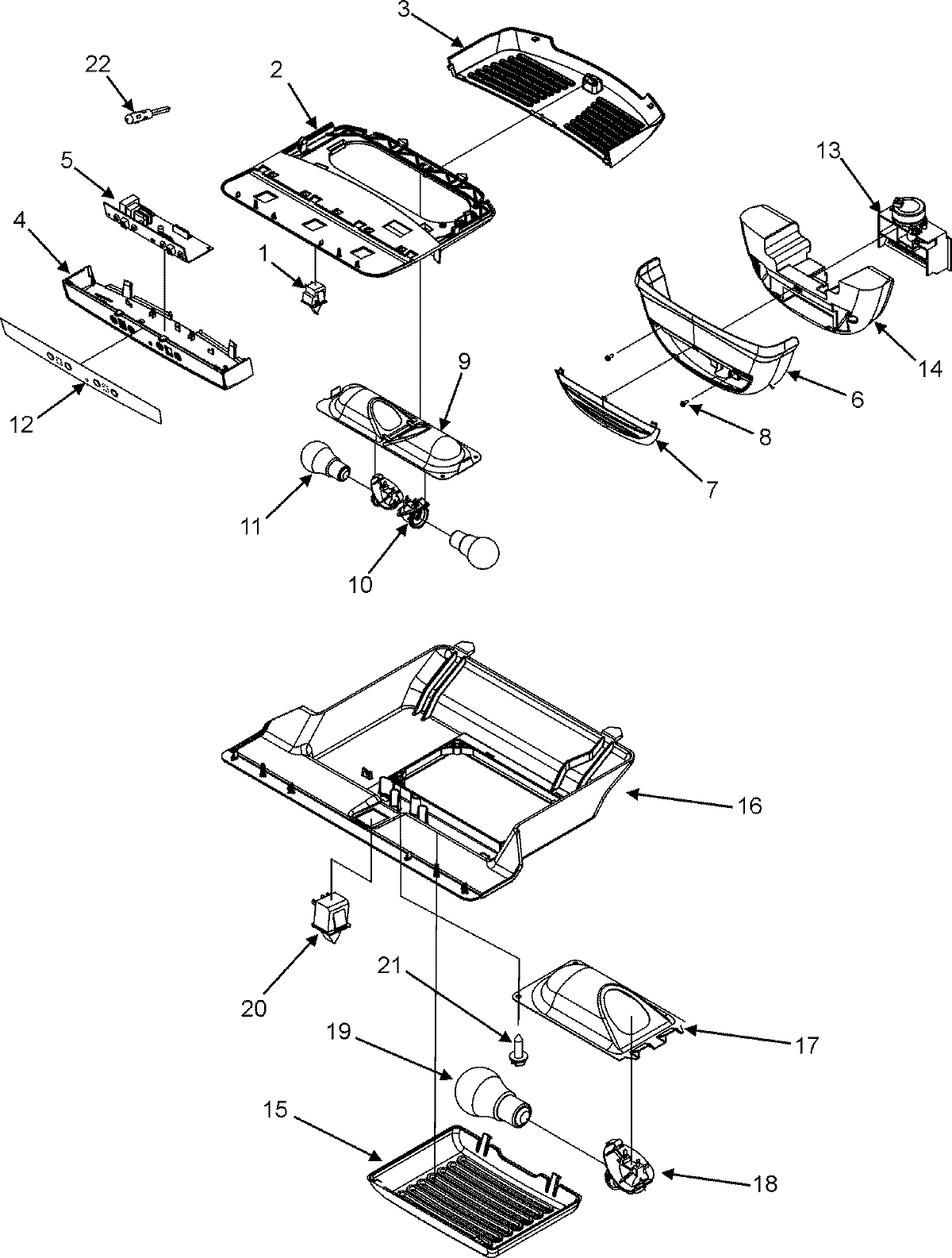

ABD2233DEQ 03 – CONTROLS

Products

Position	Product
NI	MAY 67006094
NI	MAY 67003908
NI	W11619328 Whirlpool Wire Harness
1	Switch, Light (2)
2	MAY Y67003896
3	W11284721 Whirlpool Refrigerator Cover
4	WPW10464769 Whirlpool Refrigerator Housing
5	WPW10503278 Whirlpool Refrigerator Electronic Control Board
6	WP12806701 Whirlpool Refrigerator Box Cover
7	67003900 Whirlpool Refrigerator Insert Damper Cover
8	MAY M0213132
8	MAY 67006602
9	12806601 Whirlpool Refrigerator Light Housing
12	Overlay
13	WPW10196393 Whirlpool Control Damper
13	WP67003903 Whirlpool Refrigerator Damper Control
14	WP67003904 Whirlpool Refrigerator Insulation
14	MAY 67006604
15	MAY 67003905
16	67003906 Whirlpool Refrigerator Control Module
17	MAY 67001035
18	W11447232 Whirlpool Refrigerator Socket
18	Socket, Light (2)
19	RANGE ONLY 40W 120V APPL BULB
20	MAY 12466101
20	W11396033 Whirlpool Refrigerator Rocker Switch
21	MAY 67006530
21	MAY M0226528
22	12002355 Whirlpool Refrigerator Thermistor Kit
