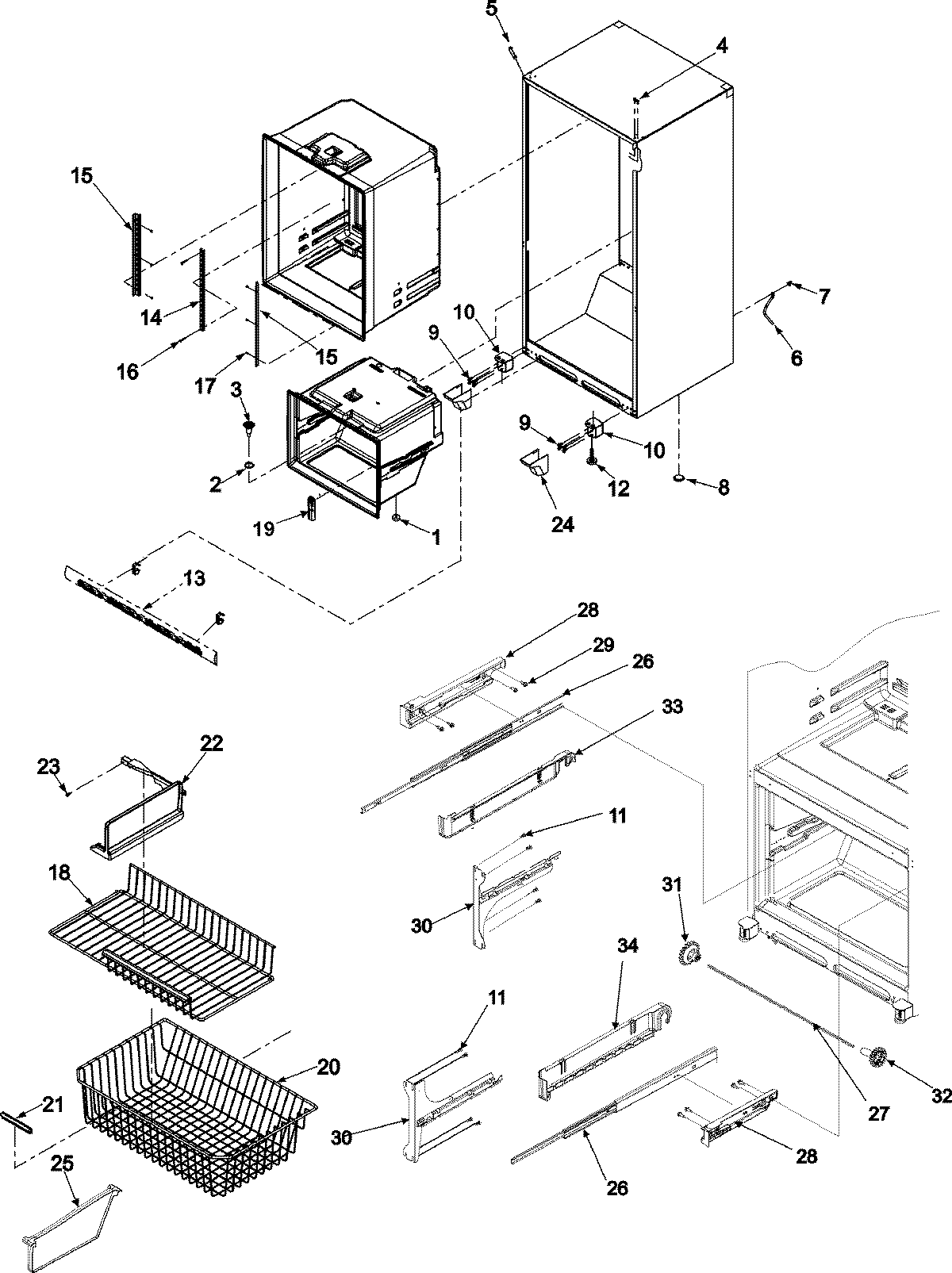

ABD2233DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

ABD2233DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABD2233DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
5MAY 67003486
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67006564
9MAY 67003858
1012906303WD Whirlpool Refrigerator Bracket
10HINGE, BOTTOM E-CT (WHT)
11MAY M0211018
11Screw (8)
12MAY 10354001
12W11177593 Whirlpool Leveling Feet
13MAY 67003845
1467001073 Whirlpool Refrigerator Center Ladder
15LADDER, SIDES
16MAY M0231425
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
17SCREW, SM
18MAY 67002918
19WP67003924 Whirlpool Refrigerator Cover
20MAY 67004260
20MAY 67006024
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
23MAY 67006608
24MAY 12561901C
25Divider, Lower Basket
25MAY 67004064
26MAY 67004065
26W11658402 Whirlpool Drawer Slide Rail
27SHAFT, RACK
28MAY 12002500
28MAY 67001247
28AMAY 67001246
29SCREW 1“
29Screw (6)
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31MAY 67004215
3212002497 Whirlpool Refrigerator Drawer Gear Kit
32GEAR (RT)
33WPW10280608 Whirlpool Refrigerator Bracket
34WPW10280613 Whirlpool Refrigerator Bracket
