ABD2233DEQ 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

ABD2233DEQ 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

Written by

in

ABD2233DEQ 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

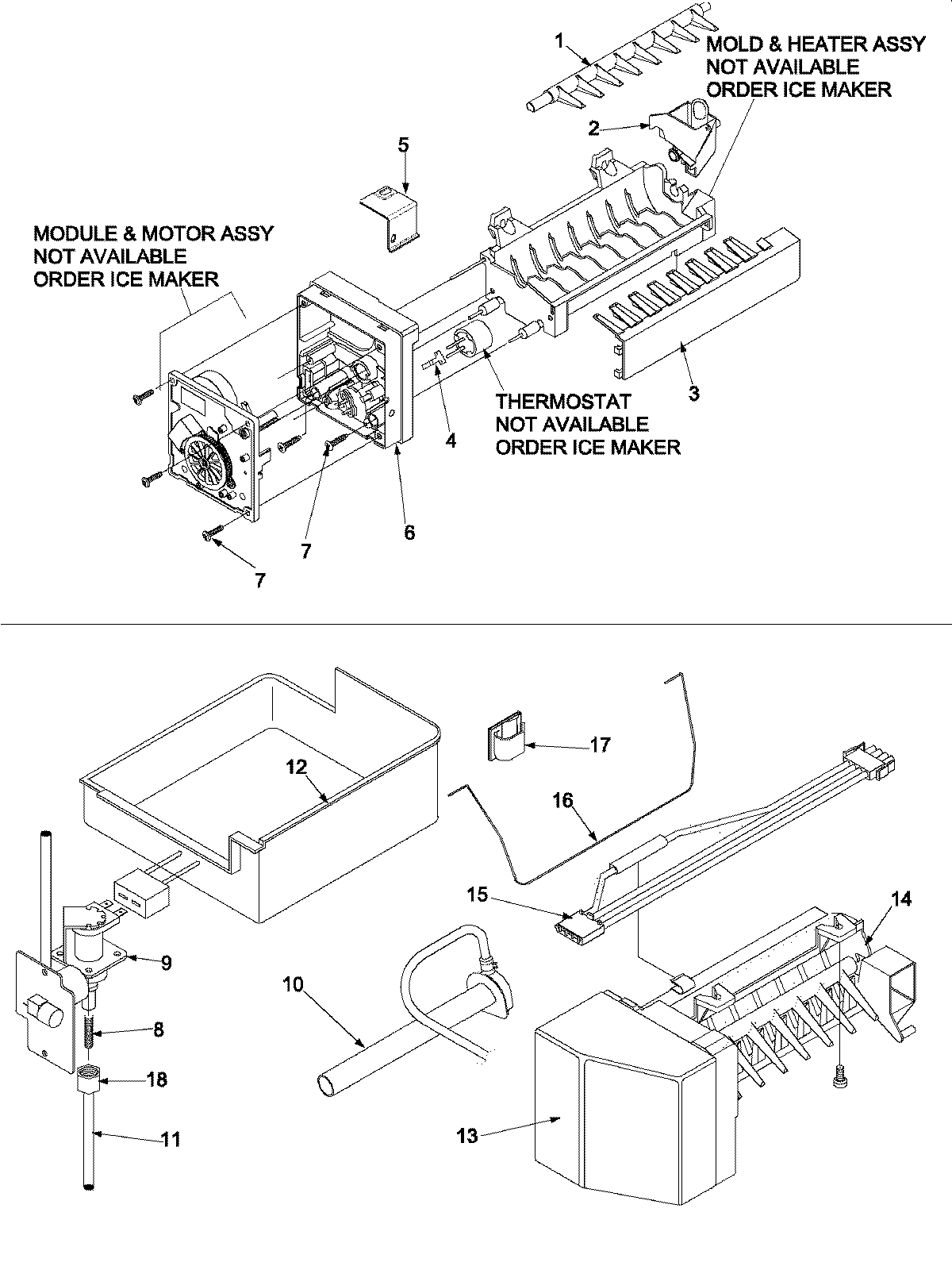

Products

PositionProduct
NIMAY 67001264
NI681390 Whirlpool Refrigerator Screw
NIMAY 95108-1
NIClip
NIW10833902 Whirlpool Refrigerator Clamp
NIW11033771 Whirlpool Refrigerator Coupling
NIMAY A3223101
NIMAY M0211018
NIMAY 10549601
NIMAY 67001258
NIMAY 10526701
NI8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
1WP627843 Whirlpool Refrigerator Ejector Arm
2WP628356 Whirlpool Refrigerator Fill Cup
3WP2182124 Whirlpool Refrigerator Stripper Arm
4WP2315522 Whirlpool Refrigerator Clip
5BRACKET, MODULE & HEATER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7SCREW
8SPRING, ANTI KINK
9WP67003753 Whirlpool Refrigerator Inlet Valve
10ELBOW, FILL TUBE
11MAY B5705323
12WP67001255 Whirlpool Ice Bucket
13WPW10289690 Whirlpool Ice Maker Cover
14D7824706Q Whirlpool Refrigerator Ice Maker Assembly
15WPD7813010 Whirlpool Refrigerator Wire Harness
16ARM-SHUT
17WPM0104106 Whirlpool Refrigerator Clip
18NUT, SLEEVE
