ABD2233DEQ 11 – WATER DISPENSER/FILTER

ABD2233DEQ 11 – WATER DISPENSER/FILTER

Written by

in

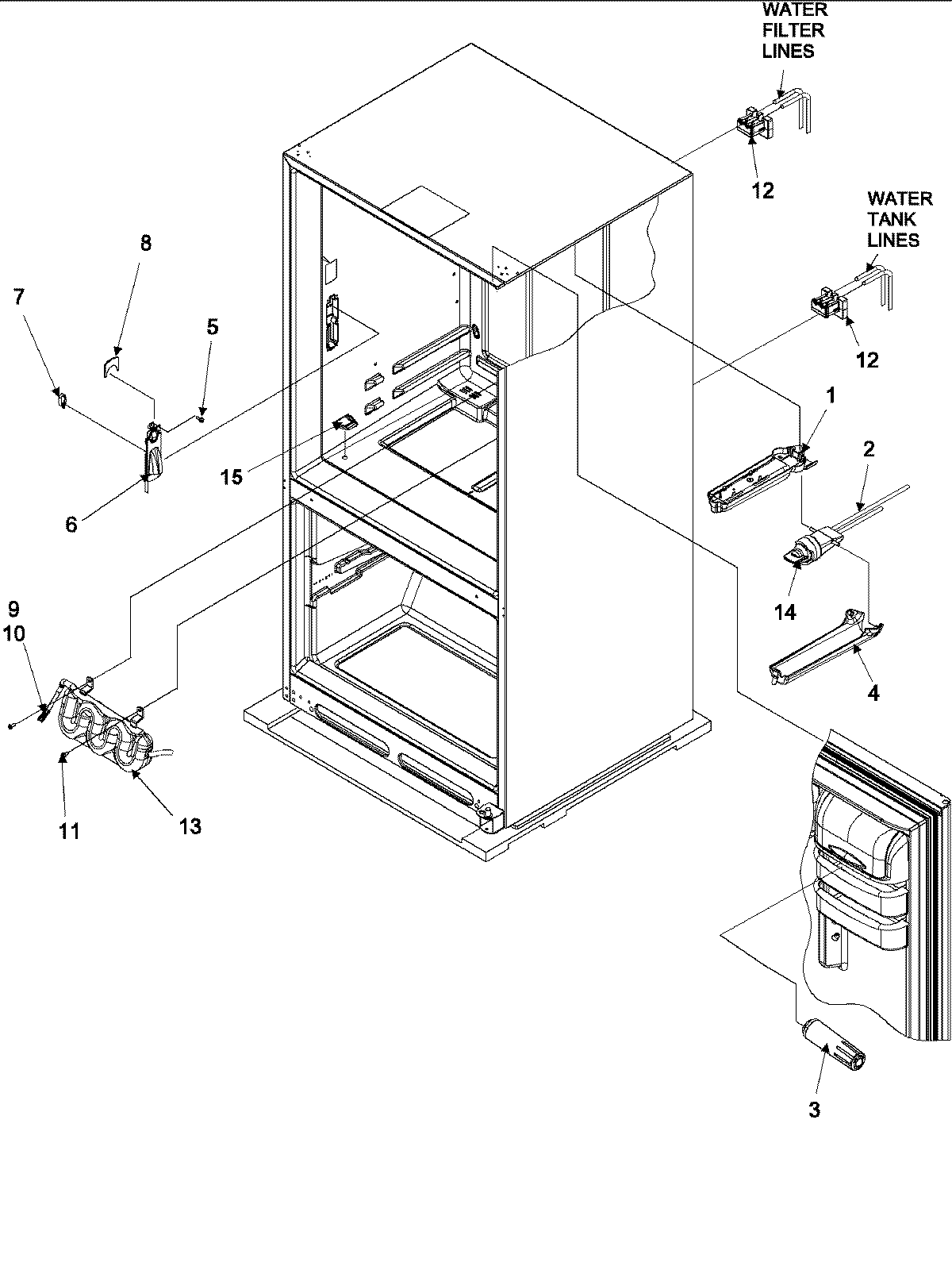

ABD2233DEQ 11 – WATER DISPENSER/FILTER

Products

PositionProduct
1PLATE-FIL
2WP67004106 Whirlpool Water Filter Housing
2WP67006524 Whirlpool Refrigerator Housing
3FILTER, WATER SINGLE
3everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
4WP12568001 Whirlpool Filter Cover
6MAY 67004608
6FACADE, DISPENSER
7WP12575501 Whirlpool Refrigerator Micro Switch
8W11519867 Whirlpool Refrigerator Cover
9WP2300868 Whirlpool Refrigerator Fitting
10W11677725 Whirlpool Refrigerator Guide
10MAY 67002456
11SCREW, SM
11WP98165 Whirlpool Screw
12WP12777701 Whirlpool Refrigerator Filler Block
13MAY 67004609
14MAY 12664501
15MAY 67001793
15SUMP, TRAY
