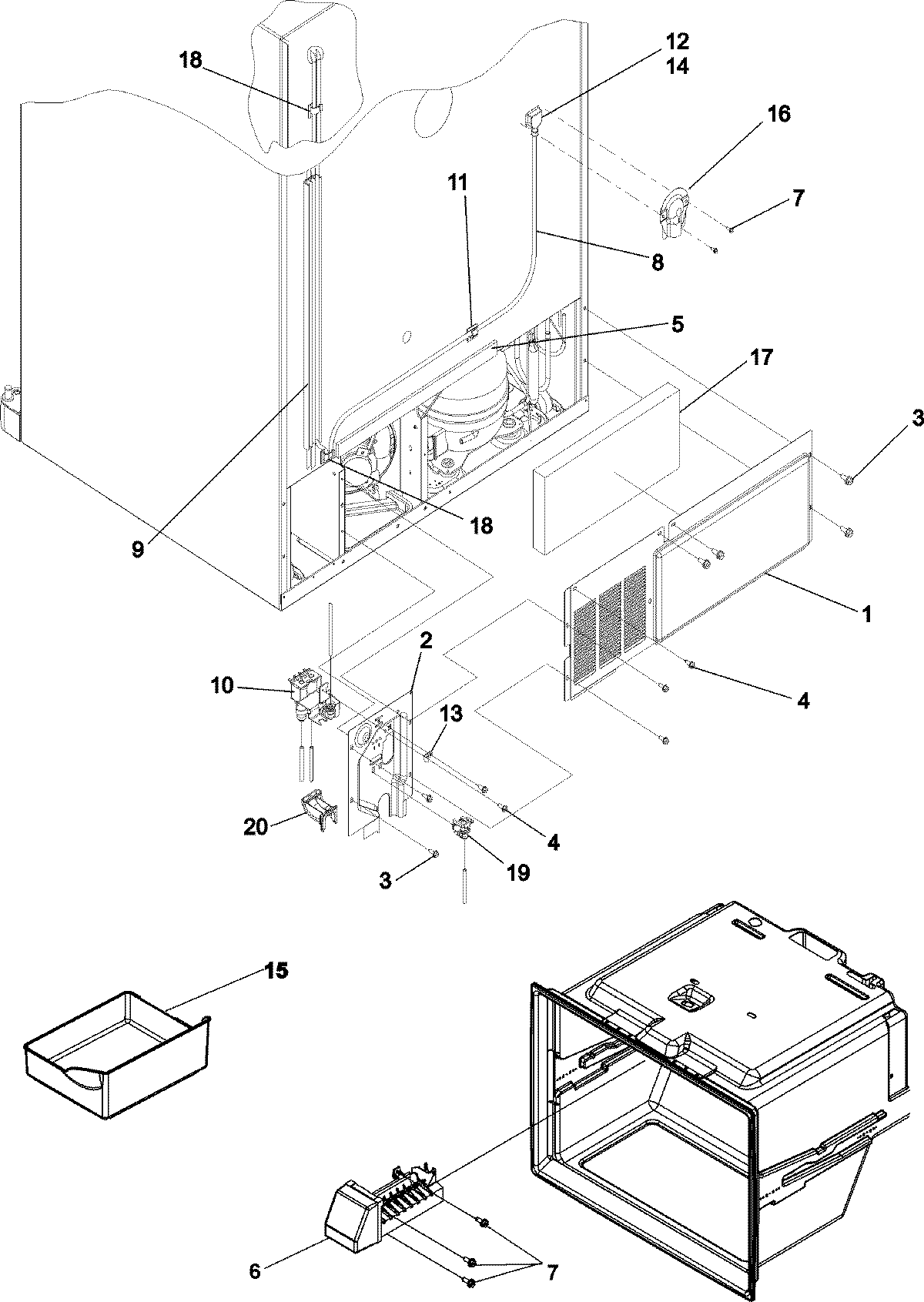

ABD2233DES 01 – CABINET BACK

Products

Position	Product
1	MAY 67006101
1	BACK, MACH COMP
2	MAY 67004611
3	MAY M0238616
3	Screw (10)
4	WP98165 Whirlpool Screw
4	681390 Whirlpool Refrigerator Screw
5	Gasket
6	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
7	MAY M0211018
8	MAY A3223101
9	Tubing, Plastic
9	Tubing, Plastic
10	WP67005154 Whirlpool Water Valve
10	WP67006531 Whirlpool Water Inlet Valve
11	WPM0104106 Whirlpool Refrigerator Clip
12	W11181718 Whirlpool Refrigerator Water Tube
14	W10833902 Whirlpool Refrigerator Clamp
15	WP67001255 Whirlpool Ice Bucket
16	WP67006506 Whirlpool Refrigerator Power Cord
17	COVER, WATER LINE
17	67003796 Whirlpool Refrigerator Fiber Acoustic
18	MAY M0104102
19	67002816 Whirlpool Refrigerator Waterline Clip
19	MAY 67004100
20	12831101 Whirlpool Refrigerator Tube Clamp
