ABD2233DES 08 – REFRIGERATOR DOOR

ABD2233DES 08 – REFRIGERATOR DOOR

Written by

in

ABD2233DES 08 – REFRIGERATOR DOOR

Products

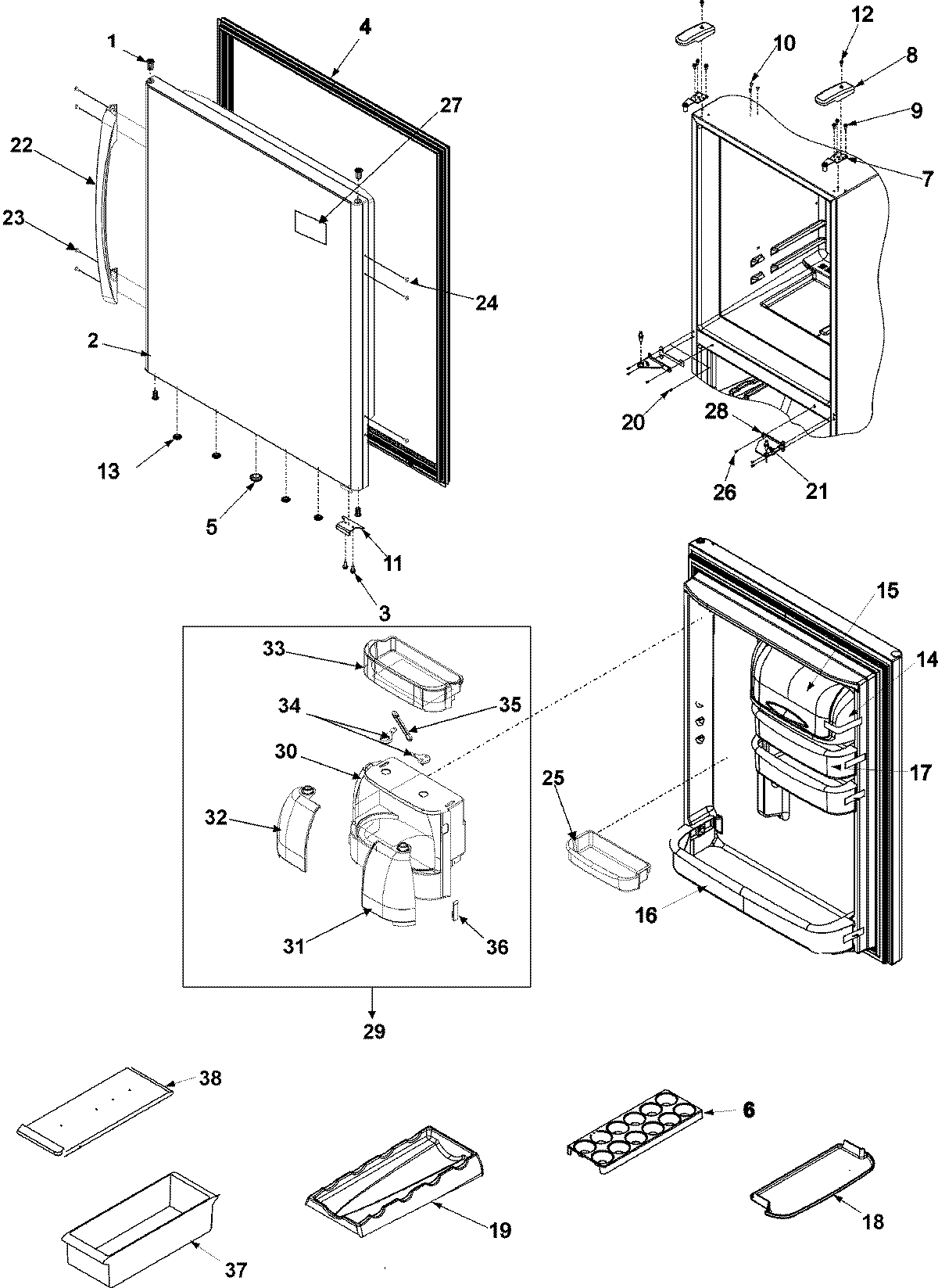

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2MAY 67004362
3WP98165 Whirlpool Screw
3MAY M0211533
4WPW10436248 Whirlpool Door Gasket
5MAY A3080001
6MAY 10436506
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9MAY M0238731
9WP489349 Whirlpool Refrigerator Screw
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP8281196 Whirlpool Screw
1367004838 Whirlpool Refrigerator Button Vent Plug
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16Retainer, Chiller
17WPW10371193 Whirlpool Refrigerator Door Bin
18GRIPPER, BUCKET
1967001656 Whirlpool Refrigerator Bottle Trivet
21WP67006642 Whirlpool Refrigerator Pin
22MAY 67004450
2367006806 Whirlpool Refrigerator Screw HI Torque Black
23WP12992902 Whirlpool Refrigerator Screw
24WP12246608 Whirlpool Refrigerator Button
24WP12246610 Whirlpool Refrigerator Handle Plug
24MAY 12246604
25MAY 67004469
25MAY 67004451
26MAY M0226233
26WP67006380 Whirlpool Screw
27Y12528501 Whirlpool Refrigerator Nameplate
28WP12607104ED Whirlpool Refrigerator Door Hinge
29MAY 67004596
30MAY 67004597
31MAY 67004598
32MAY 67004599
33MAY 67004600
34Linkage, Chiller (4)
35MAY 67004601
36MAY 67004602
37MAY 10423131
38MAY 10436404
