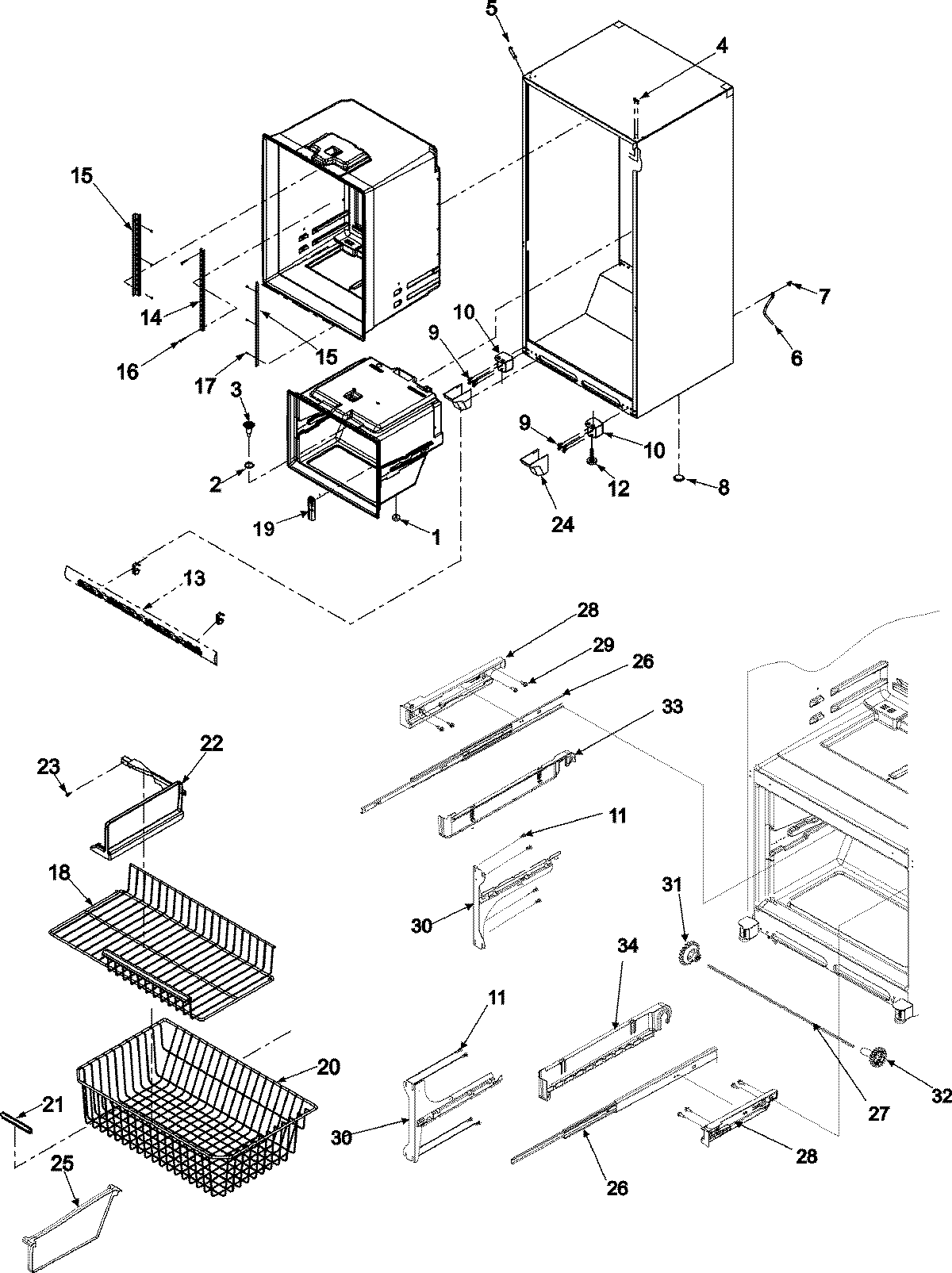

ABD2233DEW 06 – INTERIOR CABINET & FREEZER SHELVING

Products

Position	Product
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	67003484 Whirlpool Refrigerator White Corner Cover
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
9	MAY 67006564
10	HINGE, BOTTOM E-CT (WHT)
10	12906303WD Whirlpool Refrigerator Bracket
11	Screw (8)
11	MAY M0211018
12	MAY 10354001
12	W11177593 Whirlpool Leveling Feet
13	WPW10534161 Whirlpool Refrigerator Front Grille
13	Grille Assembly (Includes Clips) (White)
14	67001073 Whirlpool Refrigerator Center Ladder
15	LADDER, SIDES
16	W10709795 Whirlpool Refrigerator Screw
16	MAY M0231425
17	SCREW, SM
17	MAY 67006400
18	MAY 67002918
19	WP67003924 Whirlpool Refrigerator Cover
20	MAY 67006024
20	MAY 67004260
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67001310
23	MAY 67006608
24	MAY 12561901W
25	MAY 67004064
25	Divider, Lower Basket
26	MAY 67004065
26	W11658402 Whirlpool Drawer Slide Rail
27	SHAFT, RACK
28	MAY 12002500
28	MAY 67001247
28A	MAY 67001246
29	SCREW 1“
29	Screw (6)
30	BRACKET, DRAWER SLIDE (RT)
30	BRACKET, DRAWER SLIDE (LT)
31	MAY 67004215
32	12002497 Whirlpool Refrigerator Drawer Gear Kit
32	GEAR (RT)
33	WPW10280608 Whirlpool Refrigerator Bracket
34	WPW10280613 Whirlpool Refrigerator Bracket
