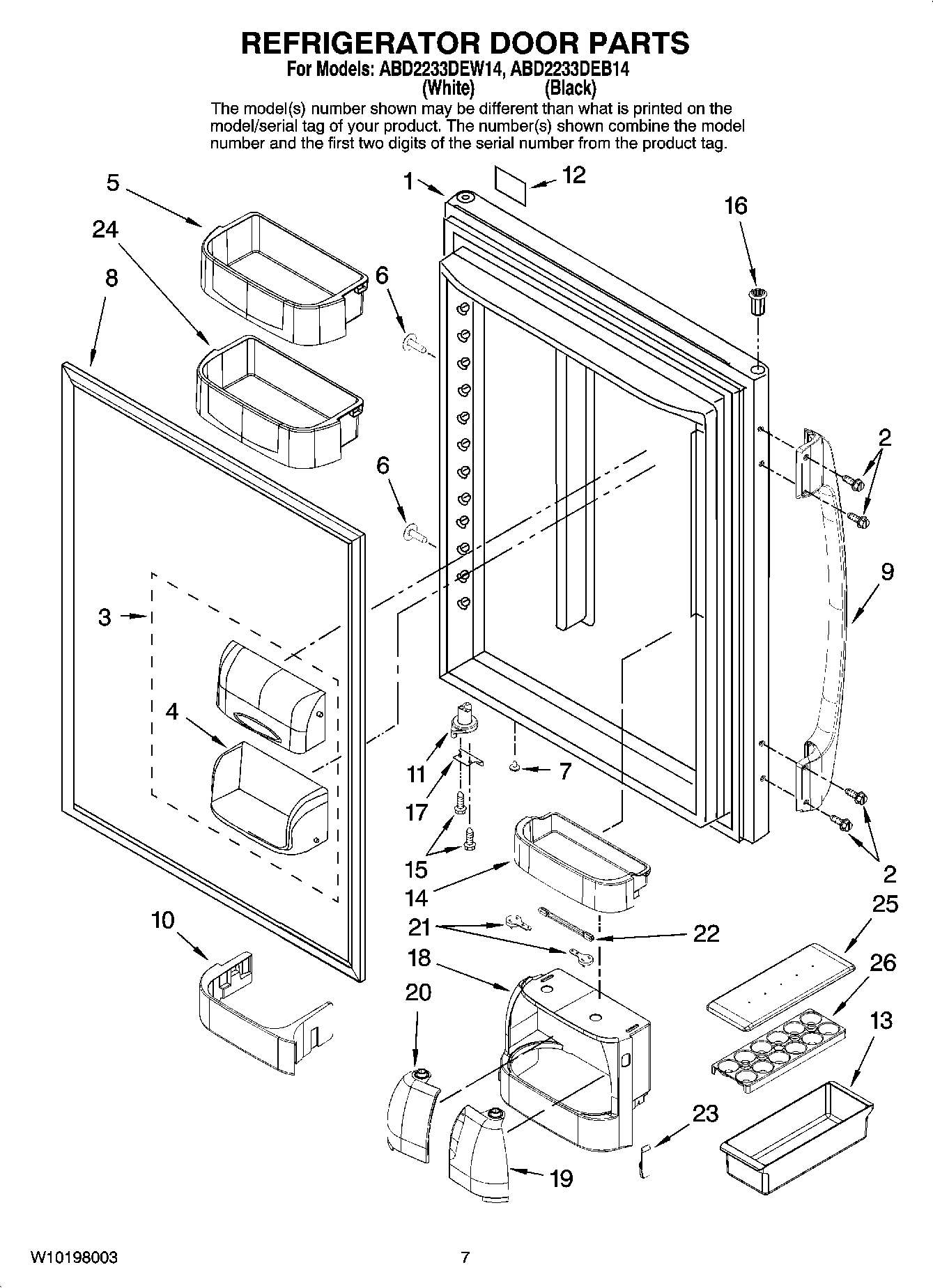

ABD2233DEW14 04 – REFRIGERATOR DOOR PARTS

ABD2233DEW14 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABD2233DEW14 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Black)
1DOOR ASSY., REF. FOAM (WHT)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6SCREW (BLK)
6MAY 12991103
710712401 Whirlpool Refrigerator Vent Plug (White)
767004838 Whirlpool Refrigerator Button Vent Plug
8GASKET, REF DOOR (WHT)
8GASKET, REF DOOR (BLK)
9MAY 67006721
9HANDLE, SIDE MOUNT (BLK)
10Retainer, Chiller
11WP67003639 Whirlpool Refrigerator Closer
11WP67003638 Whirlpool Closing Cam
12STAINLESS
13MAY 10423131
14MAY 67004600
15WP98165 Whirlpool Screw
1667004978 Whirlpool Refrigerator Black Door Bushing
16WP67004977 Whirlpool Refrigerator Door Hinge Bushing
17W11708403 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
18MAY 67004597
19MAY 67004598
20MAY 67004599
21Linkage, Chiller (4)
22MAY 67004601
23MAY 67004602
24MAY 67004469
25MAY 10436404
26MAY 10436506
