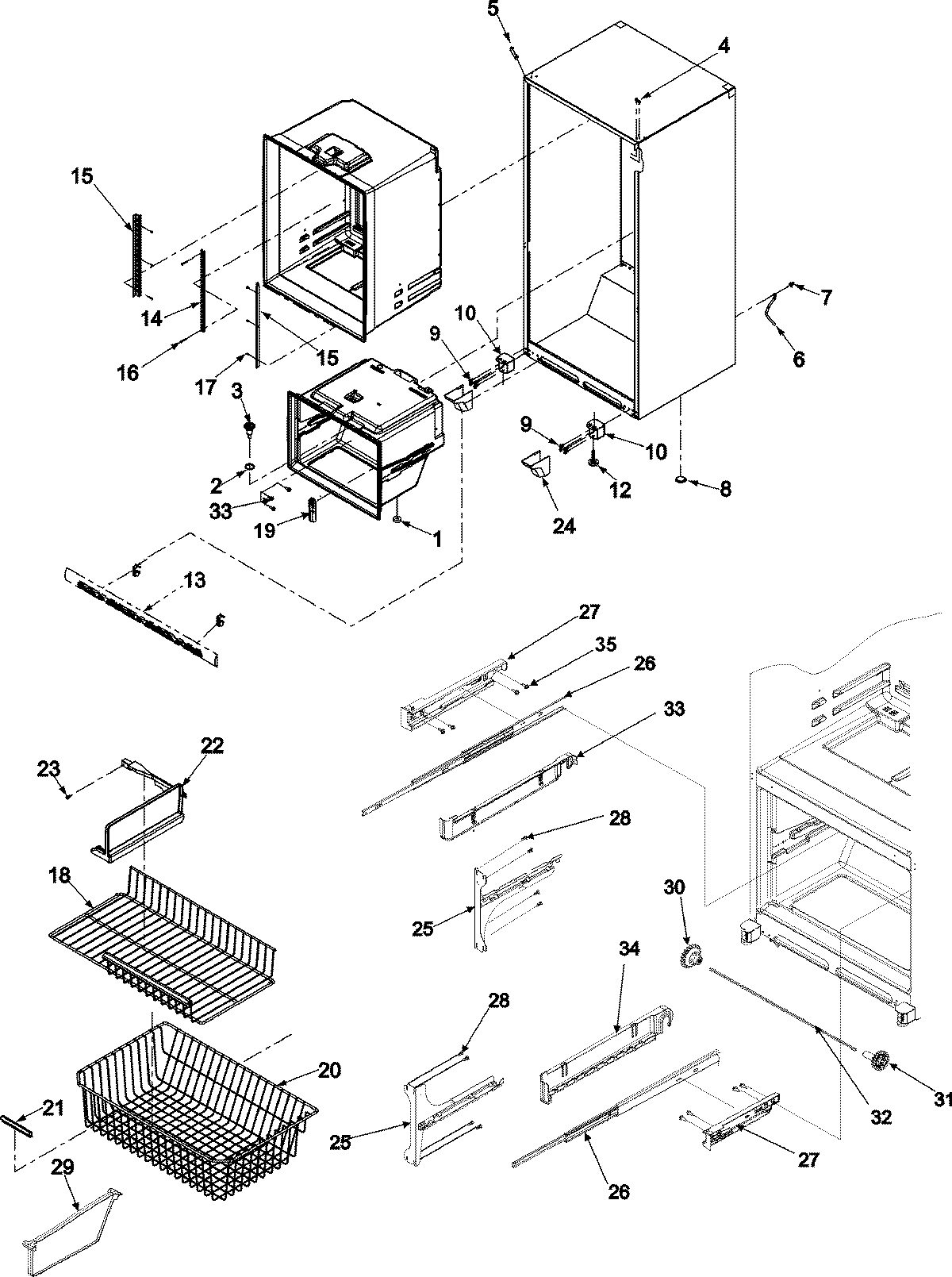

ABD2533DEQ 06 – INTERIOR CABINET & FREEZER SHELVING

Products

Position	Product
NI	MAY M0211018
1	Gasket
2	MAY M0500703
3	MAY D7753903
4	MAY A4539607
5	MAY 67003486
6	MAY 67001066
7	67001067 Whirlpool Refrigerator Drain Tube Clip
8	A3076901 Whirlpool Refrigerator Plug
9	MAY 67003858
10	HINGE, BOTTOM E-CT (WHT)
12	MAY 10354001
13	MAY 67002390
13	Clip, Grille
14	67001073 Whirlpool Refrigerator Center Ladder
15	LADDER, SIDES
16	MAY M0231425
17	SCREW, SM
18	MAY 67002765
19	MAY 67004610
20	WPW10503184 Whirlpool Refrigerator Freezer Basket
21	HANDLE, BASKET/SHELF
22	Divider, Upper Basket
23	MAY 67001310
24	MAY 12561901C
25	BRACKET, DRAWER SLIDE (RT)
25	BRACKET, DRAWER SLIDE (LT)
26	MAY 67004065
27A	MAY 67004217
27	MAY 67004218
28	SCREW 1“
29	MAY 67004064
30	GEAR (RT)
31	GEAR (LT)
33	WPW10280613 Whirlpool Refrigerator Bracket
34	WPW10280608 Whirlpool Refrigerator Bracket
35	SCREW, SM
