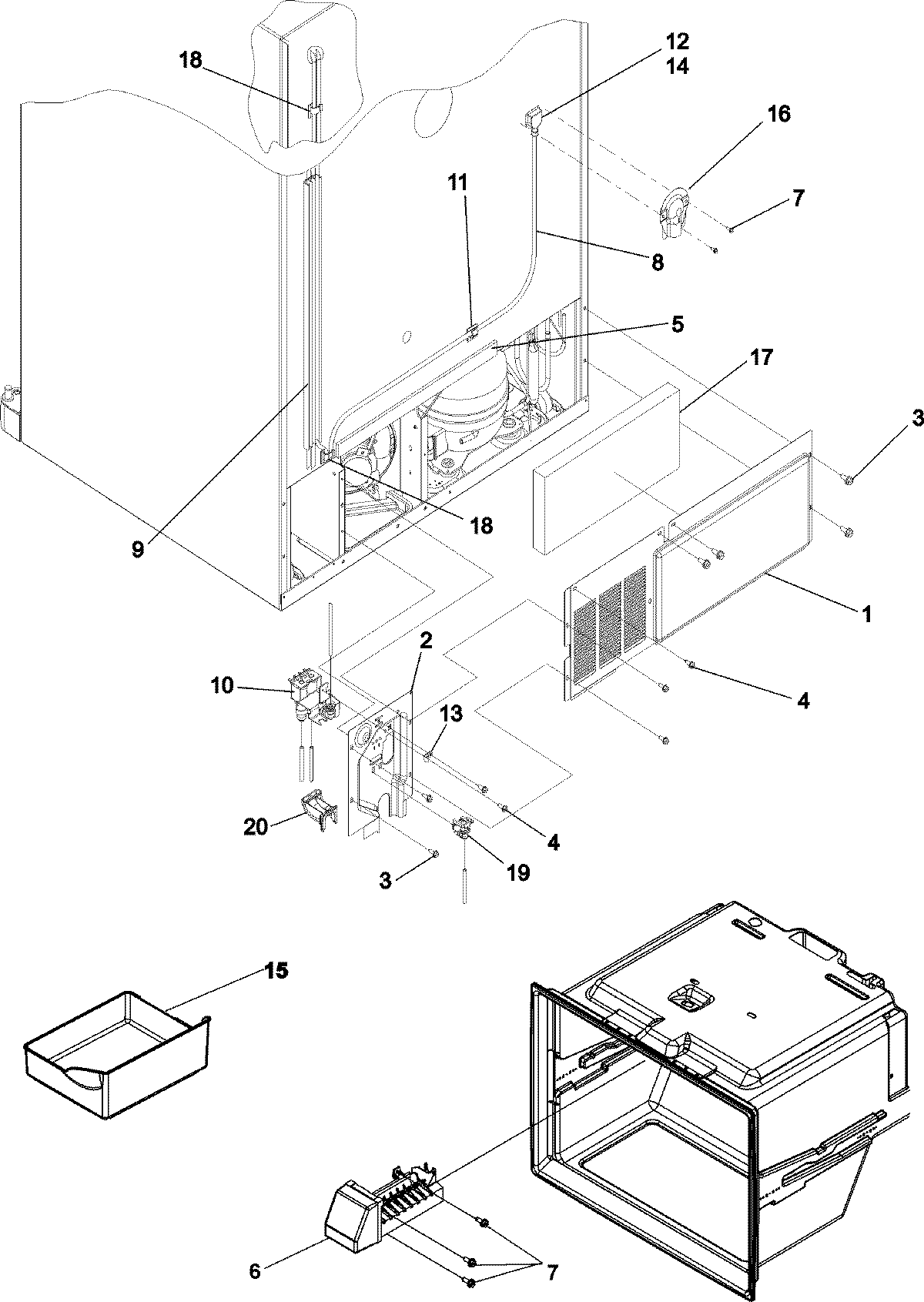

ABD2533DES 01 – CABINET BACK

Products

Position	Product
NI	WP67006506 Whirlpool Refrigerator Power Cord
1	BACK, MACH COMP
2	MAY 67004098
3	MAY M0238616
4	681390 Whirlpool Refrigerator Screw
5	Gasket
6	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
6	WPW10289690 Whirlpool Ice Maker Cover
6	WPD7813010 Whirlpool Refrigerator Wire Harness
6	ARM-SHUT
7	MAY 67004822
8	Tubing, Plastic
8	MAY A3223101
9	TRACK, WATERLINE
10	WP67005154 Whirlpool Water Valve
11	WPM0104106 Whirlpool Refrigerator Clip
12	Clip
13	W10833902 Whirlpool Refrigerator Clamp
14	W11181718 Whirlpool Refrigerator Water Tube
15	WP67001255 Whirlpool Ice Bucket
16	COVER, WATER LINE
17	67003796 Whirlpool Refrigerator Fiber Acoustic
18	MAY M0104102
19	MAY 67004100
20	12831101 Whirlpool Refrigerator Tube Clamp
