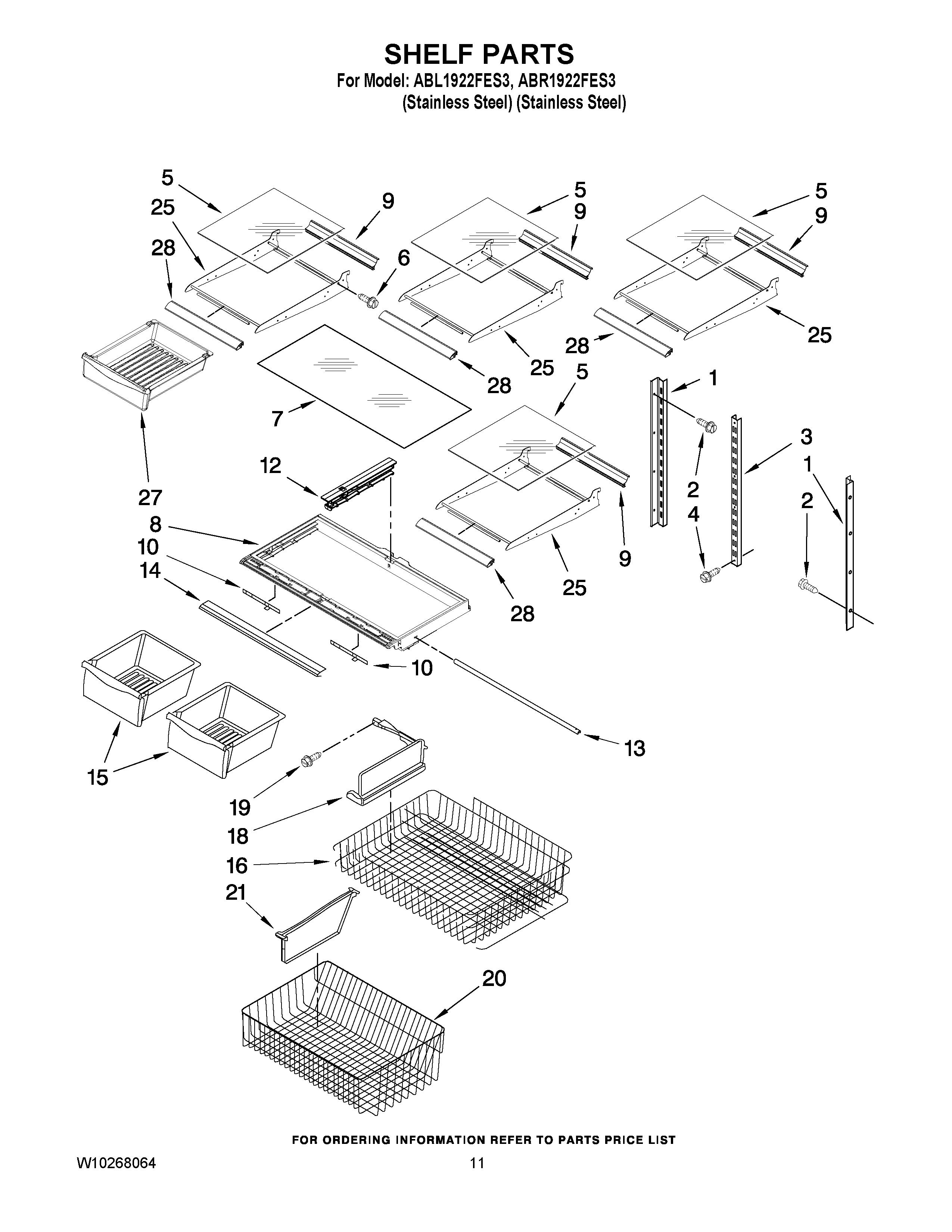

ABL1922FES3 06 – SHELF PARTSadmin2025-04-26T08:56:12+00:00ABL1922FES3 06 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12710606 |
| 2 | MAY 12990513 |
| 3 | MAY 12435807 |
| 4 | MAY 12990515 |
| 5 | Glass, Deli Shelf (2) |
| 6 | Screw (4) |
| 7 | MAY 12204823 |
| 8 | MAY 12530901 |
| 9 | Trim, Rear (2) Deli, Shelf |
| 10 | Slide, Humidity(2) |
| 12 | Rail, Center Crisper |
| 13 | MAY 12227302WD |
| 14 | MAY W10231337 |
| 15 | MAY 12531305 |
| 16 | Basket, Freezer (Upper) |
| 18 | Divider, Upper Basket |
| 19 | MAY 12990601 |
| 20 | MAY W10143560 |
| 21 | DIVIDER, BASKET LOWER |
| 25 | Frame, Shelf (4) |
| 27 | MAY 12656504 |
| 28 | Trim, Front Deli (2) |
