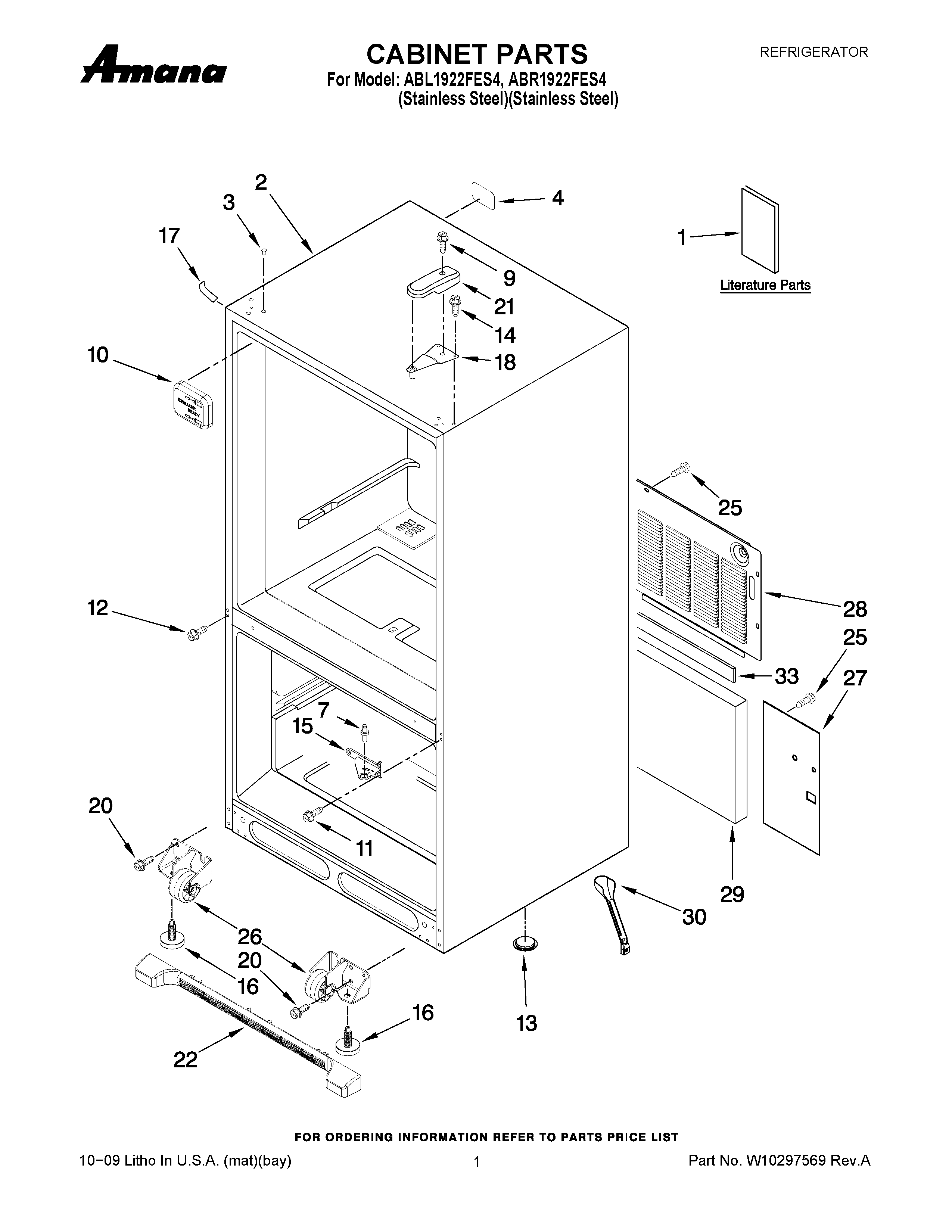

ABL1922FES4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10175445
1	MAY W10238840
1	MAY W10183296
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	LABEL-FILL TUBE
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
20	Screw (8)
21	COVER, HINGE(BLACK)
22	Grille Assembly (Black)
25	SCREW (10)
26	ROLLER ASSY. (FRONT) (RIGHT)
26	ROLLER ASSY. (FRONT) (LEFT)
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
