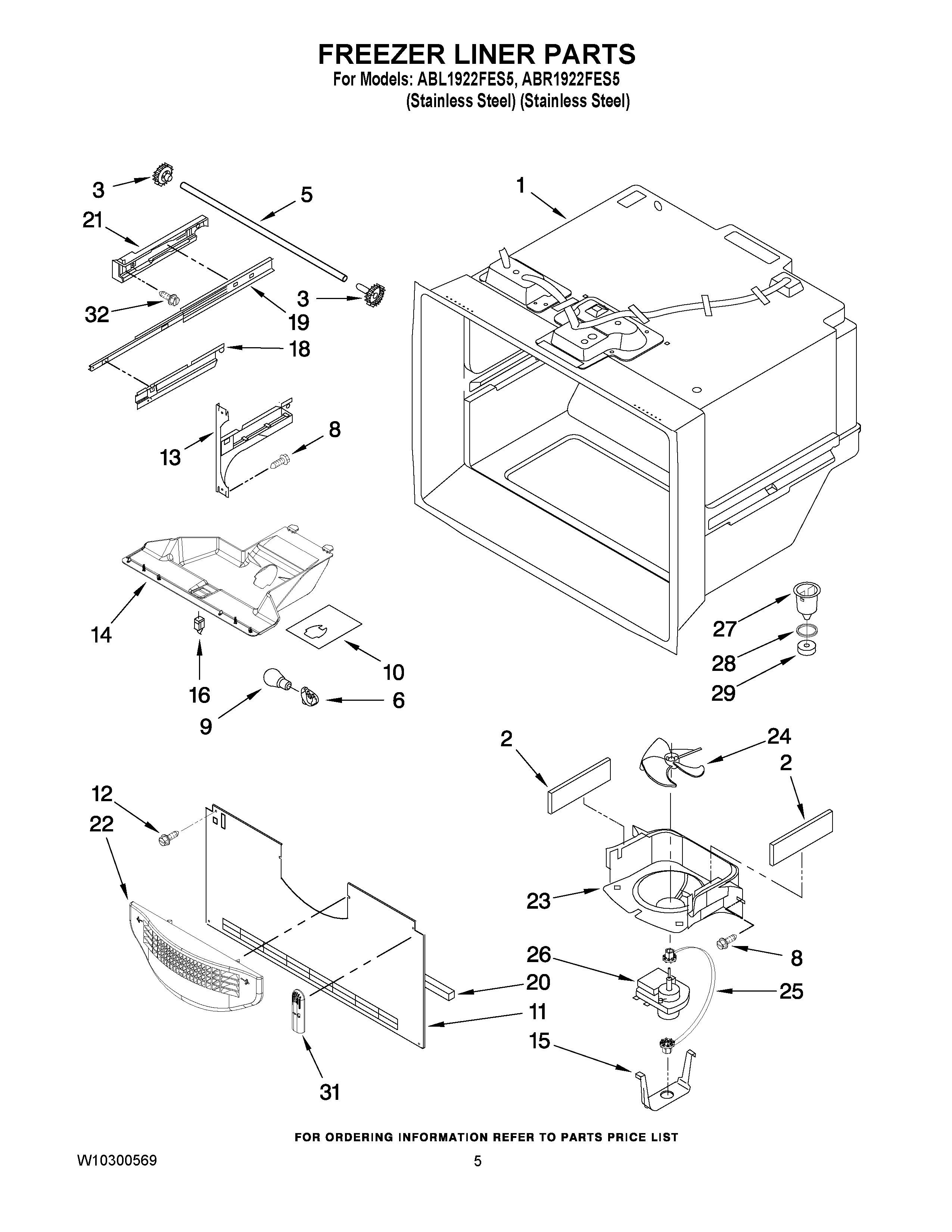

ABL1922FES5 03 – FREEZER LINER PARTS

ABL1922FES5 03 – FREEZER LINER PARTS

Written by

in

ABL1922FES5 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5SHAFT-RACK
6Socket, Light
8Screw (8)
9MAY W10194422
10FOIL-FZ LIGHT
11MAY 12226110
12MAY 12990101
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19MAY W10120018
20MAY A3189394
21CRADLE-BASKET (RIGHT)
21CRADLE-BASKET (LEFT)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
