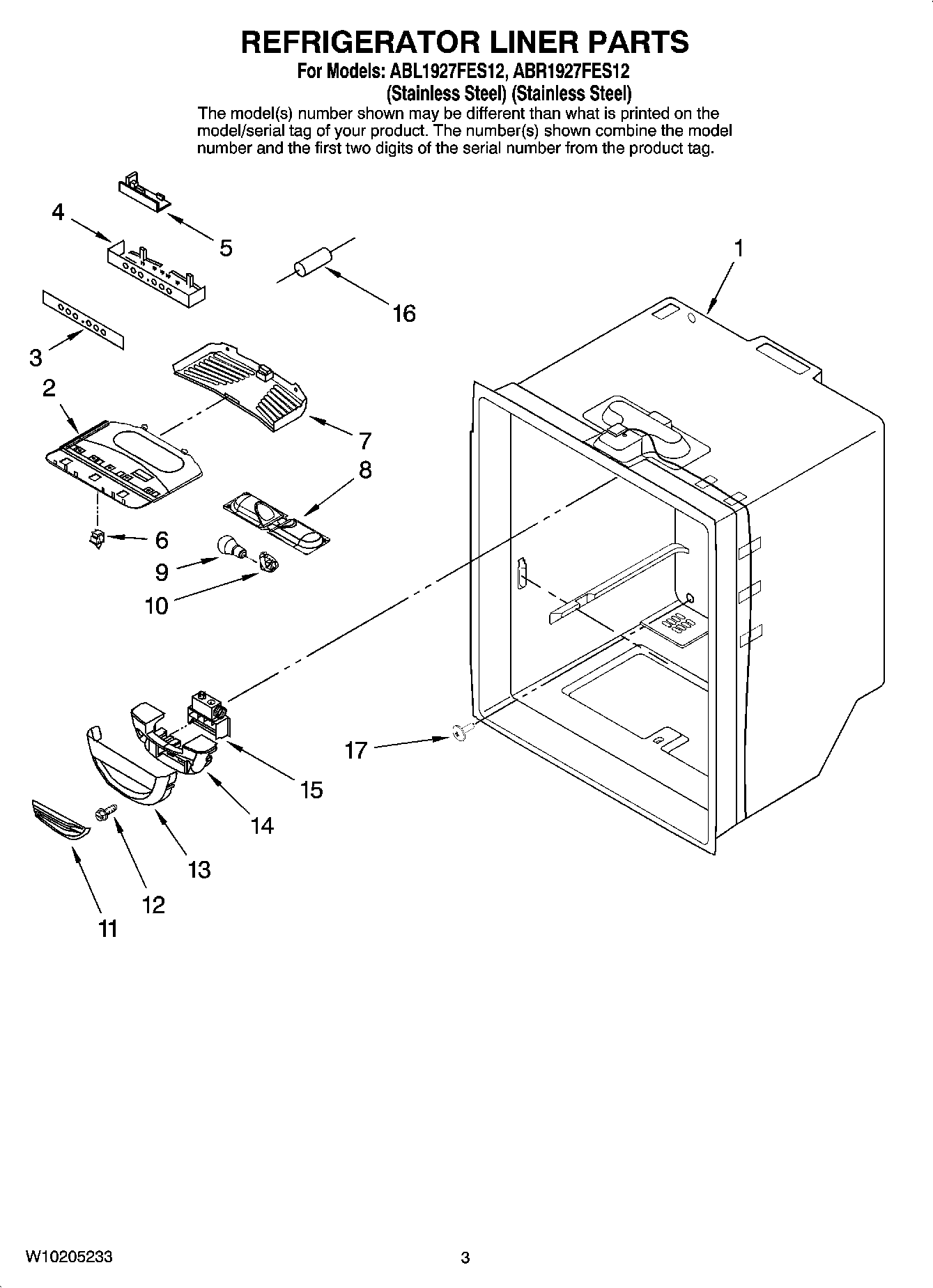

ABL1927FES12 02 – REFRIGERATOR LINER PARTS

ABL1927FES12 02 – REFRIGERATOR LINER PARTS

Written by

in

ABL1927FES12 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
W11619328 Whirlpool Wire Harness
2MAY Y67003896
3Overlay
4Housing, Electronic Control
5Board, Control
6Switch, Light (2)
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9RANGE ONLY 40W 120V APPL BULB
10Socket, Light (2)
1167003900 Whirlpool Refrigerator Insert Damper Cover
12MAY 67006602
13WP12806701 Whirlpool Refrigerator Box Cover
14MAY 67006604
15Control, Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
17PLUG, BUTTON
