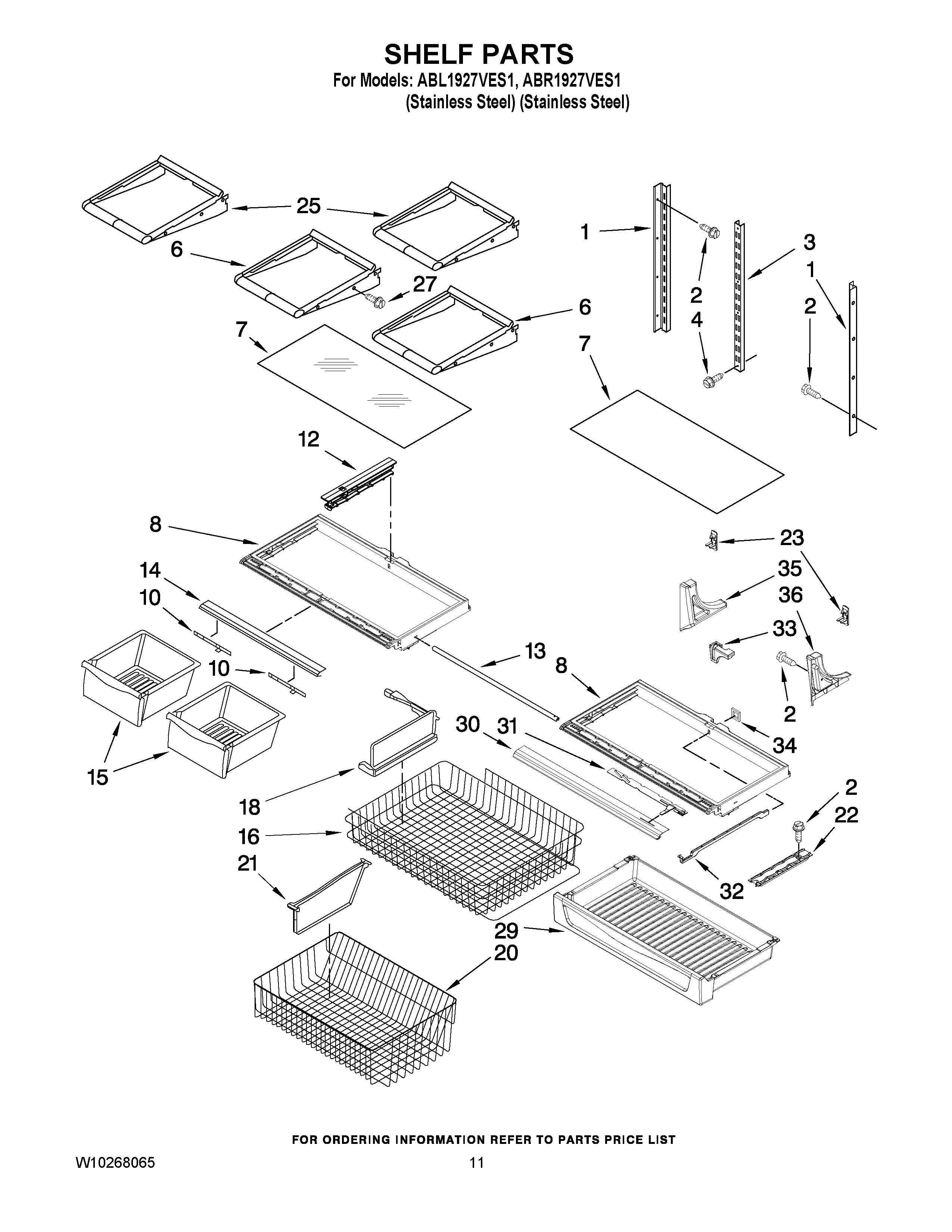

ABL1927VES1 06 – SHELF PARTS

ABL1927VES1 06 – SHELF PARTS

Written by

in

ABL1927VES1 06 – SHELF PARTS

Products

Position	Product
1	MAY 12710606
2	MAY 12990513
3	MAY 12435807
4	MAY 12990515
6	MAY 12463608
7	MAY 12204823
8	MAY 12724014
10	Slide, Humidity(2)
12	Rail, Center Crisper
13	MAY 12227302WD
14	MAY W10231337
15	MAY 12724121
16	MAY W10201224
18	Divider, Upper Basket
20	MAY W10146449
21	MAY W10205416
22	TRACK, PANTRY
23	HOOK-LADDER (2)
25	Shelf, Glide (2)
27	Screw (4)
29	MAY 12645019
30	MAY 12530605
31	Slide,Pantry
32	MAY 12531401
33	MAY 12531601
34	MAY 12531701
35	SUPPORT-LEFT
36	SUPPORT-RIGHT
