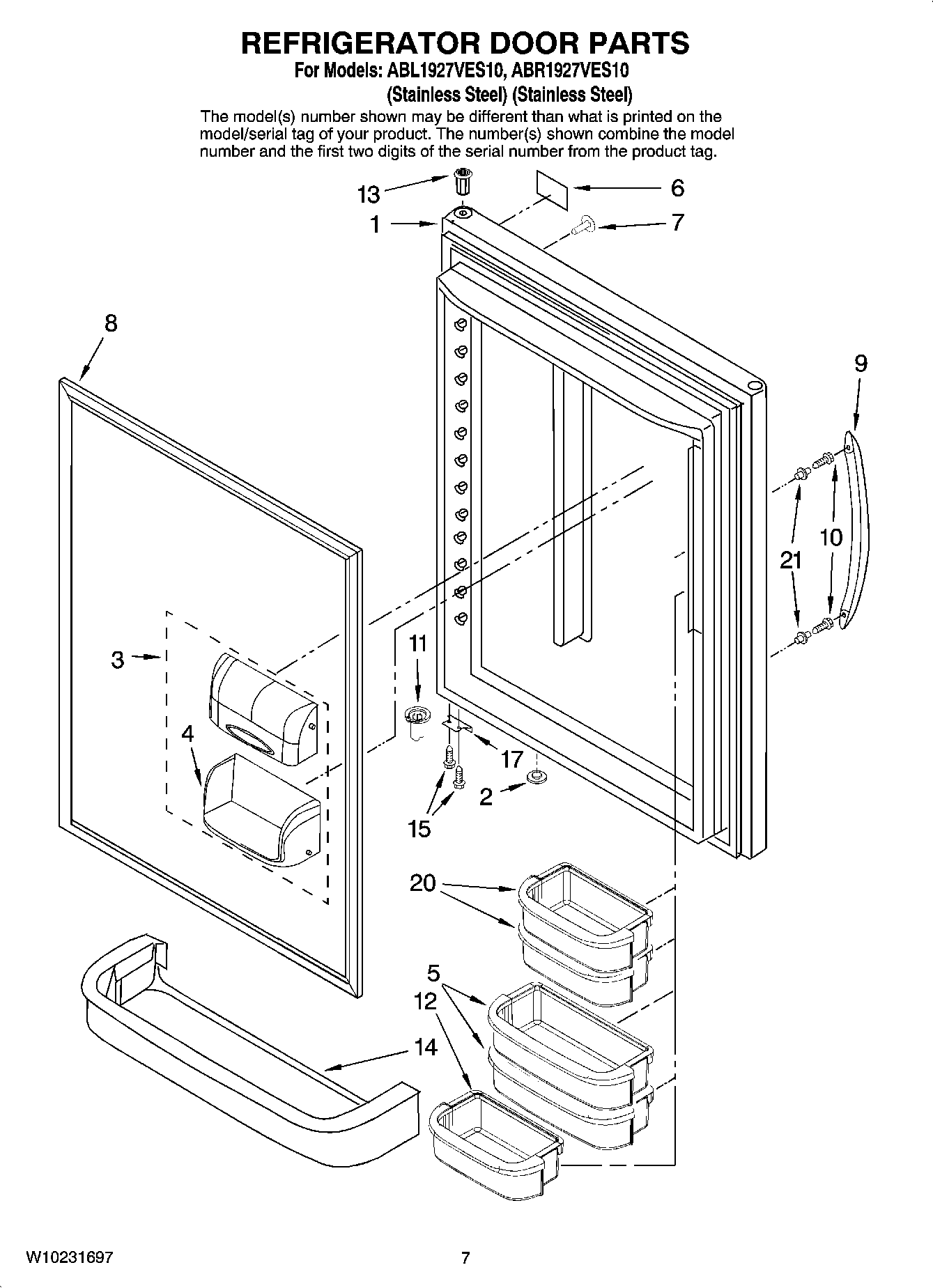

ABL1927VES10 04 – REFRIGERATOR DOOR PARTS

ABL1927VES10 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABL1927VES10 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (W/ INSULATION) STAINLESS STEEL (LEFT)
1REFRIGERATOR DOOR (W/ INSULATION) STAINLESS STEEL (RIGHT)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6Y12528501 Whirlpool Refrigerator Nameplate
7WP12246608 Whirlpool Refrigerator Button
8Gasket, Door Magnetic (Black)
9Handle (Stainless Steel)
10SCREW
11WP67003639 Whirlpool Refrigerator Closer
12MAY 67004276
1367004978 Whirlpool Refrigerator Black Door Bushing
14MAY 67001139
15WP98165 Whirlpool Screw
17W11708403 Whirlpool Door Stop
20MAY 67003774
21WP67006113 Whirlpool Stud Bolt
