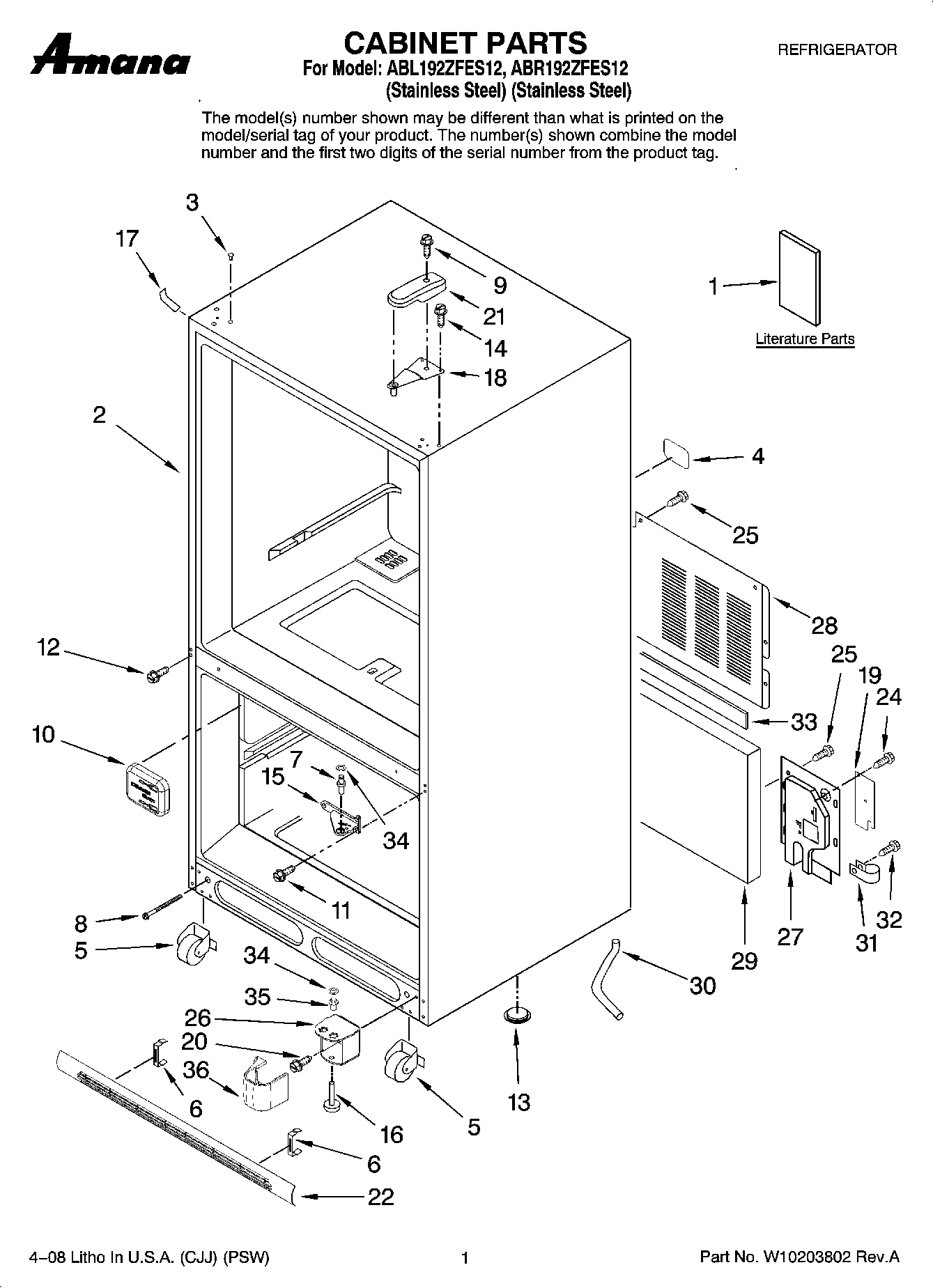

ABL192ZFES12 01 – CABINET PARTS

Products

Position	Product
1	ENERGY TAG
1	MAY W10175445
1	MAY W10165418
3	WP12246608 Whirlpool Refrigerator Button
4	MAY 67005064
5	Roller Assy.(Rear)
6	Clip, Grille
7	Divider, Lower Basket
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
11	WP67006380 Whirlpool Screw
12	MAY 67005822
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
18	Hinge, Top
19	MAY 12479901
20	MAY 67006564
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
22	Grille Assembly (Includes Clips) (Black)
24	MAY 67006662
25	Screw (10)
26	MAY 67001068
27	MAY 67001173
28	MAY 67006101
29	67003796 Whirlpool Refrigerator Fiber Acoustic
30	MAY W10164397
31	MAY W10157973
32	SCREW
33	Gasket
34	MAY M0274062
35	67007018 Whirlpool Refrigerator Bottom Hinge PIN
36	Cover, Lw Hinge (Black)
