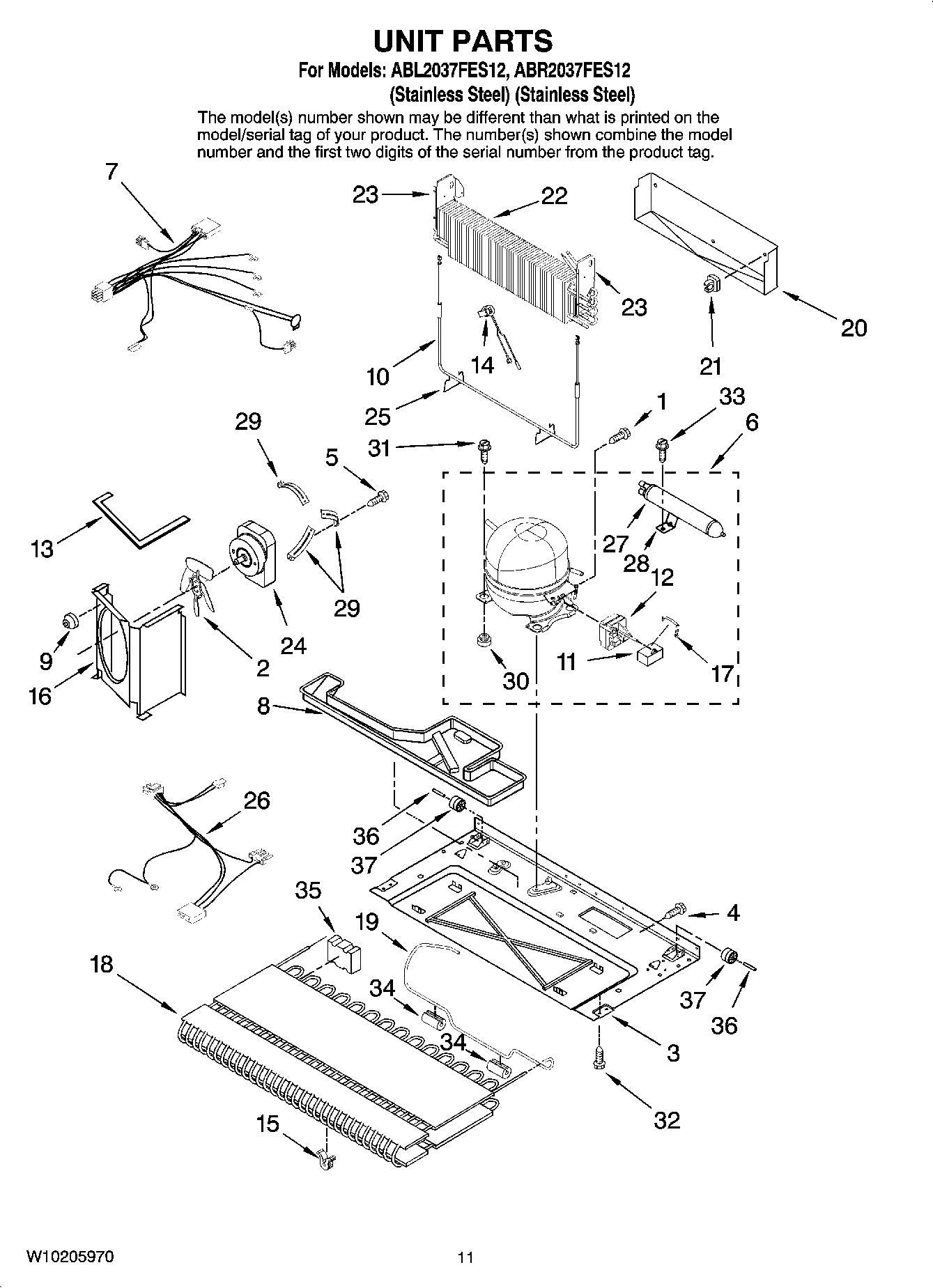

ABL2037FES12 06 – UNIT PARTS

Products

Position	Product
	Valve, Access (3/4“)
	Valve, Access (5/8“)
	Valve, Access (1/2“)
	VALVE, ACCESS (3/8“)
	Valve, Access (5/16“)
	VALVE, ACCESS (1/4“)
	MAY 876764
1	MAY 67006433
2	MAY W10162928
3	MAY 67005889
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR-TPG1370YXA(BM)
7	MAY W10119856
8	WP12579803 Whirlpool Refrigerator Drain Pan
9	GROMMET, BRACKET
10	WP67002493 Whirlpool Refrigerator Defrost Heater
11	Capacitor
12	OVERLOAD/RELAY W/CAPACITOR
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	GROMMET, COND (4)
16	Shroud, Condenser
17	MAY 67007052
18	WP67006131 Whirlpool Refrigerator Condenser
19	MAY 67004700
20	MAY 67002490
21	MAY 10623002
22	MAY 67003720
23A	MAY 67001083
23	MAY 67001084
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	MAY 10547003
29	MAY 67004953
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	MAY 67006432
32	Screw (4)
33	SCREW
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	MAY 67005491
36	67006434 Whirlpool Axle Pin
37	WP67005149 Whirlpool Roller
