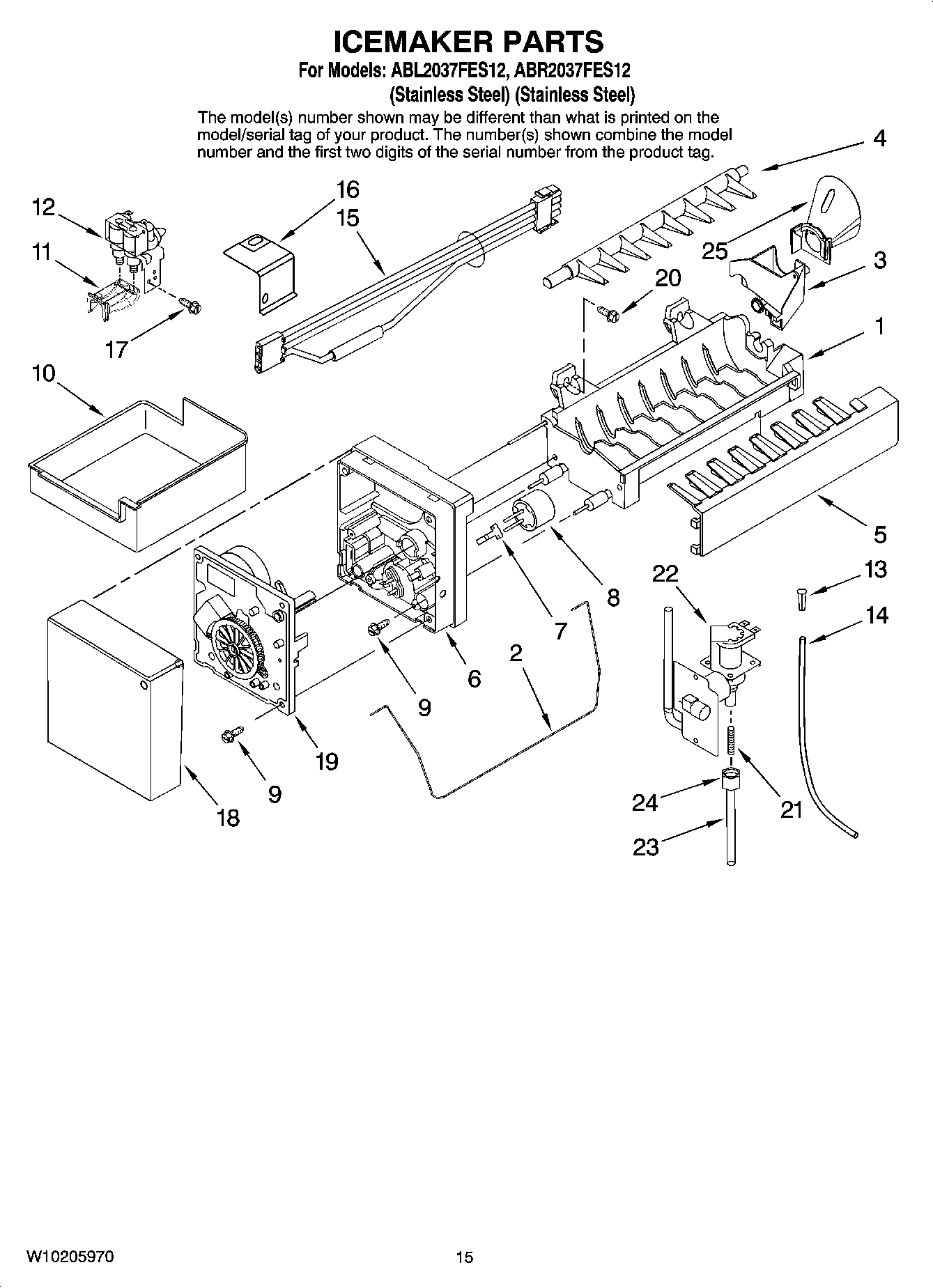

ABL2037FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ABL2037FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ABL2037FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
SEALER, GUM (4 FEET)
STAINLESS STEEL CLEANER & POLISH
PAINT, SPRAY (WHITE PRIMER)
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
D7824706Q Whirlpool Refrigerator Ice Maker Assembly
MAY 479502
MAY 503695
MAY 505587
MAY 542638
PAINT, BULK (1 QT. WHITE (UNCUT))
Refinishing Material (Enamel, Black (1 Qt. Uncut))
MAY 833938
Kit, Evaporator Repair (Aluminum Epoxy)
MAY 542639
PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. WHITE)
PAINT, TOUCH-UP (1/2OZ. BLACK)
MAY 1117510
2ARM-SHUT
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
9SCREW
10WP67001255 Whirlpool Ice Bucket
1112831101 Whirlpool Refrigerator Tube Clamp
12WP67006531 Whirlpool Water Inlet Valve
13MAY A3223101
15MAY W10153408
16BRACKET, MODULE & HEATER
17MAY 67006662
18WPW10289690 Whirlpool Ice Maker Cover
20WP98165 Whirlpool Screw
21SPRING, ANTI KINK
22WP67003753 Whirlpool Refrigerator Inlet Valve
23Tubing, Plastic
24NUT, SLEEVE
25MAY 67005603
100Complete Ice Maker
