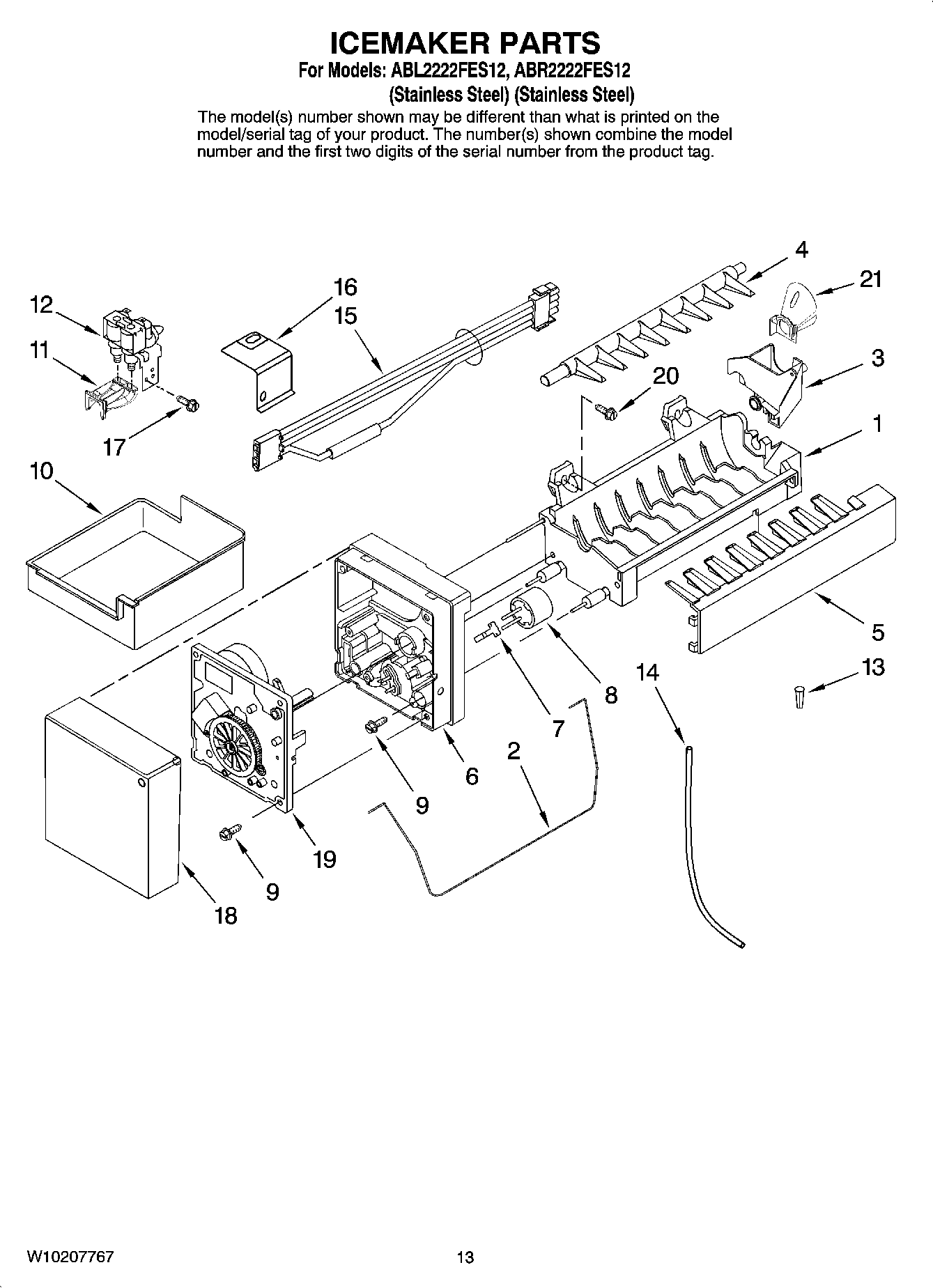

ABL2222FES12 08 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	MAY 479502
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	MAY 542639
NI	Kit, Evaporator Repair (Aluminum Epoxy)
NI	MAY 833938
NI	SEALER, GUM (4 FEET)
NI	MAY 1117510
NI	PAINT, SPRAY (WHITE PRIMER)
NI	Cleaner, Stainless Steel
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
2	ARM-SHUT
3	Cup, Fill
4	MAY 627843
5	MAY 2182124
6	Support & Motor Assembly
7	MAY 2315522
9	Screw (2)
10	WP67001255 Whirlpool Ice Bucket
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67006531 Whirlpool Water Inlet Valve
13	MAY A3223101
14	Tubing, Plastic
15	HARNESS, ICEMAKER
16	MAY 625910
17	MAY 67006662
18	WPW10289690 Whirlpool Ice Maker Cover
20	WP98165 Whirlpool Screw
21	MAY 67005603
100	4396418 Whirlpool Ice Maker
