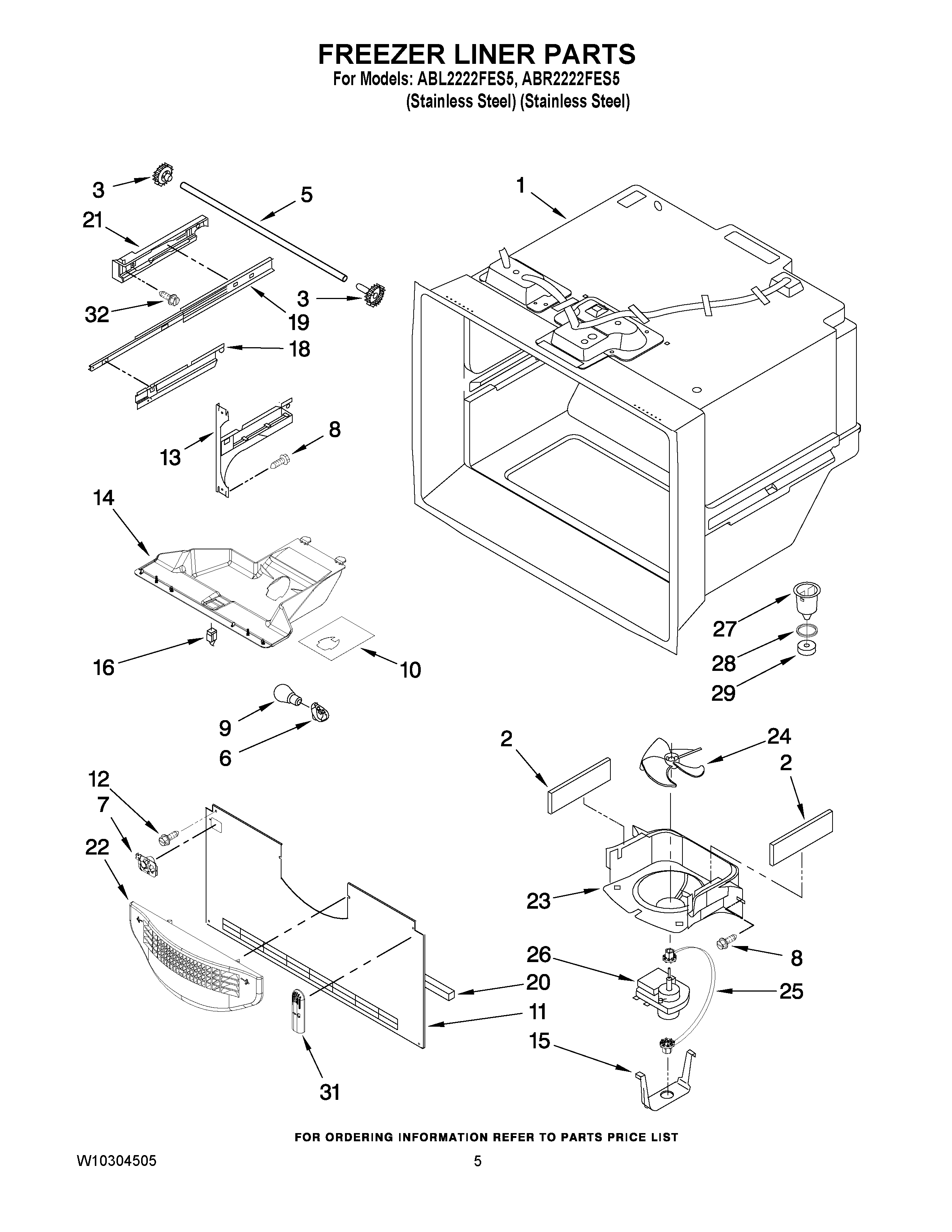

ABL2222FES5 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
5MAY 12812902WD
6Socket, Light
7MAY 12932103
8Screw (8)
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY 12226111
12MAY 12990101
13BRACKET, DOOR (RIGHT)
13BRACKET, DOOR (LEFT)
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18CRADLE-BASKET (RIGHT HAND)
18CRADLE-BASKET (LEFT HAND)
19MAY W10120018
20Gasket, Bottom
21ADAPTER, SIDE (RIGHT)
21ADAPTER, SIDE (LEFT)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
31MAY 12815301
32Screw (6)
