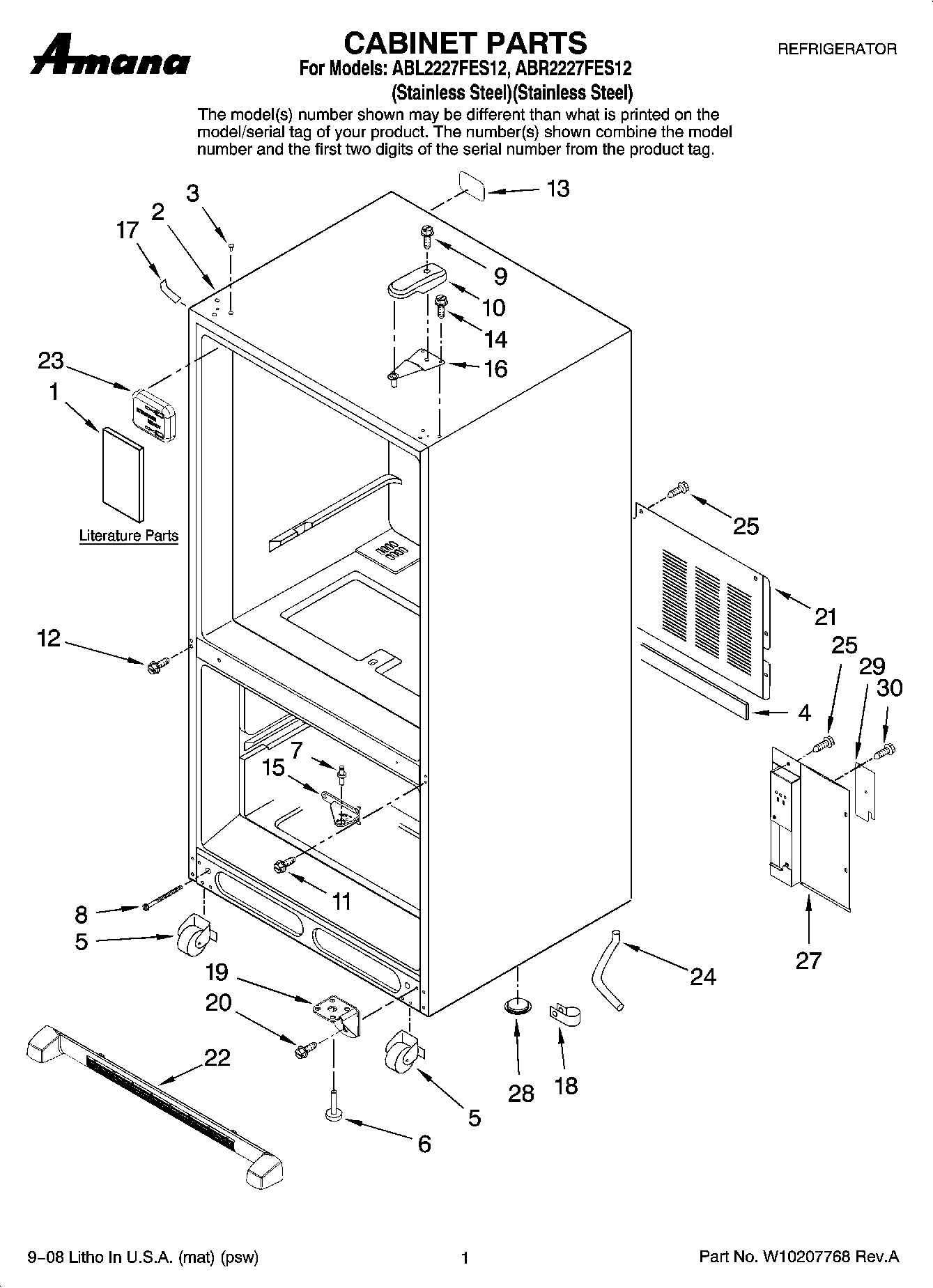

ABL2227FES12 01 – CABINET PARTS

Products

Position	Product
1	MAY W10183258
1	MAY W10165418
1	MAY W10175445
3	MAY M0310731
4	Gasket
5	Roller Assy.(Rear)
6	W11177593 Whirlpool Leveling Feet
7	WP67006642 Whirlpool Refrigerator Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
11	MAY 67005822
12	Screw (8)
13	MAY 67005064
14	WP489349 Whirlpool Refrigerator Screw
15	WP12607104ED Whirlpool Refrigerator Door Hinge
16	Hinge, Top
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
18	MAY W10157973
19	Bracket, Foot
20	MAY 67006564
21	MAY 67006101
22	WPW10534162 Whirlpool Refrigerator Front Grille
23	WP67001098 Whirlpool Refrigerator Tube Cover
24	MAY W10164397
25	Screw (10)
27	MAY 67001097
28	A3076901 Whirlpool Refrigerator Plug
29	MAY 12479901
30	MAY 67006662
