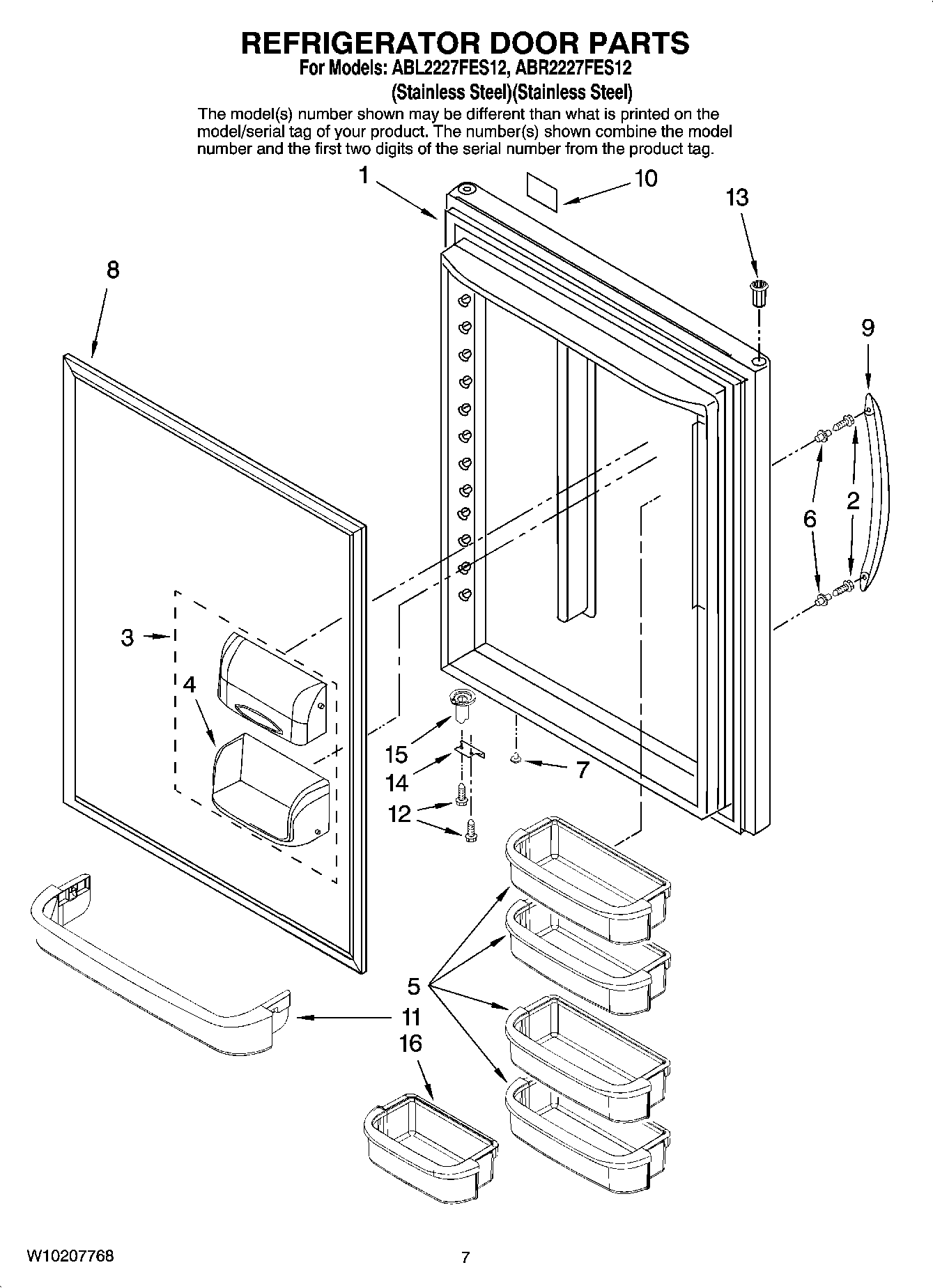

ABL2227FES12 05 – REFRIGERATOR DOOR PARTS

ABL2227FES12 05 – REFRIGERATOR DOOR PARTS

Written by

in

ABL2227FES12 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) (Left, Stainless)
1Refrigerator Door (w/ Insulation) (Right, Stainless)
2WP3387230 Whirlpool Screw
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371193 Whirlpool Refrigerator Door Bin
6WP67006113 Whirlpool Stud Bolt
7MAY W10153326
8GASKET, REF DOOR (BLK)
9Handle (Stainless Steel)
10STAINLESS
1167001019 Whirlpool Door Shelf Trim
12WP98165 Whirlpool Screw
1367004978 Whirlpool Refrigerator Black Door Bushing
14W11708403 Whirlpool Door Stop
15WP67003639 Whirlpool Refrigerator Closer
16MAY 67004469
