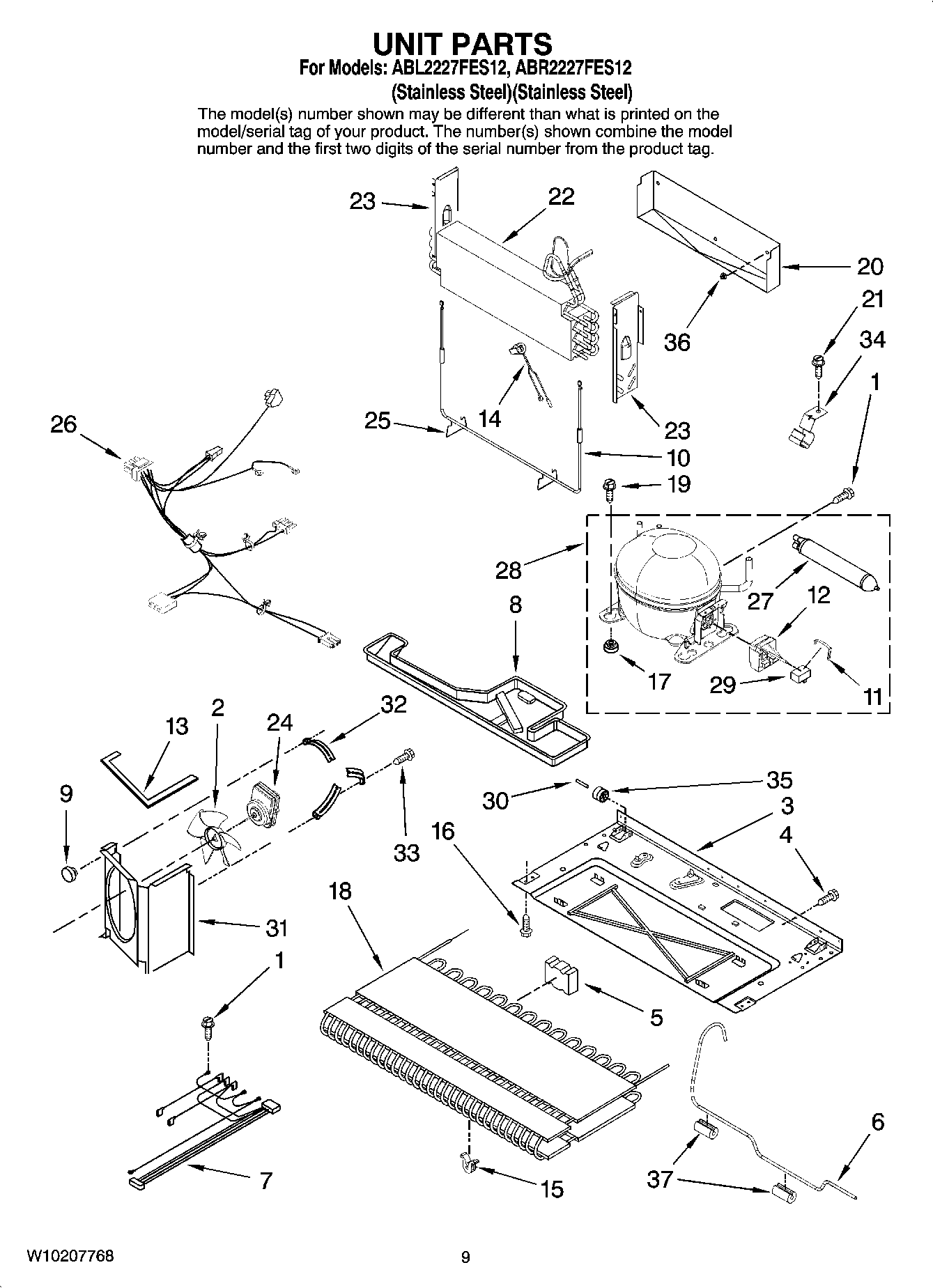

ABL2227FES12 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
1	MAY 67006433
2	MAY W10162928
3	BASEPAN, MACHINE COMPARTMENT
4	Screw (10)
5	MAY 67005491
6	MAY W10167036
7	MAY W10119856
8	Drain Pan
9	GROMMET, BRACKET
10	WP67001794 Whirlpool Refrigerator Defrost Heater
11	MAY W10136415
12	MAY W10136414
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	GROMMET, COND (4)
16	Screw (4)
17	MAY W10169124
18	WP67006132 Whirlpool Refrigerator Condenser
19	MAY 67006432
20	TRAY, DRIP E-CT
21	SCREW
22	MAY 67003719
23	MAY 67001084
23	MAY 67001083
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit (Includes Cord)
27	Drier
28	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
29	Capacitator (Production)
30	67006434 Whirlpool Axle Pin
31	Shroud, Condenser
32	MAY 67004953
33	WP67004954 Whirlpool Refrigerator Screw
34	MAY 10547003
35	WP67005149 Whirlpool Roller
36	MAY 10623002
37	67005680 Whirlpool Refrigerator Condenser Grommet
