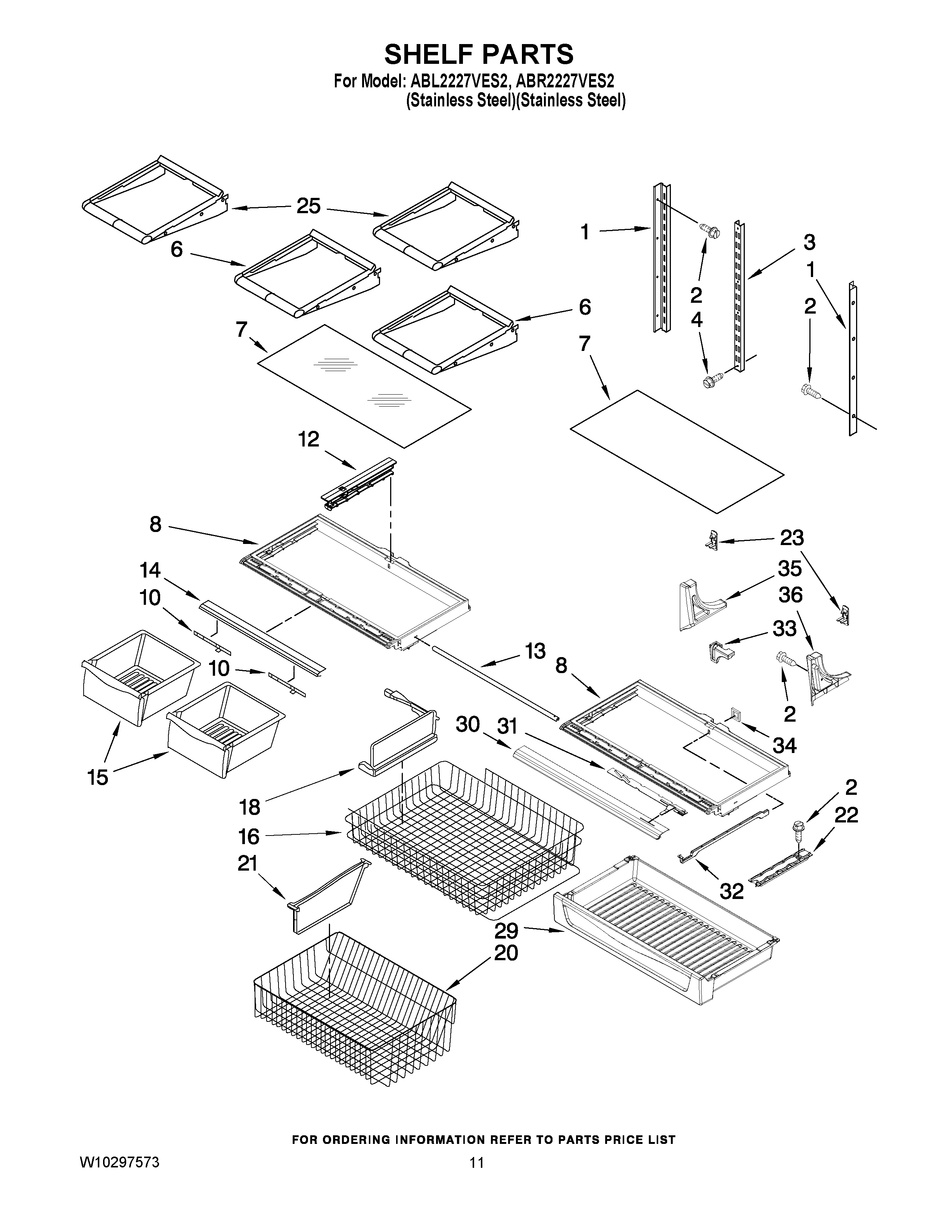

ABL2227VES2 06 – SHELF PARTS – Aparts

ABL2227VES2 06 – SHELF PARTS

Products

Position	Product
1	MAY W10251969
2	MAY 12990513
3	MAY W10273463
4	MAY 12990515
6	MAY 12463509
7	MAY 12204822
8	MAY 12724003KVF
10	MAY 12530805SP
12	Rail, Center Crisper
13	BRACE, CRISPER FRAME
14	MAY W10231341
15	MAY 12724122N
16	Basket, Upper
18	Divider, Upper Basket
20	MAY W10150038
21	DIVIDER-UPPER FZ
22	TRACK, PANTRY
23	HOOK-LADDER (2)
25	MAY 12657848
29	PAN, PANTRY
30	TRIM-PANTRY-FRONT
31	Slide,Pantry
32	MAY 12531401
33	MAY 12531601
34	MAY 12531701
35	SUPPORT-LEFT
36	SUPPORT-RIGHT
