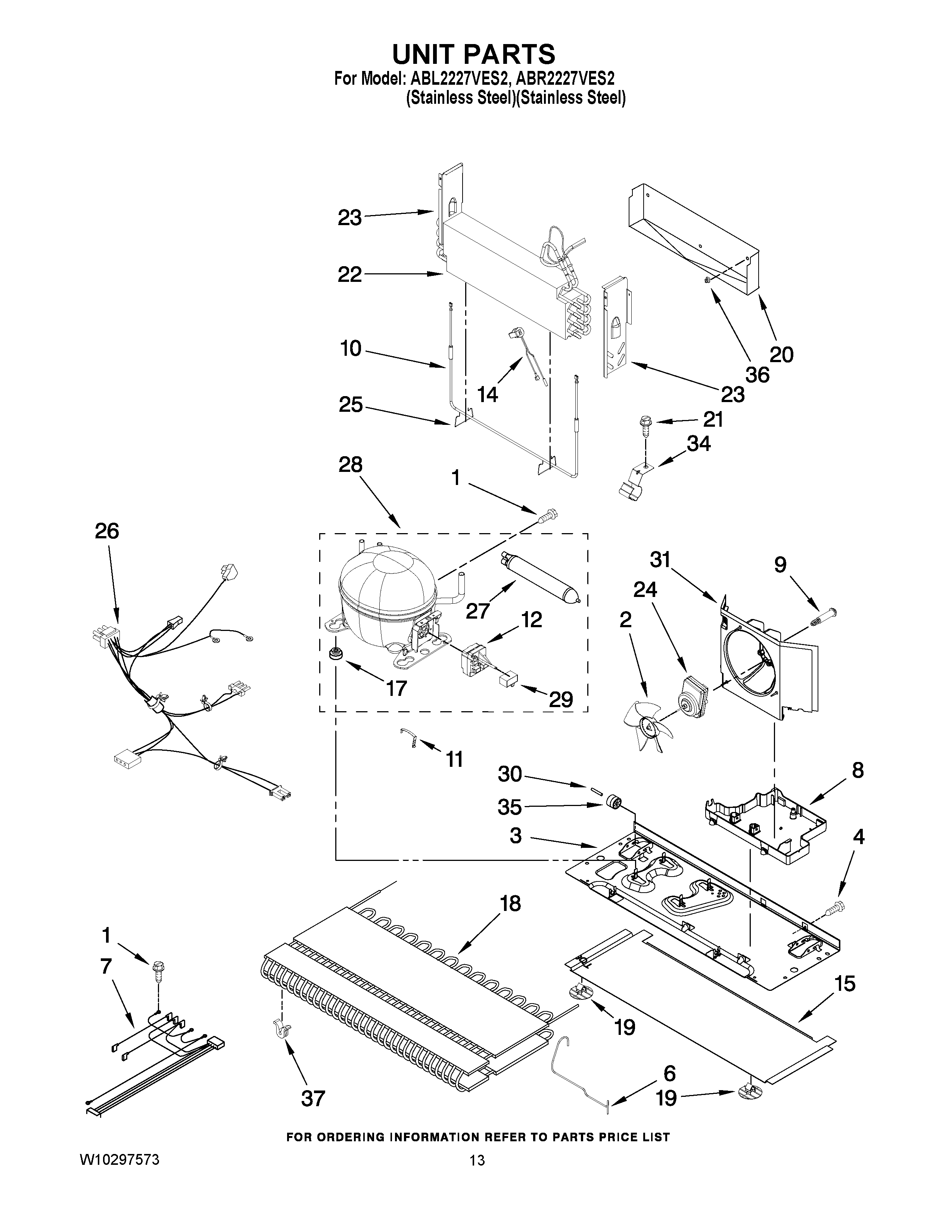

ABL2227VES2 07 – UNIT PARTS

Written by

Products

Position	Product
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210983
4	SCREW (10)
6	MAY W10217745
7	HARNESS, EVAP HEATER
8	Drain Pan
9	MAY W10216919
10	MAY 12729128
11	MAY W10174384
12	START PROTECT, COMBO (PRODUCTION)
12	MAY W10136414
14	Thermostat
15	MAY W10206337
17	Grommet (4)
18	MAY W10135027
19	MAY W10206339
20	MAY 12225402WD
21	MAY 12990701
22	MAY 12726402
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
29	Capacitator (Production)
30	Axle, Roller (2)
31	SHROUD
34	MAY 10547003
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
