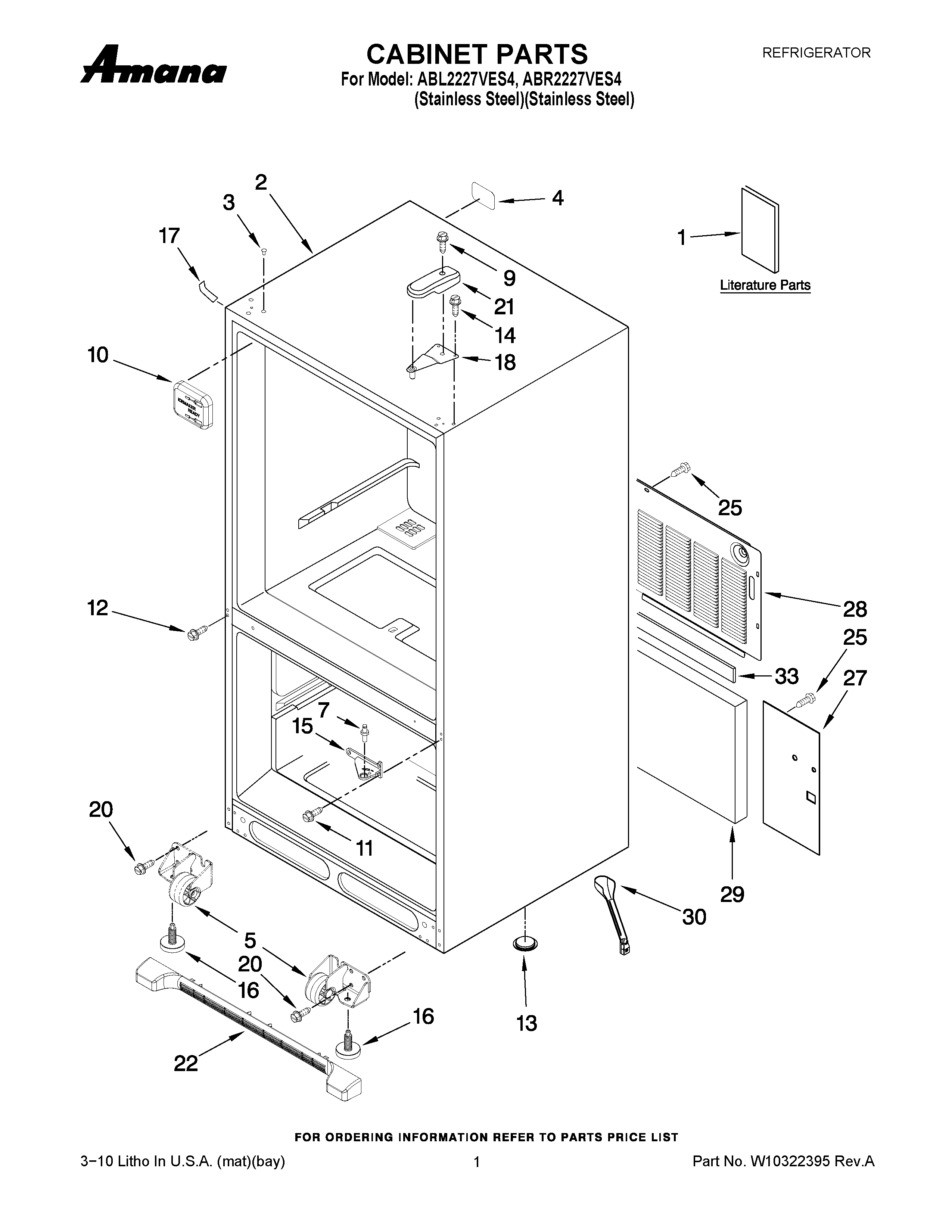

ABL2227VES4 01 – CABINET PARTS

Products

Position	Product
1	MAY W10212713
1	MAY W10308611
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
20	Screw (8)
21	COVER, HINGE(BLACK)
22	MAY W10236196
25	SCREW (10)
27	MAY W10217701
28	MAY W10210979
29	Insulation, Sound
30	MAY W10210988
33	MAY B5759655
